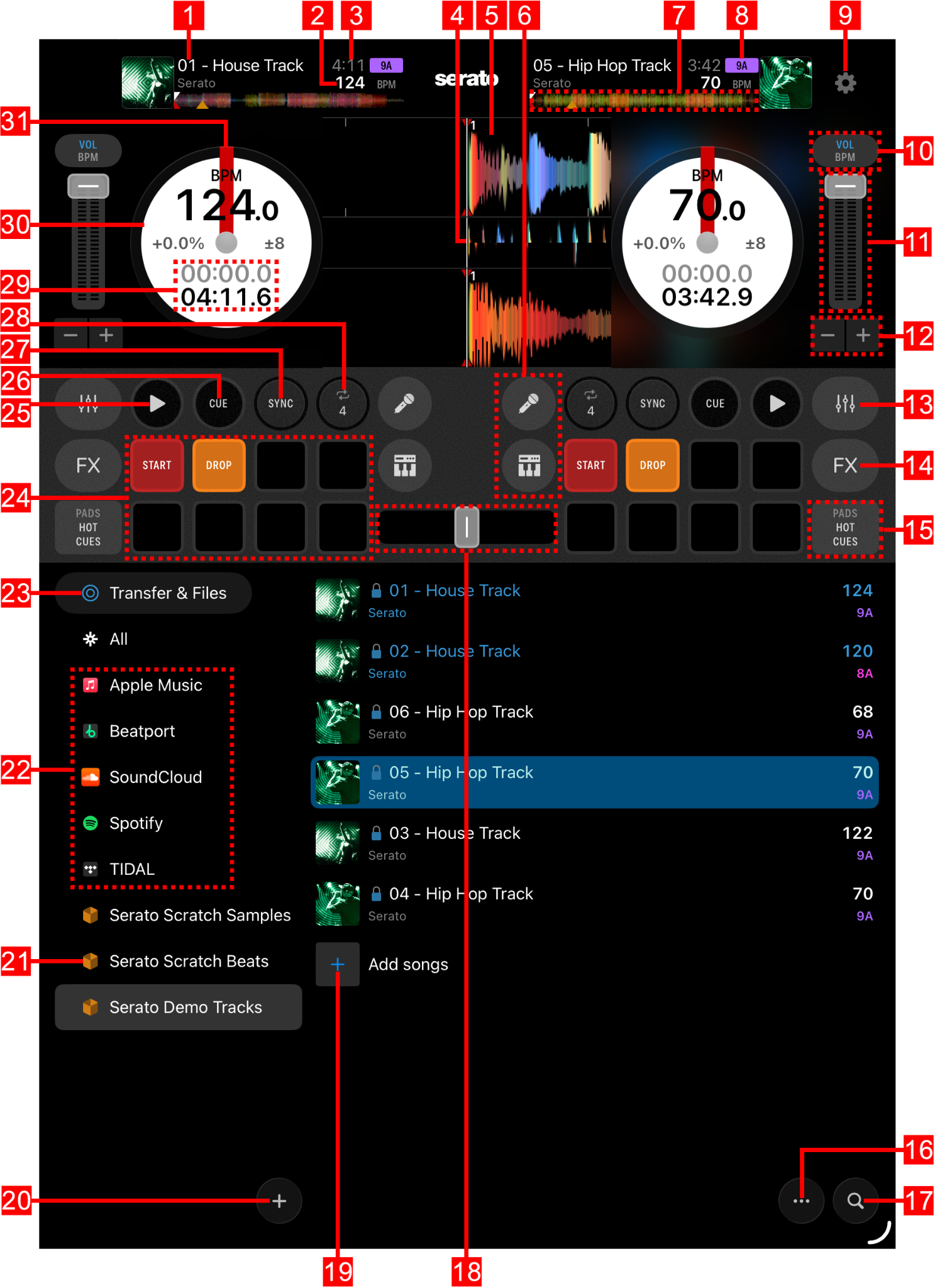

# | Feature | Function |
|---|---|---|
1 | Track Display | Displays song title and artist information for the track currently loaded to deck |
2 | Original BPM | Displays the original BPM of a properly analyzed track regardless of any pitch adjustment that has been made |
3 | Track Duration | Displays currently loaded track duration |
4 | Beat Matching Display | Accentuates the beats in the track |
5 | Waveform | Colored Waveform of the currently loaded track to represent frequencies of the sound |
6 | Acapella / Instrument Stems | Click to toggle and isolate Acapella (vocals) or Instrument Stems on the track loaded to the virtual deck |
7 | Track Overview | Shows an overview waveform of the loaded track |
8 | Musical Key | Displays the key of the currently loaded track. Key tag information can be entered manually in the Kay library column, or detected automatically when track is analyzed with Set Key checked in the Analysis Settings menu. |
9 | Setup | Shows the Software Setup screen |
10 | Volume/BPM Toggle | Toggles the slider between a volume fader and Tempo slider |
11 | Volume/Tempo Slider & Track Output level meter | Use the slider to make volume/tempo adjustments. The VU meter behind allows you to monitor the individual deck outputs visually |
12 | Bend/Nudge +/- | Click to change the tempo momentarily, nudging the loaded track forward or backward in time |
13 | Mixer | - |
14 | FX | Click to open the DJ-FX options |
15 | Performance Pads | - |
17 | Search | Searches your Library or Crate for the text entered in this field |
20 | Add Crate | Adds a new Crate so that you can organize your files |
21 | Crates | Displays a list of Crates, Sub-Crates and Smart Crates available |
22 | Streaming | Displays currently selected streaming provider (NOTE: Only 1 streaming provider can be selected at a time) |
24 | Tab controls | Shows currently selected Tab controls (Cue Point tab controls shown in image) |
27 | Sync | Enables or disables Sync. State for Deck displayed as blue for Beat Sync, gold for Tempo Sync, or for Arm Beat Sync |
28 | Cue Point tab | Displays up to 8 Cue Points per track |
29 | Time Elapsed / Time Remaining | Displays the current elapsed, and remaining time, for the loaded track |
30 | Virtual Deck | Shows playing track information |
31 | Platter position indicator | shows the virtual deck relation to the physical platter position. One full rotation corresponds to one full rotation |
