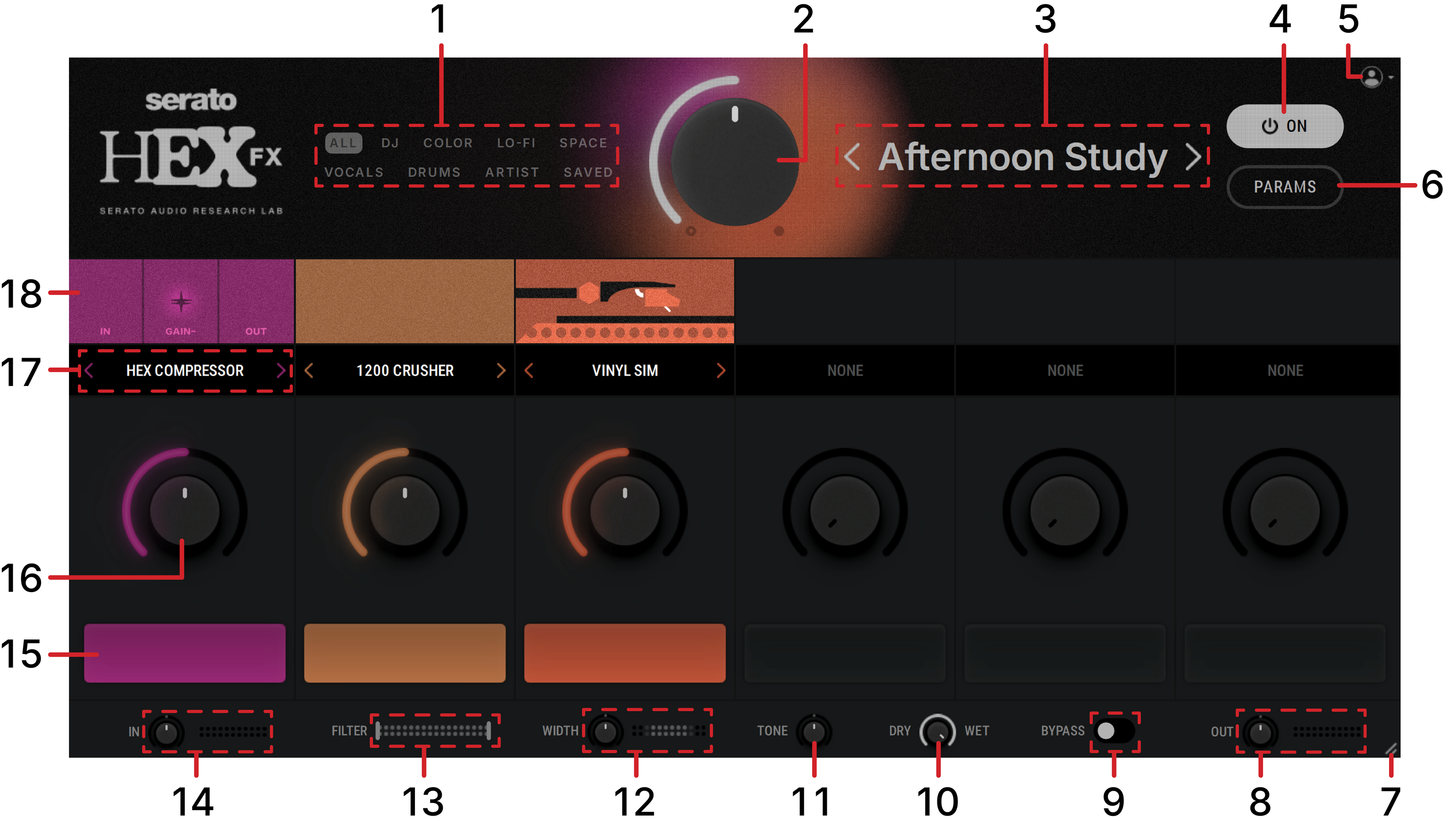

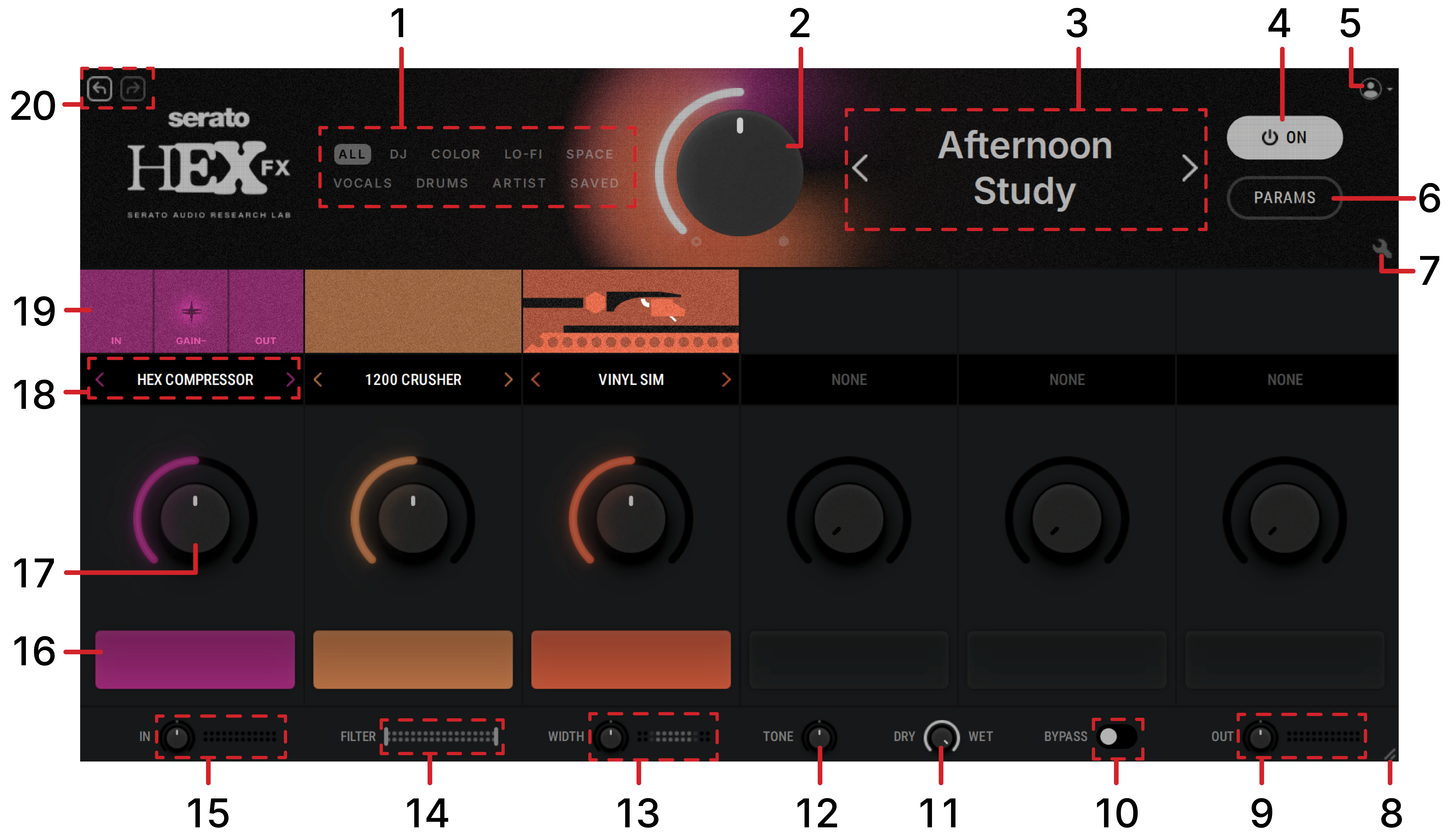

| # | HEX FX CONTROL | FUNCTION |
| 1 | PRESET CATEGORIES | Filter available presets by category |
| 2 | HEX DIAL | Adjust all linked Effect Slot knobs and Effect Parameters on a macro level |
| 3 | PRESET SELECTOR | Select filtered preset, open preset browser, or mouse-over to access preset controls |
| 4 | PRESET ON | Toggle all linked, activated effect units on/off |
| 5 | ACCOUNT MENU | Toggle Account Menu drop-down |
| 6 | PARAMS | Toggle Effect Parameters on/off |
| 7 | RESIZE HANDLE | Click and drag to resize plugin window |
| 8 | OUT | Adjust output gain |
| 9 | BYPASS | Click to toggle bypass of plug-in processing |
| 10 | DRY/WET | Adjust amount of affected wet signal |
| 11 | TONE | Adjust tone |
| 12 | WIDTH | Adjust stereo width |
| 13 | FILTER | Adjust lower & upper frequency cutoff |
| 14 | IN | Adjust input gain |
| 15 | EFFECT SLOT ON/OFF | Press to turn Effect Slot on/off |
| 16 | EFFECT SLOT KNOB | Turn left to decrease effect applied, or turn right to increase effect applied |
| 17 | EFFECT SLOT SELECTOR | Select Effect Slot type or reveal Effect Slot drop-down |
| 18 | EFFECT SLOT VISUALIZATION | Displays effect visualization |
