Preset Knob

The large Hex Dial in Hex FX is a macro control that is linked to each of the Effect Slot Knobs by default and turning it also turns each of those Effect Slot Knobs and any linked Effect Parameter controls, to create a single control point for the chained FX in your preset.

When the Hex Dial is increased, the intensity of the effects applied in your overall preset is increased, and if decreased, those same preset effects are decreased. The color and visualization emanating from the Hex Dial changes when moved, to help visually convey the changes occurring.

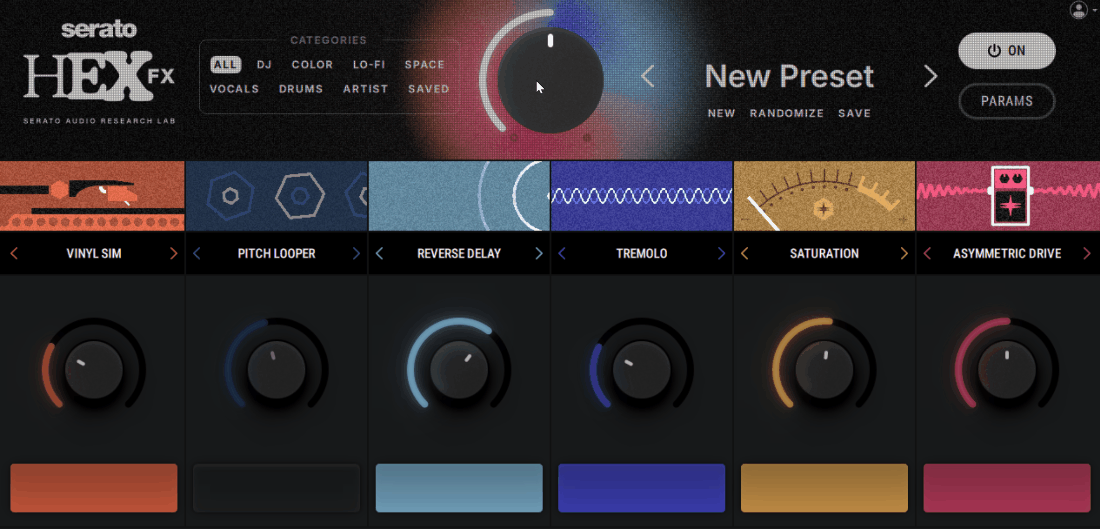

Double-click the Hex Dial to reset it, and any linked Effect Slot Knobs to their default value:

Parameter On & Effect Parameters

Click the global ON button to toggle all linked Effect Slots on or off:

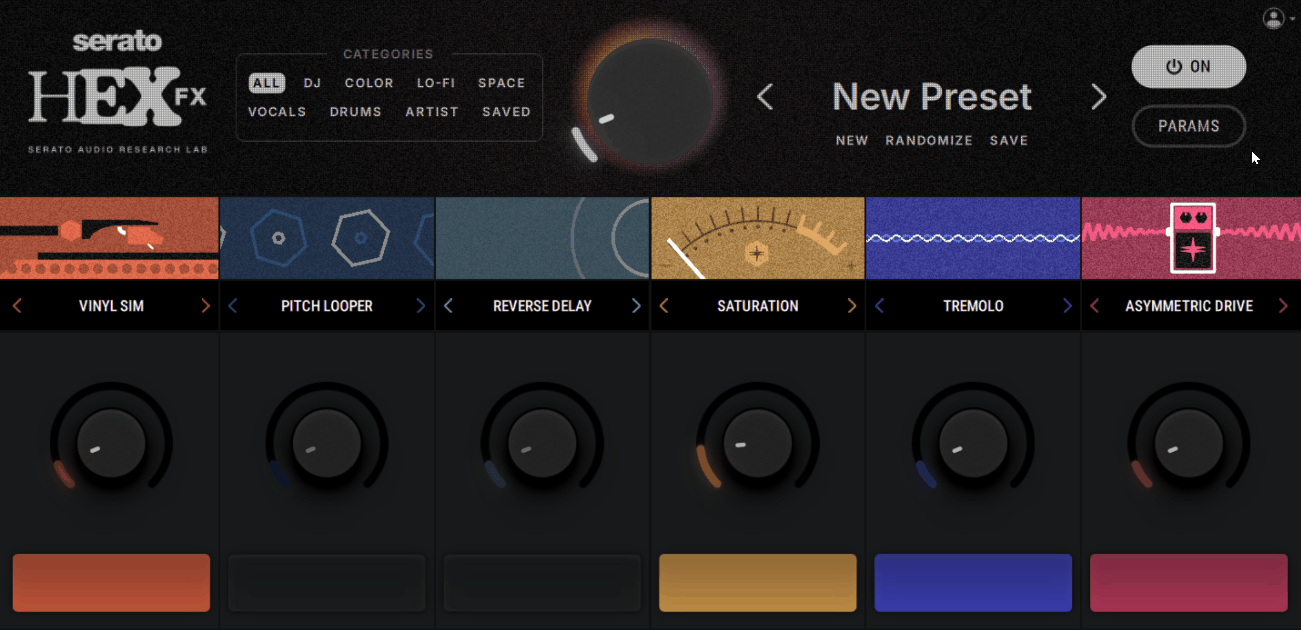

Click the PARAMS button to reveal individual Effect Parameters for all Effect Slots:

Effect Slots

The 6 Effect Slots process signal from left-to-right, and each one contains the following items:

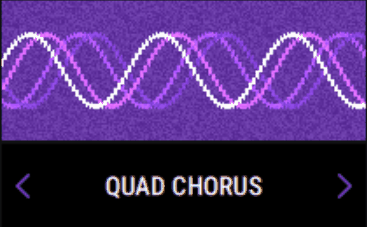

• The Effect Slot visualization changes based on manipulation of the Effect Slot Knob and Hex Dial:

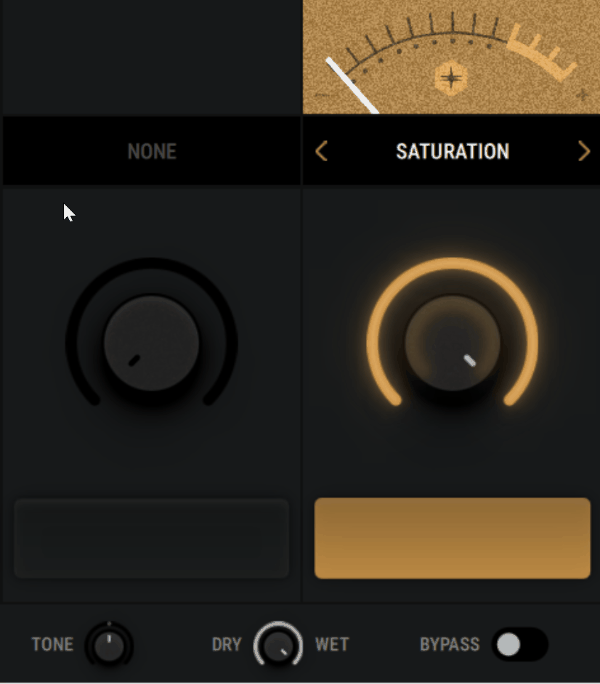

• The Effect Slot selector is used to change the effect type by clicking on the title and selecting from the drop-down, or by clicking the arrows (< & >) to the left & right of the Effect Slot title:

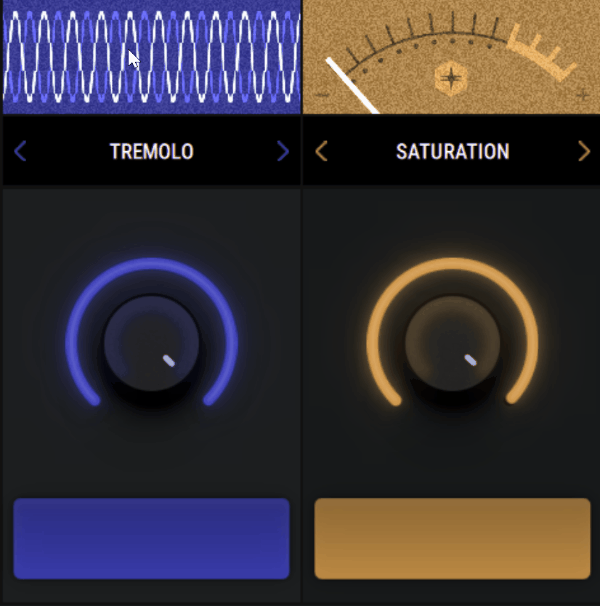

• Reorder Effect Slots by clicking and dragging the title or visualization and then dropping one effect on top of another, which changes processing of audio based on the sequence of applied effects:

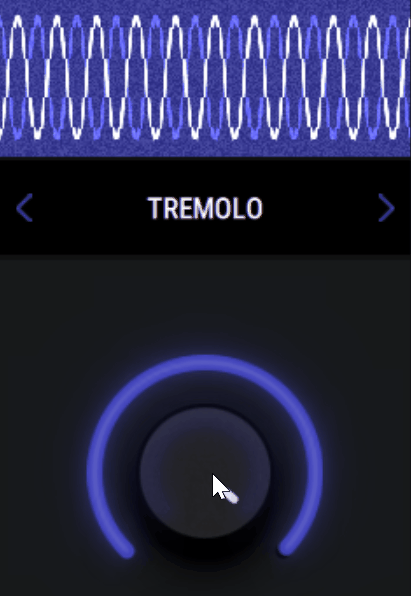

• Turn the Effect Slot Knob to increase the amount of the specific effect that is applied to the signal. Double-clicking the knob will reset it to its default value:

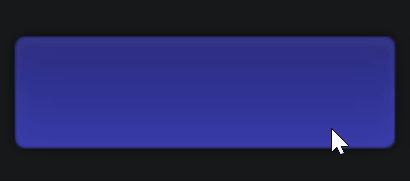

• Click the Effect Slot On/Off button to turn the individual Effect Slot on or off:
