Setup
Licensing & software
This is a Serato DJ Lite hardware unlocked device, meaning it unlocks Serato DJ Lite when connected.
It is also a paid upgrade to Serato DJ Pro device, meaning it requires the purchase & activation of a Serato DJ Pro license, in order to be used with Serato DJ Pro.
Please ensure you have the latest version of Serato DJ Lite installed:
You can also try Serato DJ Pro, before making a purchase:
Drivers & firmware
The Hercules DJControl Inpulse 500 requires manufacturer-specific drivers on both Mac & Windows operating systems.
Before using Serato DJ Pro, please download and install the driver, from Hercules’ website, here.
Once the driver is installed, simply launch & activate the latest version of Serato DJ Pro and connect your Hercules device using the USB connection.
Overview
|
# |
DJCONTROL INPULSE 500 CONTROL | FUNCTION | SHIFT FUNCTION |
| 1 | SLIP | - |
- |
| 2 | QUANTIZE | Toggle Quantize (per deck) | Toggle tempo range |
| 3 | MIC SECTION |
MIC level/MIC Hi & Low EQ. MIC level will light up in green when input volume clips/distorts |
- |
| 4 | CHANNEL GAIN/EQ | Adjust Hi/Mid/Low EQ & gain per channel | - |
| 5 | LOAD | Load selected track to deck (per deck). Double press to Instant Double | - |
| 6 | BROWSE | Turn to scroll Library. Press in to toggle forward between Library & Crate list. Library knob exterior will pulse to the beat of playing track | - |
| 7 | ASSISTANT | - | - |
| 8 | CHANNEL METER | Monitor level of playing channels | - |
| 9 | MASTER SECTION | Adjust Master Level, monitor Master Level, & Toggle Master Cue | - |
| 10 | SYNC | Toggle SYNC on per deck | Toggle SYNC off per deck |
| 11 | BEAT ALIGN | Move jog wheel/platter forward (FWD) or in reverse (REV) to align beatgrid, as the corresponding arrow lights up. ‘BEAT ALIGN’ will light up in green when beatgrid is aligned. NOTE: This feature relies on accurate beatgrids. |
- |
| 12 | TEMPO MATCH | Move tempo slider up (-) or down (+) when corresponding arrow lights up. ‘TEMPO’ will light up in green when the tempo is matched. NOTE: This feature relies on accurate BPM. |
- |
| 13 | TEMPO SLIDER | Adjust tempo/pitch per deck | Ignore tempo/pitch adjustment per deck |
| 14 | PLAY / PAUSE | Toggle Play / Pause per deck | Stutter Play |
| 15 | HEADPHONES SECTION | Adjust headphone level and mix | - |
| 16 | CHANNEL CUE | Press per channel to cue for monitoring in headphones | - |
| 17 | CROSSFADER CURVE | Toggle crossfader curve type | - |
| 18 | CROSSFADER | Crossfade audio between channels A & B | - |
| 19 | BEATMATCH GUIDE | Toggle BEAT ALIGN & TEMPO MATCH features on / off | - |
| 20 | CHANNEL FADER | Adjust channel volume | - |
| 21 | FILTER FX SECTION | Apply low pass or high pass filter per deck, toggle FX SEE FX SECTION FOR MORE INFORMATION |
- |
| 22 | AUX SECTION | Adjust AUX volume / Adjust AUX high pass & low pass filter | - |
| 23 | PERFORMANCE PADS | SEE PERFORMANCE PADS SECTION FOR MORE INFORMATION | - |
| 24 | CUE | Set Temp Cue point / Cue from set Temp Cue point | Load previous track to deck |
| 25 | SHIFT | Use in conjunction with other controls as modifier | - |
| 26 | OUT | Set Loop Out point / Edit Loop Out point | Parameter right |
| 27 | IN | Set Loop In point / Edit Loop In point. Press and hold to toggle 4 beat autoloop | Parameter left |
| 28 | AUTOLOOP | Press in to toggle autoloop, turn left to halve loop length, turn right to double loop length | - |
| 29 | JOG WHEEL | Control waveform within Serato DJ Lite in vinyl mode, or pitch bend with vinyl mode off | Fast waveform scroll in vinyl mode / aggressive pitch bend in vinyl mode off |
| 30 | VINYL | Toggle vinyl mode per deck | - |

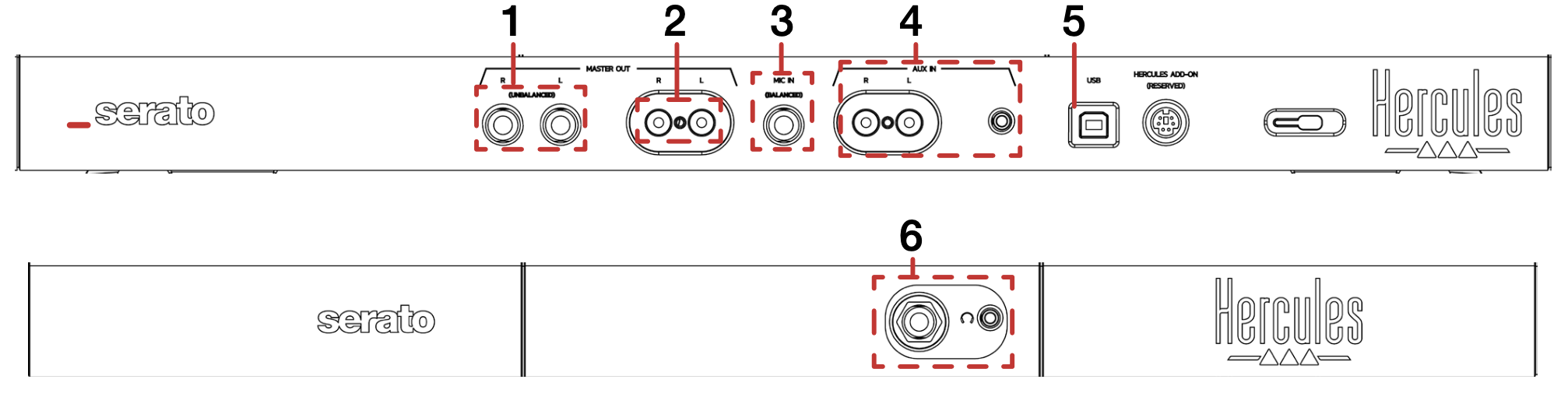

| # | DJCONTROL INPULSE 500 CONTROL | FUNCTION |
| 1 | MASTER OUT (UNBALANCED) | TRS or 1/4” master output (unbalanced) |
| 2 | MASTER OUT (RCA) | RCA master output |
| 3 | MIC IN (BALANCED) | Microphone TRS or 1/4” input (balanced) |
| 4 | AUX IN | Auxiliary RCA & mini-jack or 1/8” input |
| 5 | USB | Connect PC via USB connection |
| 6 | HEADPHONES | 1/4” & 1/8” headphone output |

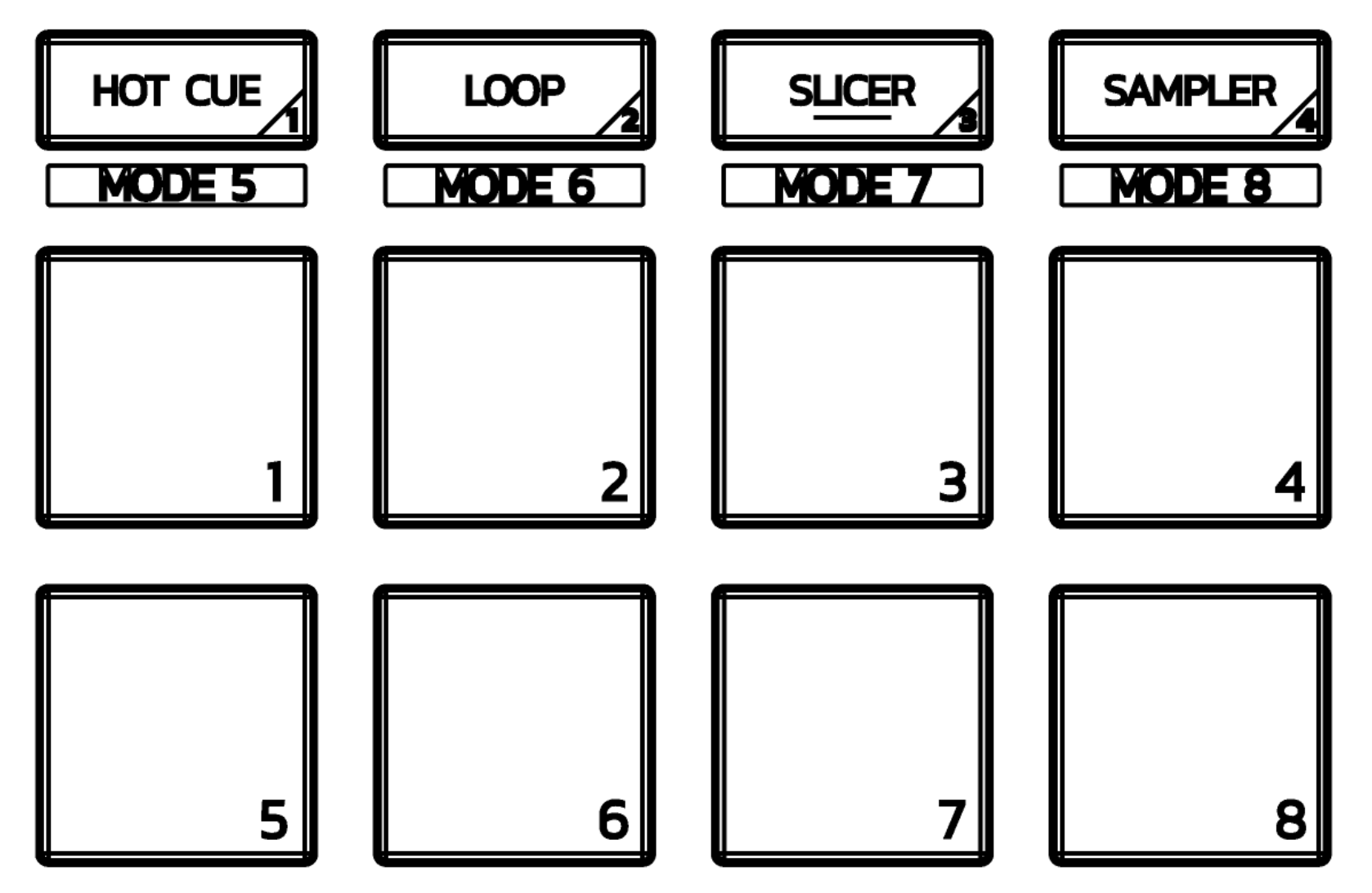

Performance Pads
The Hercules DJControl Inpulse 500 comes with 8 RGB performance pads, that can be used across 4
different performance pad modes.
NOTE: In all 4 pad modes, pad 5 toggles reverse play on and off for the playing deck, pad 6 can be pressed and held to toggle rewind, pad 7, when held, toggles fast forward, and pad 8 toggles censor.
HOT CUE mode: Press the HOT CUE pad mode button to enter HOT CUE mode. Pads 1-4 trigger Serato DJ Lite Cue points. If no Cue point is present on that slot/pad, pressing that pad will set one. Holding SHIFT while pressing a pad will clear the Cue point from that pad/slot.
MANUAL LOOP mode: Press the LOOP pad mode button to enter MANUAL LOOP mode. In this mode, press pad 1 to set or edit the Loop In point, pad 2 to set or edit the Loop Out point, pad 3 to turn the loop on or off, and pad 4 to loop.
AUTOLOOP mode: Press the SLICER pad mode button to enter AUTOLOOP mode. In this mode, pressing pads 1-4 activates an autoloop of varying sizes. Press the same pad again to exit the autoloop.
SAMPLER mode: Press the SAMPLER pad mode button to enter SAMPLER mode. Press pads 1-4 to trigger samples loaded into the Serato DJ Lite Sampler. Hold SHIFT while pressing a pad to stop the sample playback once triggered, or load a sample to the respective Sampler slot if no sample is loaded.
DJ-FX
The FX panel button is displayed in the top left area of the main Serato DJ Lite screen, click on this to toggle the DJ-FX panel.
With the DJ-FX panel open, you have control of two DJ-FX units, and if your hardware supports it, Channel FX, which can be applied to tracks played through your connected Serato DJ-hardware.
Both DJ-FX & Channel FX can be controlled with your mouse or by using dedicated controls on your hardware (where available).
Learn more about how to use DJ-FX & Channel FX:

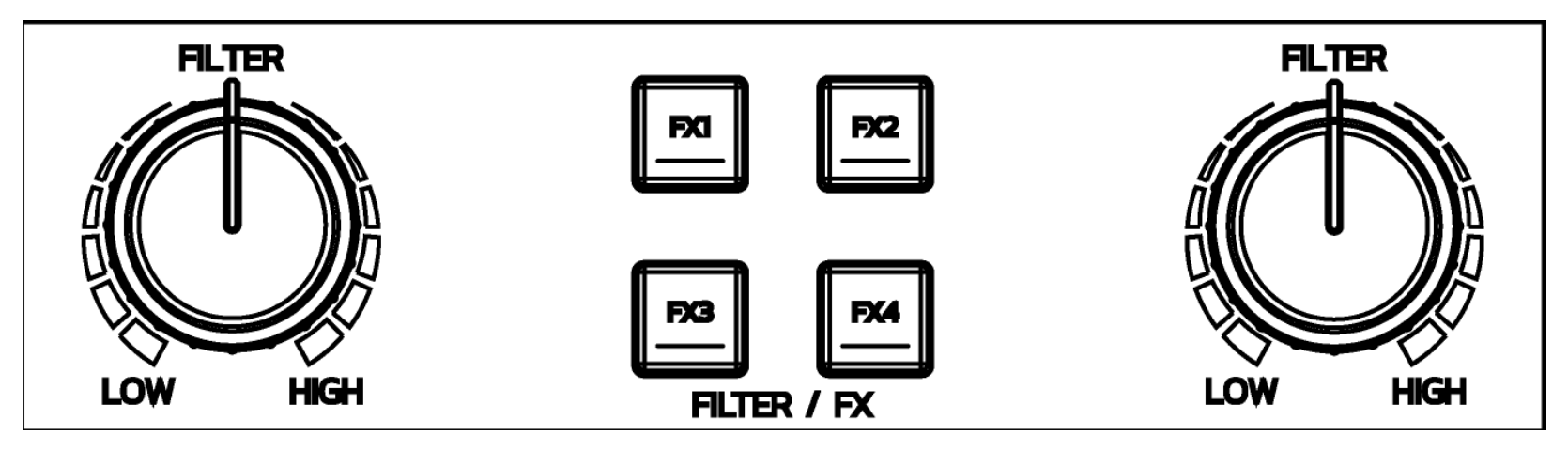

| DJCONTROL INPULSE 500 CONTROL | FX FUNCTION |
| FILTER | Increase selected FX depth by turning the knob left or right from neutral position (middle) |
| FX1 | Arm FX slot 1 |
| FX2 | Arm FX slot 2 |
| FX3 | Arm FX slot 3 |
| FX4 | Toggle the Beat multiplier value adjustment. Once toggled, use the respective Filter control to decrease (left) or increase (right) the value. Return to the neutral position (middle) to reset to 1 beat value. |

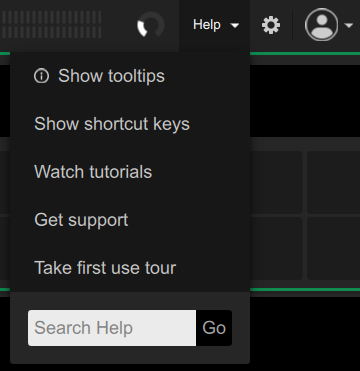

Help
Show Tooltips
Click on the Help button in the upper right-hand corner of Serato DJ Lite, then Show Tooltips to enable Tooltips. Tooltips provide a handy way to learn the various features of Serato DJ Lite.
Move the mouse over a section of the software to bring up a context-sensitive tooltip that describes the feature.
Click on the Help button again to turn off Tooltips.
Show Shortcut Keys
Click on the Help button in the upper right-hand corner of Serato DJ Lite, then click Show Shortcut Keys to launch a pop-up window displaying shortcut keyboard combinations.
These shortcuts can help you perform various actions quickly, such as triggering specific deck functions, controlling playback, or navigating the library.
Watch Tutorials
Click on the Help button in the upper right-hand corner of Serato DJ Lite, then Watch Tutorials to launch
your default internet browser and watch tutorials to help you get familiar with Serato DJ Lite.
Get Support
Click on the Help button in the upper right-hand corner of Serato DJ Lite, then Get Support to launch your default internet browser and navigate to the Serato DJ Lite knowledge base, where you can find helpful articles and guides on Serato DJ Lite. Alternatively, type keywords in the Search Help box to search the Serato DJ Lite knowledge base for specific, related topics.
