Licensing & software
This is a Serato DJ Lite hardware unlocked device, meaning it unlocks Serato DJ Lite when connected.
It is also a paid upgrade to Serato DJ Pro device, meaning it requires the purchase & activation of a Serato DJ Pro license, in order to be used with Serato DJ Pro.
Please ensure you have the latest version of Serato DJ Lite installed:
You can also try Serato DJ Pro, before making a purchase:
Drivers & firmware
The Roland DJ-202 requires drivers for both Windows and MacOS operating systems.
Please ensure you have the latest available drivers and firmware updates, which are vital for compatibility with Serato DJ Pro.
These can be found on Roland’s website on the DJ-202 hardware page here: https://www.roland.com/us/products/dj-202/downloads/
Overview
|
# |
DJ-202 CONTROL | FUNCTION |
| 1 | HEADPHONES | 1/4” headphone output |
| 2 | USB | Connect USB to your computer |
| 3 | MIDI OUT | MIDI Output |
| 4 | MASTER OUT | RCA Master Output |
| 5 | MIC IN | 1/4” Microphone input |
| 6 | MIC SENSITIVITY | Adjust Microphone input sensitivity |
| 7 | KENSINGTON LOCK | Connect Kensington Lock |
|
# |
DJ-202 CONTROL | FUNCTION | SHIFT FUNCTION |
| 1 | BEATS | Adjust Beats Multiplier/Reset Beat Multiplier | - |
| 2 | FX 1-3 | DJ-FX slot 1-3 Effect On/Off/Adjust Slot 1-3 FX Parameter | Slot 1-3 Select Effect |
| 3 | TAP TEMPO | Tap to the desired FX tempo. To return to AUTO mode, press and hold. | - |
| 4 | TEMPO SLIDER | Adjusts tempo/pitch | Ignore tempo/pitch adjustment |
| 5 | CHANNEL EQ | Channel EQ controls | - |
| 6 | CHANNEL TRIM | Channel gain | - |
| 7 | LOAD | Load highlighted track to deck | Sort library by BPM |
| 8 | HEADPHONE LEVEL | Adjusts the headphone output level | - |
| 9 | HEADPHONE MIX | Library scroll | Fast Library scroll |
| 10 | MASTER OUTPUT | Adjusts Master volume for controller | Toggle through Serato DJ areas |
| 11 | BROWSER KNOB | Library scroll / Library Forward [Press] | Library back [Shift + Press] |
| 12 | LOAD | Load highlighted track to deck | Sort library by Song |
| 13 | DECK | Toggle between decks 1/2 and 3/4 | - |
| 14 | KEYLOCK | Enable Keylock | Cycle through Tempo Range |
| 15 | PARAMETER 1/2 | Adjusts Parameter 1 in Performance Pad Modes | Adjusts Parameter 2 in Performance Pad Modes |
| 16 | PERFORMANCE PADS | SEE PERFORMANCE PADS FOR MORE INFORMATION | - |
| 17 | CUE | Cues from temp cue point/Set Temp Cue point | Load previous track to deck |
| 18 | CHANNEL FADER | Channel Volume | Channel fader start |
| 19 | SAMPLER LEVEL | Adjusts the Sampler output level | - |
| 20 | CROSSFADER | Crossfade audio between channel A-B | - |
| 21 | SEQUENCER CONTROLS | Sync , Start/Stop | Sync off, tempo tap |
| 22 | CUE | Cues Sampler for headphone monitoring | - |
| 23 | PLAY/PAUSE | Toggles Play/Pause on selected deck | Stutter Play |
| 24 | CUE | Cues from temp cue point / Set Temp Cue point | Loads previous track |
| 25 | SYNC | Turns SYNC on | Turns SYNC off |
| 26 | SHIFT | Used with other controls that have SHIFT modifier functions | - |
| 27 | PLATTER/JOG WHEEL | Control waveform within Serato DJ | - |
| 28 | JOG MODE | Set Platter Jog Mode | Slip mode |
Performance Pads
The Roland DJ-202 RGB performance pads have 4 different modes you can select.
These are (from left-to-right); Hot Cue, Auto Loop, Sampler and Sequencer.
In each of these modes pads 1-4 control each mode’s functions, while pads 5-8 control loop functions.
- Hot Cue mode: Pads 1-4 will trigger 4 Cue Points. Holding SHIFT and pressing buttons 1-4 will delete the Cue Points.
Pads 5-8 will control (from left-to-right) Loop In, Loop Out, Exit and On/Off. - Auto Loop mode: Pads 1-4 will trigger 4 Auto Loops. Pads 5-8 will control (from left-to-right) Loop In, Loop Out, Exit and On/Off.
- Sequencer mode: Please see TR-S SEQUENCER section for more information.
- Sampler mode: Pads 1-4 will trigger 4 Samples. Pads 5-8 will control (from left-to-right) Loop In, Loop Out, Exit and On/Off.
Looping
You have a choice between either manual or auto loops. You can also halve or double the loop length in either manual or auto modes.
|
DJ-202 CONTROL |
FUNCTION | SHIFT |
| AUTOLOOP | Autoloop On/Off | Activate selected loop |
| 1/2X | Halve Loop Length | Loop Shift Left |
| 2X | Double Loop Length | Loop Shift Right |
| IN | Set loop in point (Loop not active)/Adjust loop in point (Loop active) | Saved Loop slot select |
| OUT | Set loop out point (Loop in point set)/Adjust loop out point (Loop active) | Loop Exit (Loop active)/ Reloop (Loop not active) |
NOTE: You can also save a loop to the next available free loop slot in the software. To do this, click the + icon (pictured below) on an available loop slot. Your loops are saved to the file and recalled the next time it is loaded. They are not lost if the file is moved or renamed.
TR-S Sequencer
The TR-S built-into the DJ-202 is designed to be used with Serato DJ Lite and can be synchronized with the virtual decks. It can also be used to sequence samples from Serato DJ Lite’s built-in Sampler.
There are two TR modes available on the DJ-202:
- TR Record (TR-REC) / Sequence mode
- Instrument Record (INST-REC) mode
For more information about these modes please click on the following link to view an article on our knowledge base: Using the Roland DJ-202 TR-S Sequencer
DJ-FX
The FX panel button is displayed in the top left area of the main Serato DJ Lite screen, click on this to toggle the DJ-FX panel.
With the DJ-FX panel open, you have control of two DJ-FX units, and if your hardware supports it, Channel FX, which can be applied to tracks played through your connected Serato DJ-hardware.
Both DJ-FX & Channel FX can be controlled with your mouse or by using dedicated controls on your hardware (where available).
Learn more about how to use DJ-FX & Channel FX:
|
DJ-202 CONTROL |
FX FUNCTION | SHIFT |
| FX LEVEL | Adjust FX Depth | Beats multiplier |
| FX 1 | Slot 1 Effect On/Off | Slot 1 Select Effect |
| FX 2 | Slot 2 Effect On/Off | Slot 2 Select Effect |
| FX 3 | Slot 3 Effect On/Off | Slot 3 Select Effect |
| TAP | Tap to the desired FX tempo. To return to AUTO mode, press and hold |
- |

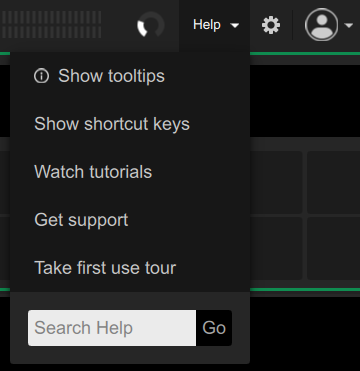

Help
Show Tooltips
Click on the Help button in the upper right-hand corner of Serato DJ Lite, then Show Tooltips to enable Tooltips. Tooltips provide a handy way to learn the various features of Serato DJ Lite.
Move the mouse over a section of the software to bring up a context-sensitive tooltip that describes the feature.
Click on the Help button again to turn off Tooltips.
Show Shortcut Keys
Click on the Help button in the upper right-hand corner of Serato DJ Lite, then click Show Shortcut Keys to launch a pop-up window displaying shortcut keyboard combinations.
These shortcuts can help you perform various actions quickly, such as triggering specific deck functions, controlling playback, or navigating the library.
Watch Tutorials
Click on the Help button in the upper right-hand corner of Serato DJ Lite, then Watch Tutorials to launch
your default internet browser and watch tutorials to help you get familiar with Serato DJ Lite.
Get Support
Click on the Help button in the upper right-hand corner of Serato DJ Lite, then Get Support to launch your default internet browser and navigate to the Serato DJ Lite knowledge base, where you can find helpful articles and guides on Serato DJ Lite. Alternatively, type keywords in the Search Help box to search the Serato DJ Lite knowledge base for specific, related topics.
