Setup
Licensing & software
This is a Serato DJ Lite hardware unlocked device, meaning it unlocks Serato DJ Lite when connected.
It is also a paid upgrade to Serato DJ Pro device, meaning it requires the purchase & activation of a Serato DJ Pro license, in order to be used with Serato DJ Pro.
Please ensure you have the latest version of Serato DJ Lite installed:
You can also try Serato DJ Pro, before making a purchase:
Drivers & firmware
The Numark Party Mix Pro does not require manufacturer-specific drivers on either Mac or Windows operating systems. Simply connect the device to your PC and launch the latest version of Serato DJ Lite.
Overview
|
# |
PARTY MIX PRO CONTROL | FUNCTION |
| 1 | AUX INPUT | Connect external auxiliary device (3.5mm or 1/8”) |
| 2 | MIC INPUT | Connect external microphone (6.35mm or 1/4”) |
| 3 | LINK | Connect to output audio to an additional speaker device |
| 4 | USB | Connect USB data cable to PC |
| 5 | HEADPHONE | Output to headphones (3.5mm or 1/8”) |
| 6 | POWER SWITCH | Turn the device on / off |
| 7 | AC INPUT | Connect AC power supply |
|
# |
PARTY MIX PRO CONTROL | FUNCTION |
| 1 | MIC | Adjust MIC gain |
| 2 | MASTER GAIN | Adjust Master output level |
| 3 | BROWSE | Library Scroll. Press to toggle between track and crate selection |
| 4 | POWER LED | Lit when device is on |
| 5 | LOAD 1 / 2 | Load highlighted track to respective deck. Double press to Instant Double |
| 6 | MASTER | Adjust Party Mix Pro output level |
| 7 | EQ/GAIN | Adjust channel EQ & gain per channel |
| 8 | CHANNEL CUE | Press to cue channel for monitoring in headphones |
| 9 | JOG WHEEL | Control waveform within Serato DJ in vinyl mode, or pitch bend |
| 10 | TEMPO SLIDER | Adjust temp/pitch |
| 11 | PLAY/PAUSE | Toggles Play/Pause on selected deck |
| 12 | CHANNEL FADER | Adjust channel volume |
| 13 | CROSSFADER | Crossfade audio between channel 1-2 |
| 14 | CUE GAIN | Adjust cue gain |
| 15 | CUE MIX | Adjust headphone mix between CUE and PGM (Master) |
| 16 | CUE | Cues from temp cue point/Set temp cue point |
| 17 | SYNC | Turn SYNC on |
| 18 | PERFORMANCE PADS |
SEE PERFORMANCE PADS FOR MORE INFORMATION |
| 19 | SCRATCH | Press to toggle between scratch vinyl mode and pitch bend |

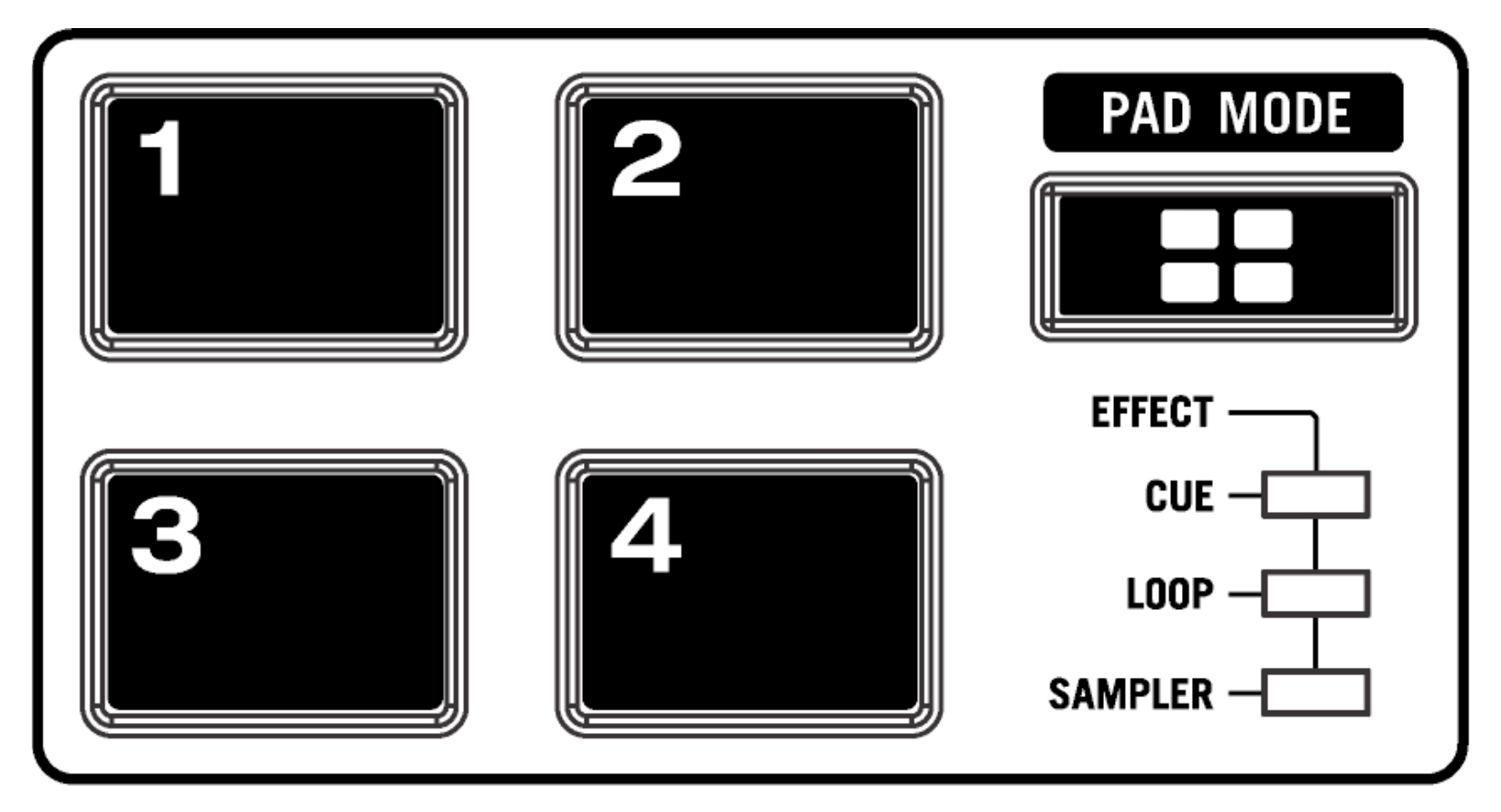

Performance Pads
The Numark Party Mix Pro comes with 4 performance pads, that can be used across 4 different performance pad modes.
Repeatedly pressing the PAD MODE button cycles through the available pad modes, lighting up the respective LED to indicate a selection.
The last pad mode, PAD FX, will illuminate all 3 LEDs to indicate it has been selected.
These consist of:
CUE mode: Pads 1-4 trigger Serato DJ Lite Cue points, and if no Cue point is present on that slot/pad, pressing that pad will set a Cue point.
LOOP mode: Pads 1-4 trigger triggers an autoloop of variable sizes. Use the loop selection area in the Serato DJ Lite user interface, to influence the 4 available autoloop sizes.
SAMPLER mode: Press pads 1-4 to trigger samples loaded into the Serato DJ Lite Sampler.
PAD FX mode: Press pads 1-4 to trigger FX. See DJ-FX below for more information.
DJ-FX
The FX panel button is displayed in the top left area of the main Serato DJ Lite screen, click on this to toggle the DJ-FX panel.
With the DJ-FX panel open, you have control of two DJ-FX units, and if your hardware supports it, Channel FX, which can be applied to tracks played through your connected Serato DJ-hardware.
Both DJ-FX & Channel FX can be controlled with your mouse or by using dedicated controls on your hardware (where available).
Learn more about how to use DJ-FX & Channel FX:
| PARTY MIX PRO CONTROL | FX FUNCTION |
| PAD 1 | Hold & release for Slot 1 Effect On/Off |
| PAD 2 | Hold & release for Slot 2 Effect On/Off |
| PAD 3 | Hold & release for Slot 3 Effect On/Off |
| PAD 4 | Cycle Beats multiplier |

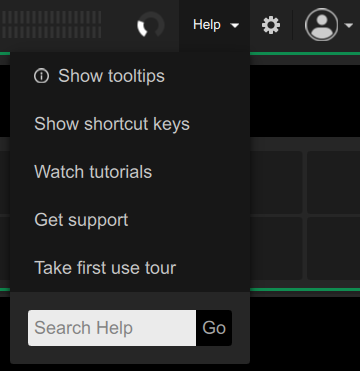

Help
Show Tooltips
Click on the Help button in the upper right-hand corner of Serato DJ Lite, then Show Tooltips to enable Tooltips. Tooltips provide a handy way to learn the various features of Serato DJ Lite.
Move the mouse over a section of the software to bring up a context-sensitive tooltip that describes the feature.
Click on the Help button again to turn off Tooltips.
Show Shortcut Keys
Click on the Help button in the upper right-hand corner of Serato DJ Lite, then click Show Shortcut Keys to launch a pop-up window displaying shortcut keyboard combinations.
These shortcuts can help you perform various actions quickly, such as triggering specific deck functions, controlling playback, or navigating the library.
Watch Tutorials
Click on the Help button in the upper right-hand corner of Serato DJ Lite, then Watch Tutorials to launch
your default internet browser and watch tutorials to help you get familiar with Serato DJ Lite.
Get Support
Click on the Help button in the upper right-hand corner of Serato DJ Lite, then Get Support to launch your default internet browser and navigate to the Serato DJ Lite knowledge base, where you can find helpful articles and guides on Serato DJ Lite. Alternatively, type keywords in the Search Help box to search the Serato DJ Lite knowledge base for specific, related topics.
