Setup
Licensing & software
This is a Serato DJ Lite hardware unlocked device, meaning it unlocks Serato DJ Lite when connected.
It is also a paid upgrade to Serato DJ Pro device, meaning it requires the purchase & activation of a Serato DJ Pro license, in order to be used with Serato DJ Pro.
Please ensure you have the latest version of Serato DJ Lite installed:
You can also try Serato DJ Pro, before making a purchase:
Drivers & firmware
The Pioneer DJ DDJ-FLX4 does not require manufacturer-specific drivers on either Windows or Mac operating systems and is plug-and-play with Serato DJ Lite.
Overview

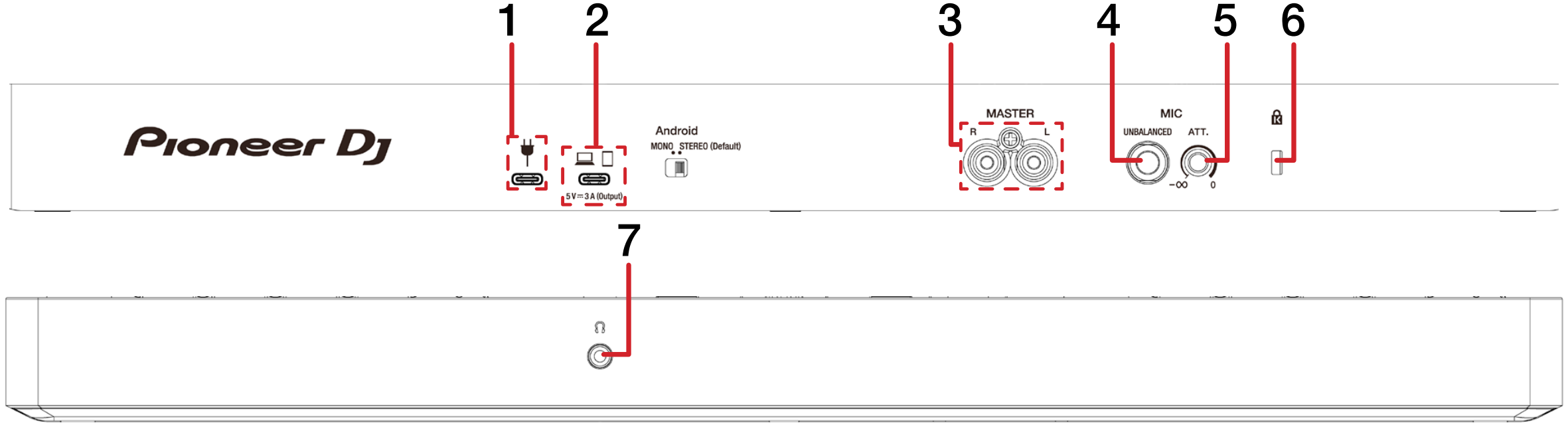

| # | DDJ-FLX4 CONTROL | FUNCTION |
| 1 | USB | Connect USB power supply |
| 2 | USB | Connect USB cable to PC |
| 3 | MASTER | Main audio output via RCA |
| 4 | MIC (UNBALANCED) | Connect microphone via TRS |
| 5 | MIC (ATT.) | Turn to adjust microphone attenuation |
| 6 | KENSINGTON LOCK | Secure device |
| 7 | HEADPHONES | Connect headphones via a 3.5mm jack |

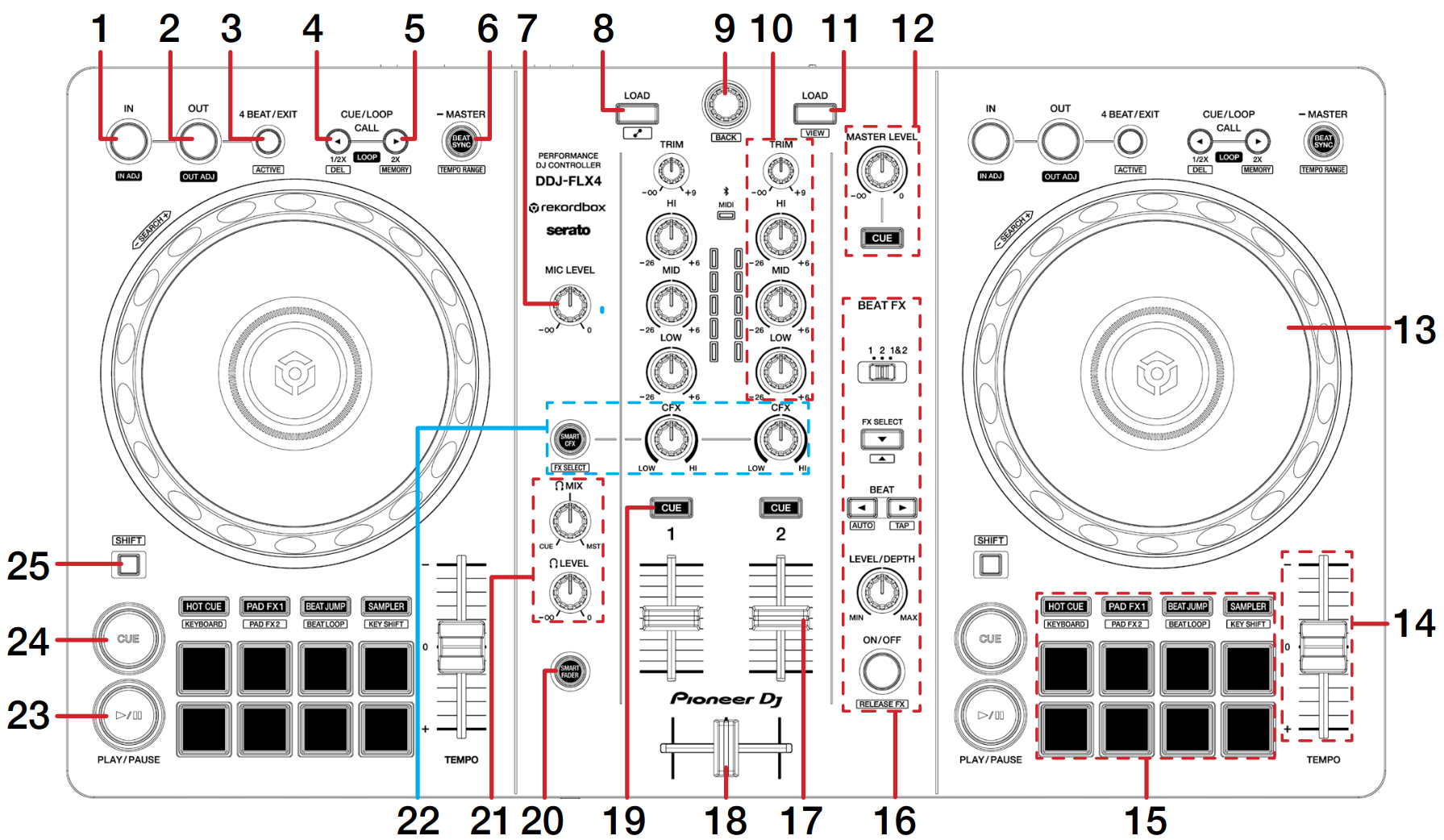

| # | DDJ-FLX4 CONTROL | FUNCTION | SHIFT FUNCTION |
| 1 | IN | Set or Edit Loop in point | - |
| 2 | OUT | Set or Edit Loop out point | Press to toggle between Jog and Vinyl mode for jog wheel |
| 3 | 4 BEAT / EXIT | Press to toggle 4 Beat Autoloop on/off | Press to toggle loop active/ inactive |
| 4 | 1/2X | Halve Active Loop / Select Previous Loop Slot |
- |
| 5 | 2X | Double Active Loop / Select Next Loop Slot |
- |
| 6 | SYNC | Press to turn SYNC on (per deck). Press and hold to disable SYNC (per deck) |
Toggle tempo range (per deck) |
| 7 | MIC LEVEL | Turn to adjust microphone level | - |
| 8 | LOAD 1 | Load selected track to Deck 1 | Sort track list by BPM column |
| 9 | BROWSE | Turn to scroll library. Press in to toggle forward between crate & track area |
Fast Library scroll. Press in to toggle backward between crate & track area |
| 10 | CHANNEL (SECTION) | Adjust level, and adjust EQ (High, Mid, Low) |
- |
| 11 | LOAD 2 | Load selected track to Deck 2 | Sort track list by Artist column |
| 12 | MASTER (SECTION) | Adjust master output volume and toggle master channel CUE for headphone monitoring | - |
| 13 | JOG WHEEL | Turn jog to bend pitch, or control waveform within Serato DJ in vinyl mode | Fast track waveform scroll |
| 14 | TEMPO SLIDER | Adjust tempo/pitch | Ignore tempo/pitch adjustment |
| 15 | PERFORMANCE PADS (SECTION) |
SEE PERFORMANCE PADS FOR MORE INFORMATION | - |
| 16 | BEAT FX (SECTION) | SEE DJ-FX FOR MORE INFORMATION | - |
| 17 | CHANNEL FADER | Adjust channel volume (per channel) | - |
| 18 | CROSSFADER | Crossfade audio between channel 1-2 | - |
| 19 | CHANNEL CUE | Toggle channel cue for monitoring | - |
| 20 | SMART FADER | Press Smart Fader button to engage or disengage desired FX. Then close channel fader, or crossfader to apply FX in increasing amounts, while track gain fades out, allowing for smooth transitions |
Press repeatedly to select between preconfigured Echo or Reverb FX |
| 21 | HEADPHONES (SECTION) |
Adjust headphone level, and adjust headphone cue/master mix | |
| 22 | SMART CFX (SECTION) |
Press Smart CFX to engage or disengage desired FX. Turn CFX filter control left or right for High Pass Filter and Low Pass Filter respectively, while Smart Channel FX is applied in increasing amounts. Track gain fades out as filter control reaches maximum state, allowing for smooth transitions |
Press Smart CFX repeatedly to select between preconfigured Echo or Reverb FX |
| 23 | PLAY / PAUSE | Toggles Play / Pause on selected deck | Stutter play |
| 24 | CUE | Cues from temp cue point / Set temp cue point |
Load previous track |
| 25 | SHIFT | Shift modifier, which can be held while using another control for secondary SHIFT function | - |

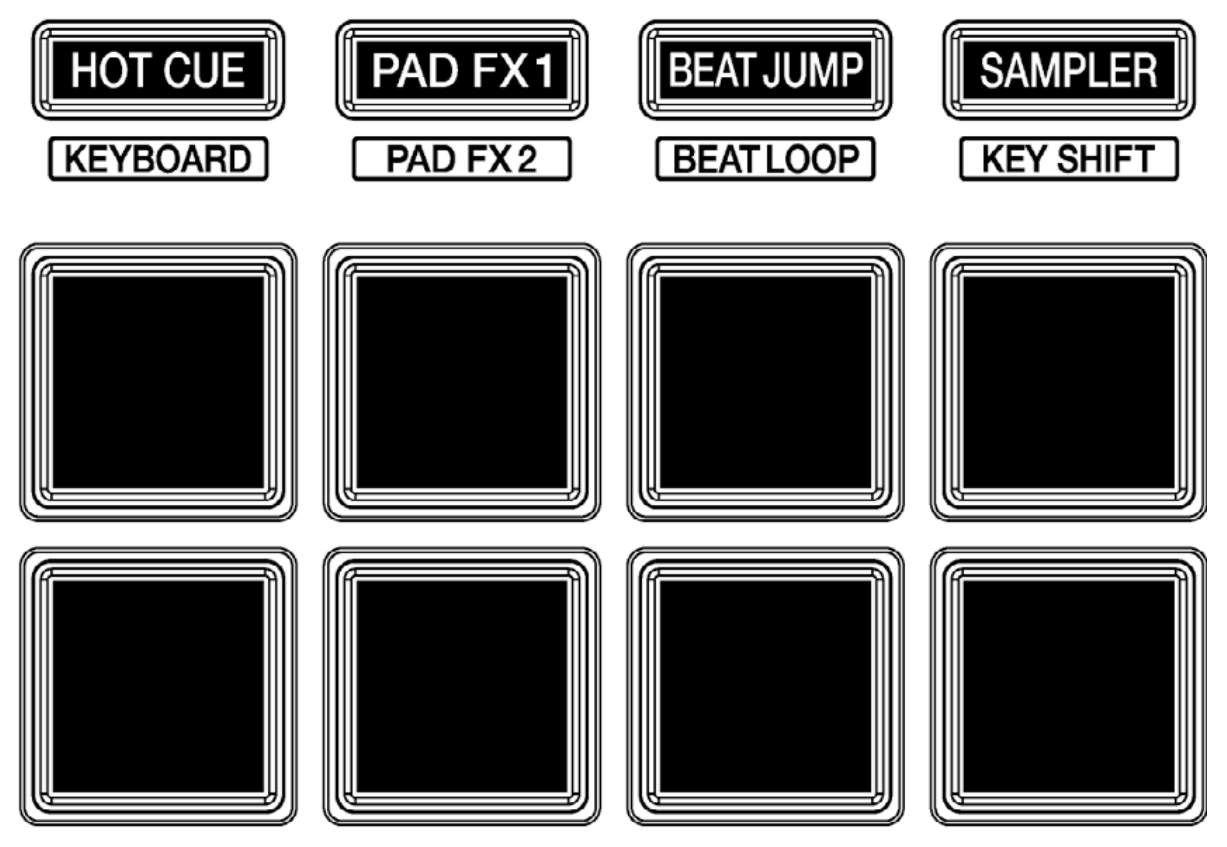

Performance Pads
The Pioneer DJ DDJ-FLX4 comes with 8 performance pads, that can be used across 6 different performance pad modes.
In Serato DJ Lite, in all pad modes, pad 5 loads the previous track, pads 6 and 7 rewind and fast-forward the playing track, and pad 8 performs the Censor function.
Holding SHIFT while pressing Censor toggles reverse playback for the playing track.
The first 4 modes can be triggered by pressing the performance pad mode button of the same name once, and consist of:
HOT CUE mode: Pads 1-4 trigger Serato DJ Lite Cue points, and if no Cue point is present on that slot/pad, pressing that pad will set a Cue point. Holding down the SHIFT button while pressing a populated pad will delete the Cue point from the respective pad/slot.
PAD FX 1 mode: Pad FX 1 mode allows the user to trigger quick and powerful preconfigured FX in an intuitive manner. Pads 1-4 can be pressed and held to apply FX, which consists of Echo, Flanger, Reverb & Repeater.
BEAT JUMP mode: Press pads 1 and 4 perform Beat Jump left & right respectively, while pads 2 & 3 halve and double the Beat Jump size.
SAMPLER mode: Press pads 1-4 in this mode to trigger samples loaded into the Serato DJ Lite Sampler. Holding SHIFT while pressing a Pad will stop a currently playing Sampler slot, or load a new sample to the Sampler slot if empty.
The last 2 modes are as follows:
-
LOOP ROLL mode: Press the PAD FX1 mode button while holding SHIFT to enter Loop Roll mode.
Holding Pads 1-4 activates a loop roll of varying sizes. Release the pad to exit the Loop Roll. - AUTO LOOP mode: Press the BEAT JUMP mode button while holding SHIFT to enter Auto Loop mode. In this mode, pads 1-4 trigger an Auto Loop of varying sizes. Press the same pad for a second time to exit an Auto Loop.
DJ-FX
The FX panel button is displayed in the top left area of the main Serato DJ Lite screen, click on this to toggle the DJ-FX panel.
With the DJ-FX panel open, you have control of two DJ-FX units, and if your hardware supports it, Channel FX, which can be applied to tracks played through your connected Serato DJ-hardware.
Both DJ-FX & Channel FX can be controlled with your mouse or by using dedicated controls on your hardware (where available).
Learn more about how to use DJ-FX & Channel FX:
| DDJ-FLX4 CONTROL | FX FUNCTION | SHIFT FUNCTION |
| 1 / 2 / 1&2 | Move the slider to assign FX output, to either Deck 1, 2, or both 1&2 | - |
| FX SELECT | Press to cycle forward FX Slot 1 | Press to cycle forward FX Slot 1 |
| TIME/PARAMETER | Press left or right to adjust Beats Multiplier value |
Press left button to reset Tap FX Tempo value. Press right button repeatedly to set Tap Tempo FX value |
| LEVEL/DEPTH | Turn to adjust the level/depth of FX Slot 1 | - |
| FX ON / OFF | Turn FX on/off of FX Slot 1 | - |

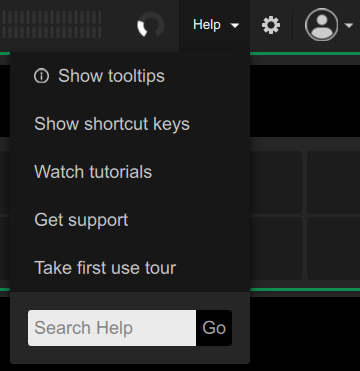

Help
Show Tooltips
Click on the Help button in the upper right-hand corner of Serato DJ Lite, then Show Tooltips to enable Tooltips. Tooltips provide a handy way to learn the various features of Serato DJ Lite.
Move the mouse over a section of the software to bring up a context-sensitive tooltip that describes the feature.
Click on the Help button again to turn off Tooltips.
Show Shortcut Keys
Click on the Help button in the upper right-hand corner of Serato DJ Lite, then click Show Shortcut Keys to launch a pop-up window displaying shortcut keyboard combinations.
These shortcuts can help you perform various actions quickly, such as triggering specific deck functions, controlling playback, or navigating the library.
Watch Tutorials
Click on the Help button in the upper right-hand corner of Serato DJ Lite, then Watch Tutorials to launch
your default internet browser and watch tutorials to help you get familiar with Serato DJ Lite.
Get Support
Click on the Help button in the upper right-hand corner of Serato DJ Lite, then Get Support to launch your default internet browser and navigate to the Serato DJ Lite knowledge base, where you can find helpful articles and guides on Serato DJ Lite. Alternatively, type keywords in the Search Help box to search the Serato DJ Lite knowledge base for specific, related topics.
