Setup
Licensing & software
This is a Serato DJ Lite hardware unlocked device, meaning it unlocks Serato DJ Lite when connected.
It is also a paid upgrade to Serato DJ Pro device, meaning it requires the purchase & activation of a Serato DJ Pro license, in order to be used with Serato DJ Pro.
Please ensure you have the latest version of Serato DJ Lite installed:
You can also try Serato DJ Pro, before making a purchase:
Drivers & firmware
The Numark NS4FX does not require manufacturer-specific drivers on either macOS or Windows operating systems, simply connect your NS4FX with a USB cable to your computer, and launch the latest version of Serato DJ Pro.
Overview
|
# |

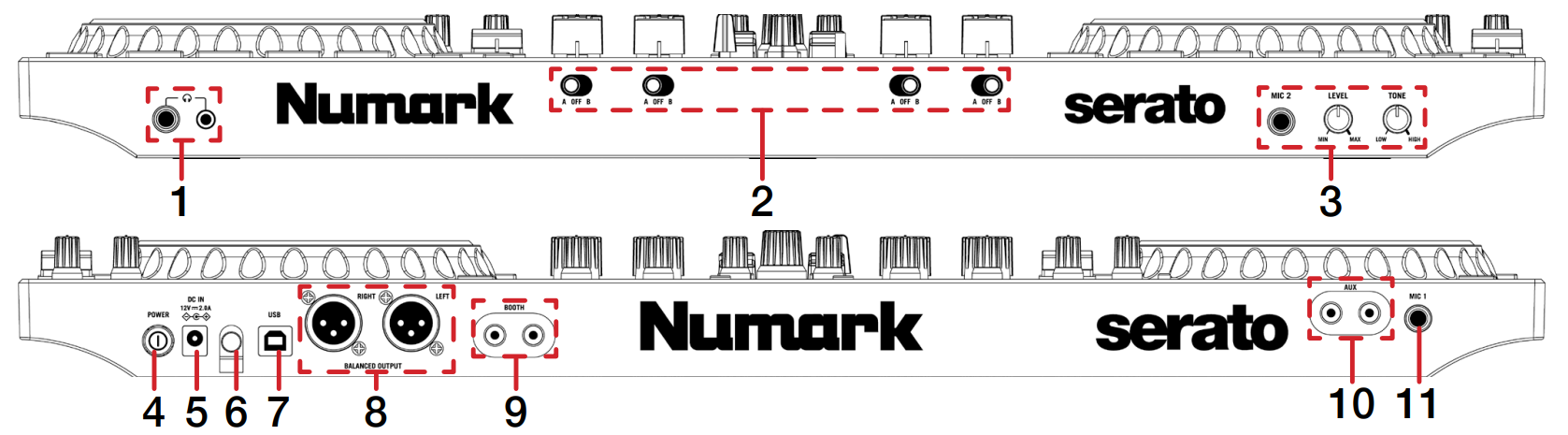

NS4FX CONTROL | FUNCTION |
| 1 | 1/8” & 1/4” HEADPHONE JACK | Connect your headphones via 1/8” or 1/4” outputs |
| 2 | A-OFF-B (section) | Assign crossfader, per channel, to deck A, OFF, or B |
| 3 | MIC2/LEVEL/TONE | Connect microphone via 1/4” / TRS jack / Adjust MIC2 level / Adjust MIC2 tone |
| 4 | POWER | Press to turn device power on/off |
| 5 | DC IN | Connect power adapter |
| 6 | KENSINGTON LOCK | Secure device |
| 7 | USB | Connect USB cable to PC |
| 8 | BALANCED OUTPUT | Connect (main) output via XLR |
| 9 | BOOTH | Connect (booth) output via RCA |
| 10 | AUX | Connect (auxilliary) input via RCA |
| 11 | MIC1 | Connect microphone via 1/4” / TRS jack |
|
# |

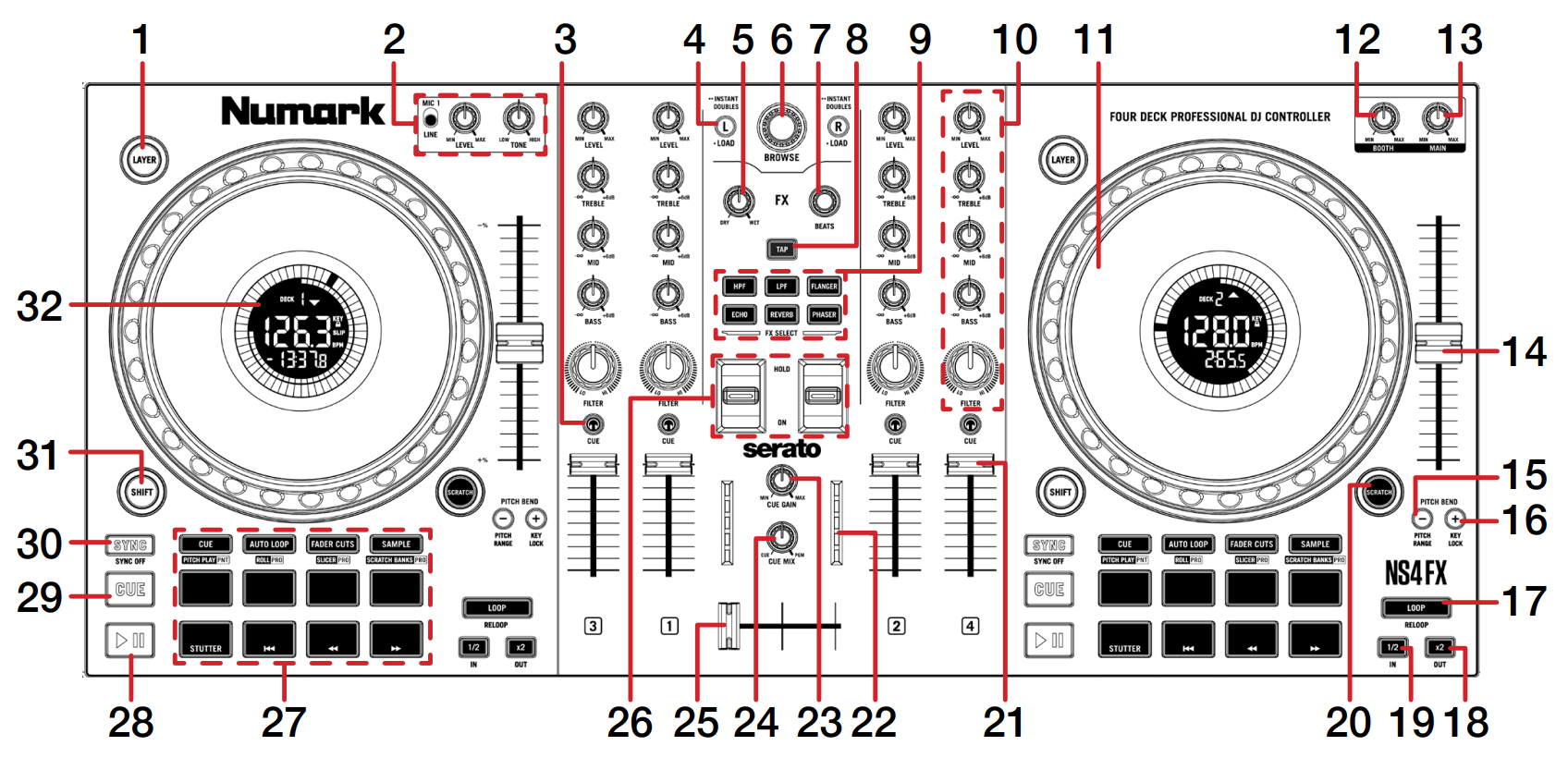

NS4FX CONTROL | FUNCTION | SHIFT FUNCTION |
| 1 | LAYER | Toggle between decks 1 or 3, or decks 2 or 4 (per side) | - |
| 2 | MIC 1 (section) | Adjust MIC1 input, level & tone | - |
| 3 | CHANNEL CUE | Press to cue channel for monitoring in headphones | - |
| 4 | LOAD L/R | Load currently highlighted track to left deck, or right deck (per side), double-press to instant double | - |
| 5 | (FX) DRY/WET | Adjust Effects Parameter 1 depth | - |
| 6 | BROWSE | Turn to scroll library. Press in to toggle forward between track and crate selection | Turn for fast library scroll. Press in to add to Prepare Crate |
| 7 | (FX) BEATS | Adjust Beats multiplier | - |
| 8 | (FX) TAP | Tap FX Tempo | - |
| 9 | FX SELECT | Effects Slot Select 1 | |
| 10 | CHANNEL LEVEL/EQ/ FILTER | Adjust channel level, adjust channel EQ (treble/mid/bass), or adjust channel combo filter (per channel) | - |
| 11 | JOG WHEEL | Control the waveform within Serato DJ Pro | Platter skip |
| 12 | BOOTH | Adjust booth output level | - |
| 13 | MAIN | Adjust main output level | - |
| 14 | TEMPO SLIDER | Adjust playback tempo of current loaded track | Ignore tempo slider |
| 15 | PITCH BEND - | Pitch Bend down | Press to toggle be- tween pitch ranges (per deck) |
| 16 | PITCH BEND + | Pitch Bend up | Enable/disable Key Lock for deck |
| 17 | LOOP | Toggle Autoloop on/off | Reloop/Exit Loop |
| 18 | X2 | Double active loop length | Set or Edit Loop out point |
| 19 | 1/2 | Halve active loop length | Set or Edit Loop in point |
| 20 | SCRATCH | Toggle vinyl mode on/off per deck | - |
| 21 | CHANNEL FADER | Adjust channel volume | Fader Start |
| 22 | METER | Observe deck level via meter | - |
| 23 | CUE GAIN | Adjust headphone output level | - |
| 24 | CUE MIX | Adjust headphone output mix between CUE and PGM | - |
| 25 | CROSSFADER | Fade audio between the Deck A & Deck B | - |
| 26 | FX HOLD/ON | Push up to permanently engage FX, or push down to momentarily engage FX | - |
| 27 | PERFORMANCE PADS | SEE PERFORMANCE PAD SECTION BELOW FOR MORE INFORMATION | - |
| 28 | PLAY/PAUSE | Play or pause the currently loaded track | Stutter Play |
| 29 | CUE | Set/play from a temporary cue point | Load previous track |
| 30 | SYNC | Turn Sync on for the respective deck | Turn off Sync |
| 31 | SHIFT | Used with other controls that have shift modifier functions | - |
| 32 | JOG WHEEL DISPLAY | Display playing track information | - |

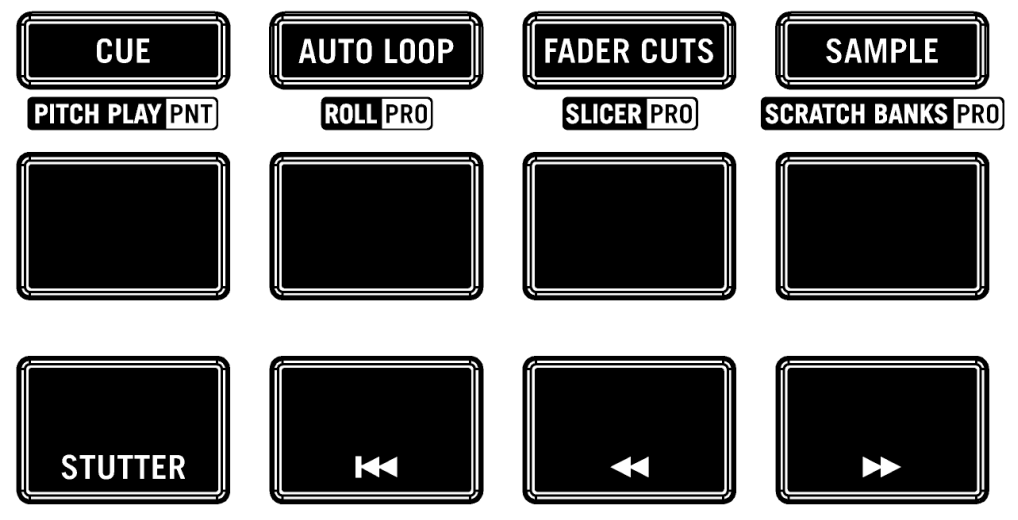

Performance Pads
The Numark NS4FX comes with 8 performance pads, that can be used across 8 different performance pad modes in Serato DJ Pro. These consist of:
CUE mode: Press this pad mode button once to select CUE mode. In this mode pads 1-8 trigger Serato DJ Pro Cue points, and if no Cue point is present on that slot/pad, pressing that pad will set a Cue point. Holding down the SHIFT button while pressing a pad will delete the Cue point from the respective pad/slot.
AUTO LOOP mode: Press this pad mode button once to select AUTO LOOP mode. Pads 1-8 trigger an autoloop of variable sizes. Use the loop selection area in the Serato DJ Pro user interface, to influence the 8 available autoloop sizes.
FADER CUTS mode: Trigger fader cuts. This mode is firmware-based and not controlled by Serato DJ Pro - see Numark documentation for more information.
SAMPLE mode: Press this pad mode button to select SAMPLER mode. Press pads 1-8 in this mode to trigger samples loaded into the Serato DJ Pro Sampler. Holding SHIFT while pressing a pad will stop a
currently playing Sampler slot, or load a new sample to the Sampler slot if empty.
PITCH PLAY mode: Hold the SHIFT button and press CUE to select PITCH PLAY mode. In this mode, pads 1-8 play Cue points over a pitch range. This requires the Serato Pitch ‘n Time DJ expansion pack to be activated, see the PITCH PLAY section for more information.
ROLL mode: Hold the SHIFT button and press AUTO LOOP to select ROLL mode. Holding pads 1-8
activate a loop roll of varying sizes (1/8 to 16 beats). Release the pad to exit the Loop Roll.
SLICER mode: Hold the SHIFT button and press FADER CUTS to select SLICER mode In this mode a
specified range (or domain) is divided into eight equal sections, and these eight sliced sections are assigned to the respective performance pads (1-8), and can be triggered by pressing each pad. The domain shifts as the track duration elapses.
SCRATCH BANK mode: Hold the SHIFT button and press SAMPLE to select SCRATCH BANK mode.
Scratch Bank Mode allows you at assign files in your Serato DJ Pro library to a pad. When a pad is
triggered, the file corresponding file will be loaded to deck.
Click the Scratch Banks panel toggle button (pictured below) in the top left-hand corner of the Serato DJ Pro user interface to reveal the Scratch Banks panel.
Here you can click and drag tracks into slots in the Scratch Banks panel, adjust preferences that are remembered when the respective Pad is triggered and loaded to a deck, and eject tracks. You can reveal those preferences (such as start point, Key lock on/off, and Repeat on/off) by toggling between Advanced and Simple view in the Scratch Banks panel, by clicking the toggle button (pictured below).
The left set of pads will load Scratch Bank assigned tracks to Deck 1, and the right set of pads will load assigned tracks to Deck 2. Holding SHIFT on your device, while pressing an assigned/loaded Pad, will reload the previously loaded track to the relevant virtual deck.
Beat Jump
To activate Beat Jump, open the Setup screen, navigate to the DJ preferences tab and turn on “Show Beat Jump Controls”.
When you close the Setup screen, you will see Beat Jump controls underneath the existing Auto Loop values on each deck. Checking this box will turn on Beat Jump features in the deck area and let you control Beat Jump from your supported Serato DJ Pro hardware.
When the Beat Jump option is enabled, performance pad modes AUTO LOOP or ROLL mode (where applicable) will use the bottom row of 4 pads (pads 5-8) as Beat Jump controls. This is designed to mirror the change in the deck Auto Loop area (from 8 Auto Loop sizes to 4 Auto Loop sizes + Beat Jump controls).
Pitch Play
There are 3 key ranges to choose from, and the following tables show the pitched key ranges (in Semitones) while using the 8 performance pads in Pitch Play mode.
The root keypad (0) is always lit white, which will play the cue point at its regular pitch.
Use the Parameter Left & Right buttons to move the Key Range up or down.
In Pitch Play mode, pressing a pad will pitch the currently selected cue point up or down the following ranges:
Up Range: (Up 7 Semitones)
| +4 | +5 | +6 | +7 |
| 0 | +1 | +2 | +3 |
Middle Range: (Up 3/Down 4 Semitones)
| 0 | +1 | +2 | +3 |
| -4 | -3 | -2 | -1 |
Down Range: (Down 7 Semitones)
| -3 | -2 | -1 | 0 |
| -7 | -6 | -5 | -4 |
When Pitch Play mode is first enabled, the middle range is selected. Pitch Play mode will default back to the middle range if a new track is loaded. The selected range is recalled if another pad mode is selected, then
the user switches back to Pitch Play mode.
Pitch Play can only pitch one Cue point at a time. To change the selected Cue, hold the SHIFT button and press a performance pad where the cue point you want to select would be (as shown in the HOT CUE performance pad mode).
While holding SHIFT, press the corresponding performance pad for:
| Cue 1 | Cue 2 | Cue 3 | Cue 4 |
| Cue 5 | Cue 6 | Cue 7 | Cue 8 |
The selected cue point defaults to Cue Point 1 on track load, even if instant doubled. A new cue point will be created if a pad with no cue point is selected. Deleting a cue point is not possible in Pitch Play mode.
NOTE: Pitch Play mode is available once the Pitch 'n Time DJ Expansion Pack has been activated in the Expansions window, under the My Account drop-down. Then ensure Pitch 'n Time DJ is checked in the Expansion Pack tab of the Setup screen.
MIDI
The MIDI feature in Serato DJ Pro allows you to remap Serato DJ Pro software functions to your primary Serato controller, interface or mixer. You can also assign controls to a secondary MIDI controller to further enhance your performance.
For more information on MIDI mapping with Serato DJ Pro, click here.

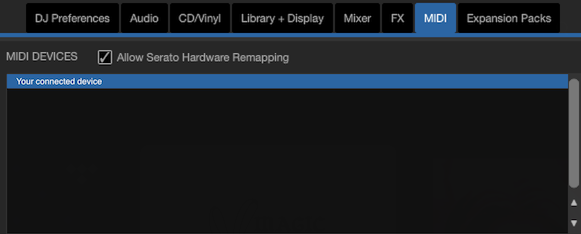

To remap your supported Serato device, open the SETUP screen and click the MIDI tab. If your Serato device supports hardware remapping, it will appear in the MIDI DEVICES list.
Select your connected device from the MIDI DEVICES list and check the Allow Serato Hardware Remapping option.
Once checked, the MIDI assign button at the top of the main Serato DJ Pro interface will become available for you to start remapping.
You can save, edit or delete MIDI presets in the MIDI tab of the SETUP screen. Clicking Restore Defaults will erase any custom mappings for all connected devices and revert their functions back to default.
Help
Show Tooltips
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Show Tooltips to enable Tooltips. Tooltips provide a handy way to learn the various features of Serato DJ Pro.
Move the mouse over a section of the software to bring up a context-sensitive tooltip that describes the feature.
Click on the Help button again to turn off Tooltips.
Show Shortcut Keys
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then click Show Shortcut Keys to launch a pop-up window displaying shortcut keyboard combinations.
These shortcuts can help you perform various actions quickly, such as triggering specific deck functions, controlling playback, or navigating the library.
Watch Tutorials
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Watch Tutorials to launch
your default internet browser and watch tutorials to help you get familiar with Serato DJ Pro.
Get Support
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Get Support to launch your default internet browser and navigate to the Serato DJ Pro knowledge base, where you can find helpful articles and guides on Serato DJ Pro. Alternatively, type keywords in the Search Help box to search the Serato DJ Pro knowledge base for specific, related topics.
