Setup
Licensing & software
This is a Serato DJ Pro hardware unlocked device, meaning it unlocks Serato DJ Pro when connected.
Please ensure you have the latest version of Serato DJ Pro installed:
Drivers & firmware
The Numark NVII is a class-compliant device, but requires drivers for Windows. Please download and install the latest versions of these drivers, along with any available firmware updates from Numark's website here: https://www.numark.com/product/nvii
Overview
|
# |
NVII CONTROL | FUNCTION | SHIFT FUNCTION |
| 1 | DISPLAY | Displays Serato DJ information | - |
| 2 | TOUCH FX | Press once to enable touch sensitivity for FX knobs. Press twice to enable touch sensitivity for both FX and EQ knobs. | - |
| 3 | MIC/AUX INPUT SWITCH | Switch External Input between AUX, MIC and Off. | - |
| 4 | FX CHANNEL ROUTING | Select FX routing for each channel | - |
| 5 | MIC TONE | Adjust Mic input tone | - |
| 6 | MIC/AUX GAIN | Adjust MIC/AUX volume | - |
| 7 | BEATMATCH INDICATOR | Helps show the position of transients on each track when beatmatching | - |
| 8 | BOOTH OUTPUT GAIN | Adjust Booth output volume | - |
| 9 | CHANNEL GAIN/EQ | Adjust Gain and EQ for specific channel | - |
| 10 | MASTER OUTPUT GAIN | Adjusts Master Output volume | - |
| 11 | MASTER FX ROUTING | Assign all channels to FX unit A or B | - |
| 12 | PREP | Open the prepare panel | Load track to the Prepare Crate. |
| 13 | FWD | Toggle FWD to library view from Crates view. | Sort library by Album |
| 14 | SEL/LOAD | Browser library Scroll. Push to Load highlighted track to deck. | - |
| 15 | BACK | Toggles back to Crate view from Library and vice versa. | Sort library by Artist |
| 16 | CRATE | Show Crate list | Sort library by Song |
| 17 | FX CONTROLS | SEE FX SECTION | Selects FX for each slot |
| 18 | SLIP | Turns Slip on | - |
| 19 | BLEEP | Censors currently playing track | Reverse playing track |
| 20 | SHIFT | Software Shift modifier (used with other controls) | - |
| 21 | SYNC | Enables SYNC for that deck | Disables SYNC for that deck |
| 22 | CUE | Set Temp Cue/Play from Temp Cue | Cue next track |
| 23 | PLAY/PAUSE | Play/pause the currently loaded track | Stutter Play |
| 24 | FILTER | LP/HP combo filter. Used as Filter Roll when TOUCH FX is activated | - |
| 25 | CHANNEL FADER | Adjust Channel Volume | - |
| 26 | CROSSFADER START RIGHT | CF Start for the right side On/Off | - |
| 27 | CROSSFADER CONTOUR | Adjust the crossfader contour curve | - |
| 28 | CROSSFADER | Crossfades from left to right channels (A/B) | - |
| 29 | CROSSFADER START LEFT | CF Start for the left side On/Off | - |
| 30 | CROSSFADER CHANNEL ASSIGN | Select Crossfader Channel for each deck | - |
| 31 | CHANNEL CUE | Enables headphone monitoring for that channel | - |
| 32 | PERFORMANCE PADS | Controls Performance Modes (SEE PERFORMANCE PADS) | - |
| 33 | PITCH BEND | Bends the pitch of playing track up or down | - |
| 34 | PARAMETER ADJUST | Changes value/timing of currently selected Performance pad mode or loop. (SEE PERFORMANCE PADS) | Second Parameter Function (if available in selected perfomance mode) |
| 35 | SCRATCH JOG MODE | Toggle Scratch Jog mode On/Off | - |
| 36 | JOG WHEEL/PLATTER | Adjust/Scratch or Jog | - |
| 37 | TEMPO ADJUSTMENT INDICATOR | Shows where the track has been pitch adjusted | - |
| 38 | TEMPO FADER | Adjusts playing deck tempo/pitch | Used to adjust relative pitch when in SYNC |
| 39 | BEAT JUMP/QUANT | Press on the left deck to enable Beatjump. Press on the right deck to enable Quantize. | Sort library by BPM |
| 40 | S. VIEW | Shows the view | Sort library by Key |
| 41 | DECK | Toggles the active deck layer | - |
| 42 | RANGE | Cycles through available Pitch Ranges. | Keylock / Master Tempo |
| 43 | D. VIEW | Shows the view | - |
|
# |

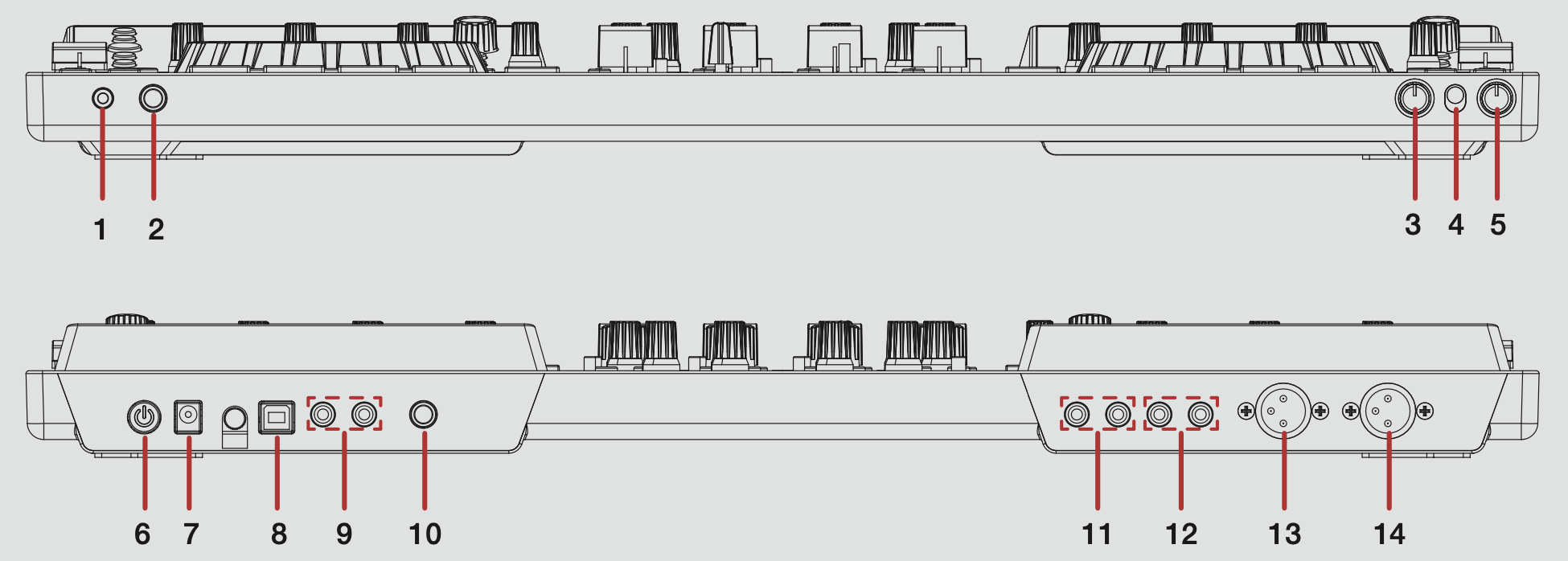

NVII CONTROL | FUNCTION |
| 1 | 1/8” HEADPHONES | Connect your 1/8” headphones to this output for cueing |
| 2 | 1/4” HEADPHONES | Connect your 1/4” headphones to this output for cueing |
| 3 | CUE MIX | Blend your headphone output between CUE and PGM1 |
| 4 | CUE SPLIT | Turn Split Cue OFF/ON |
| 5 | CUE GAIN | Adjust the volume of the headphone cue output |
| 6 | POWER SWITCH | Turns NV on and off |
| 7 | POWER IN | Use the included power cable to connect NV to a power outlet |
| 8 | USB | Connect USB cable to this port from computer |
| 9 | EXTERNAL INPUT | Connect an external RCA device to this input |
| 10 | MIC INPUT | Connect an TRS or 1/4” jack microphone to this input |
| 11 | BOOTH RCA OUTPUT | Use standard RCA cables to connect this output to a speaker or powered monitors |
| 12 | MASTER RCA OUTPUT | Use standard RCA cables to connect this output to a speaker or powered monitors |
| 13 | MASTER OUTPUT LEFT (XLR) | Connect this low-impedance XLR output to a PA system or powered monitors |
| 14 | MASTER OUTPUT RIGHT (XLR) | Connect this low-impedance XLR output to a PA system or powered monitors |

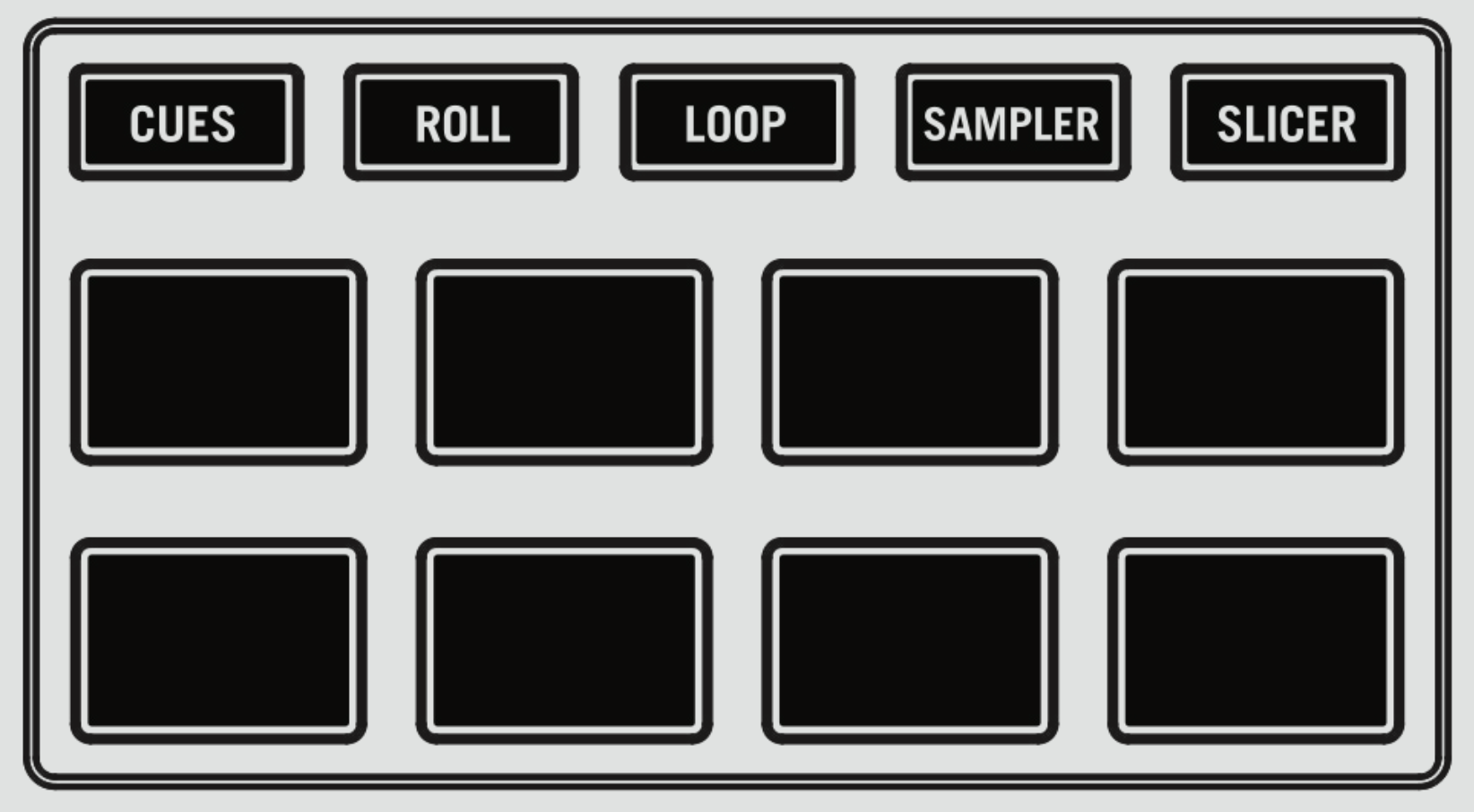

Performance Pads
The performance pads have ten different modes you can select. The first five are activated by pressing the mode buttons once, the second five are activated by pressing the mode buttons a second time. For reference below the pads are numbered 1-8 from the top left pad moving to the right.
CUES mode: Pressing pads 1-8 will add up to 8 Cue Points. Holding SHIFT and pressing buttons 1-8 will delete the Cue Points. Press CUES a second time to activate CUE LOOP mode. Pressing a cue will play from that cue and activate a loop. Loop size can be changed with left and right Parameter Adjust buttons.
ROLL mode: When pressing pads 1-8 you can activate Auto Loops of different sizes. Pressing ROLL a second time activates Loop Roll mode. Pressing pads 1-8 activate different loop roll lengths.
LOOP mode: Pressing pads 1-4 can launch the first 4 saved loops. Pad 5 will start set a Manual Loop In point, Pad 6 will set the Loop Out point and pads 7 and 8 will turn the Loop On/Off and Retrigger the loop. Pressing LOOP mode a second time enables you to access the other 4 saved loops in your loop bank.
SAMPLER mode: Pads 1-3 trigger samples loaded in slots 1-3 of your Sample Banks. Pads 5-7 trigger samples loaded in slots 4-6 of your Sample Banks. Use the Parameter buttons to cycle through Sample Banks. Holding SHIFT and pressing the Parameter buttons will cycle the output channel for the Sampler Holding SHIFT and pressing pads 1-3 & 5-7 will stop the sample playing. When a sample slot is empty, pressing the pads 1-3 & 5-7 + SHIFT will load the currently selected track in library panel to the corresponding sample slot. There are also 2 sampler modifier modes:
- Loop Sample – Holding pad 4 and pressing one of the sample slots
will cycle the playback type to LOOP and Single Play for that slot.
When a sample is playing and looped the playing Pad LED should flash. - Cycle Playback Type – Holding pad 8 and pressing one of the sampler slots will change the playback type of the sample from One Shot/Toggle/Hold.
SLICER mode: A specified range (or domain) is divided into eight equal sections, and these eight sliced sections are assigned to the respective performance pads. Pressing SLICER once for the first mode, is a shifting Slicer Domain. Pressing SLICER twice, for the second mode is a fixed Slicer Domain or “loop”. Use the Parameter buttons to set the quantization for the slicer function. The quantization can be set in four ways: 1/8, 1/4, 1/2 and 1. Hold SHIFT + the Parameter buttons will set the domain. The domain can be set to one of six settings: 2 beats, 4 beats, 8 beats, 16 beats, 32 beats or 64 beats.
Looping
You have up to 8 loops per track in Serato DJ, and the choice between either manual or auto loops. When using your controller the four different looping modes, ROLL mode, HOT LOOP mode, AUTO LOOP mode, and MANUAL LOOP Mode can all be activated and controlled via the eight performance pads.
Loop Roll Mode, Auto Loop Mode and Hot Loop Mode
Cue Loop, Auto Loop, and Loop Roll are three of the performance pad modes. Activate Cue Loops on the performance pads by pressing the CUE mode button twice on your controller. Press the ROLL button to activate Auto Loop mode and Press ROLL twice to activate Loop Roll mode.
SEE PERFORMANCE PADS FOR MORE INFORMATION.
|
NVII CONTROL |
CUE LOOP MODE | AUTO LOOP MODE | LOOP ROLL MODE |
| Pads 1-8 | Cue Loop trigger | Auto Loop ON/ OFF | Loop Roll On/Off |
| Pads 1-8 + SHIFT | - | - | - |
| Parameter Adjust | Adjust Cue Loop range | Adjust Loop size | Toggle Loop Roll size view |
| Adjust + SHIFT | - | Shift Loop | - |
Manual Loop Mode
Manual Looping enables you to manually set the length of your loops, save your loops as well as launch previously saved loops. Activate Manual Loops in the LOOP performance mode on your controller
SEE PERFORMANCE PADS FOR MORE INFORMATION.
|
NVII CONTROL |
MANUAL LOOP MODE |
| Pad 1 | Activate Saved Loop in Slot 1/Select Slot |
| Pad 2 | Activate Saved Loop in Slot 2/Select Slot |
| Pad 3 | Activate Saved Loop in Slot 3/Select Slot |
| Pad 4 | Activate Saved Loop in Slot 4/Select Slot |
| Pad 5 | Start manual loop. Edit start of loop point (if Loop already active) |
| Pad 6 | End manual loop. Edit end of loop point (if Loop already active) |
| Pad 7 | Turns Loop On/Off |
| Pad 8 | Retriggers current Loop and turns Loop On (if Off) |
| Parameter Adjust | Halve/Double Loop length |
| Parameter Adjust + SHIFT | Loop Shift/Beat Jump |
NOTE: You can also save a loop to the next available free loop slot in the software. To do this, click the + icon (pictured below) on an available loop slot. Your loops are saved to the file and recalled the next time it is loaded. They are not lost if the file is moved or renamed.
DJ-FX
The FX panel button is displayed in the top left area of the main Serato DJ Pro screen, click on this to toggle the DJ-FX panel.
With the DJ-FX panel open, you have control of two DJ-FX units, and if your hardware supports it, Channel FX, which can be applied to tracks played through your connected Serato DJ-hardware.
Both DJ-FX & Channel FX can be controlled with your mouse, by using dedicated controls on your hardware (where available), or by MIDI mapping controls to the respective software functions.
Learn more about how to use DJ-FX & Channel FX:
| NVII CONTROL | FX FUNCTION | SHIFT |
| Master FX A, B | Assign master to left (A) or right (B) FX units | - |
| Channel FX assign A, B | Assign channel to left (A) or right (B) FX units | - |
| FX 1-3 On/Off | Turns FX slot On/Off | Selects next FX in slot |
| BEAT button |
Tap to set BPM Hold reset to auto. |
- |
| BEAT knob | Adjust FX beats multiplier | - |
| BEATS | Tap to set FX BPM/Hold to reset | - |
| FX Assign A/B | Assigns channel to FX UNIT 1 or 2 | - |
Flip
Flip is an Expansion Pack for Serato DJ Pro. Flip controls are only available once the Expansion pack has been purchased and activated. The Expansion pack can be bought via Serato.com -https://serato.com/dj/pro/expansions
Please check out our Flip User Guide for more information on using Flip.
In CUES performance pad mode the Left and Right Parameter buttons are used to record and trigger Flips.
|
NVII CONTROL |
FUNCTION | SHIFT FUNCTION |
| Left Parameter button | Starts the recording of a new Flip | Turns Flip Loop on/off |
| Right Parameter button | Starts the current Flip / re-trigger Flip | Turns current Flip On/Off |
Press SHIFT + CUES mode to enter Flip performance pad mode. Pressing pads 1-6 in will trigger saved Flips, pressing SHIFT + pads 1-6 will turn saved Flips on/off. Pressing an empty Flip slot will save any active Flip to that slot.
Beat Jump
To activate Beat Jump, open the Setup screen, navigate to the DJ preferences tab and turn on “Show Beat Jump Controls”.
When you close the Setup screen, you will see Beat Jump controls underneath the existing Auto Loop values on each deck. Checking this box will turn on Beat Jump features in the deck area and let you control Beat Jump from your supported Serato DJ Pro hardware.
When the Beat Jump option is enabled, performance pad modes AUTO LOOP or ROLL mode (where applicable) will use the bottom row of 4 pads (pads 5-8) as Beat Jump controls. This is designed to mirror the change in the deck Auto Loop area (from 8 Auto Loop sizes to 4 Auto Loop sizes + Beat Jump controls).
MIDI
The MIDI feature in Serato DJ Pro allows you to remap Serato DJ Pro software functions to your primary Serato controller, interface or mixer. You can also assign controls to a secondary MIDI controller to further enhance your performance.
For more information on MIDI mapping with Serato DJ Pro, click here.
To remap your supported Serato device, open the SETUP screen and click the MIDI tab. If your Serato device supports hardware remapping, it will appear in the MIDI DEVICES list.
Select your connected device from the MIDI DEVICES list and check the Allow Serato Hardware Remapping option.
Once checked, the MIDI assign button at the top of the main Serato DJ Pro interface will become available for you to start remapping.
You can save, edit or delete MIDI presets in the MIDI tab of the SETUP screen. Clicking Restore Defaults will erase any custom mappings for all connected devices and revert their functions back to default.
Help
Show Tooltips
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Show Tooltips to enable Tooltips. Tooltips provide a handy way to learn the various features of Serato DJ Pro.
Move the mouse over a section of the software to bring up a context-sensitive tooltip that describes the feature.
Click on the Help button again to turn off Tooltips.
Show Shortcut Keys
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then click Show Shortcut Keys to launch a pop-up window displaying shortcut keyboard combinations.
These shortcuts can help you perform various actions quickly, such as triggering specific deck functions, controlling playback, or navigating the library.
Watch Tutorials
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Watch Tutorials to launch
your default internet browser and watch tutorials to help you get familiar with Serato DJ Pro.
Get Support
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Get Support to launch your default internet browser and navigate to the Serato DJ Pro knowledge base, where you can find helpful articles and guides on Serato DJ Pro. Alternatively, type keywords in the Search Help box to search the Serato DJ Pro knowledge base for specific, related topics.
