Setup
Licensing & software
This is a Serato DJ Lite hardware unlocked device, meaning it unlocks Serato DJ Lite when connected.
It is also a paid upgrade to Serato DJ Pro device, meaning it requires the purchase & activation of a Serato DJ Pro license, in order to be used with Serato DJ Pro.
You can try Serato DJ Pro, before making a purchase:
Please ensure you have the latest version of Serato DJ Pro installed:
Drivers & firmware
The Pioneer DJ DDJ-FLX4 does not require manufacturer-specific drivers on either Windows or Mac operating systems and is plug-and-play with Serato DJ Pro.
Overview
| # | DDJ-FLX4 CONTROL | FUNCTION |
| 1 | USB | Connect USB power |
| 2 | USB | Connect USB cable to PC |
| 3 | MASTER OUTPUT | Master output (RCA) to speakers |
| 4 | MIC INPUT | Connect microphone via TRS |
| 5 | MIC (ATT.) |
Turn to adjust microphone attenuation |
| 6 | KENSINGTON LOCK | Connect Kensington Lock to secure the device |
| 7 | HEADPHONES | Connect headphones via a 1/8" audio output |
| # | DDJ-FLX4 CONTROL | FUNCTION |
SHIFT |
| 1 | IN | Set or Edit Loop in point | - |
| 2 | OUT | Set or Edit Loop out point | Press to toggle between Jog and Vinyl mode for jog wheel |
| 3 | 4 BEAT / EXIT | Press to toggle 4 Beat Autoloop on/off | Press to toggle loop active/ inactive |
| 4 | 1/2X | Halve Active Loop / Select Previous Loop Slot | - |
| 5 | 2X | Double Active Loop / Select Next Loop Slot | - |
| 6 | SYNC |
Press to turn SYNC on (per deck). Press and hold to disable SYNC (per deck) |
Toggle tempo range (per deck) |
| 7 | MIC LEVEL | Turn to adjust the microphone level | - |
| 8 | LOAD 1 | Load selected track to Deck 1 | Sort track list by BPM column |
| 9 | BROWSE | Turn to scroll library. Press in to toggle forward between the crate & track area | Fast Library scroll |
| 10 | CHANNEL (SECTION) | Adjust level, and adjust EQ (High, Mid, Low) | - |
| 11 | LOAD 2 | Load selected track to Deck 2 | Sort track list by Artist column |
| 12 | MASTER (SECTION) | Adjust master output volume and toggle master channel CUE for headphone monitoring | - |
| 13 | JOG WHEEL | Turn jog to bend pitch, or control waveform within Serato DJ in vinyl mode | Fast track waveform scroll |
| 14 | TEMPO SLIDER | Adjust tempo/pitch | Ignore tempo/pitch adjustment |
| 15 | PERFORMANCE PADS (SECTION) |
SEE PERFORMANCE PADS FOR MORE INFORMATION | - |
| 16 | BEAT FX (SECTION) | SEE FX SECTION FOR MORE INFORMATION | - |
| 17 | CHANNEL FADER | Adjust channel volume (per channel) | Channel fader start (per channel) |
| 18 | CROSSFADER | Crossfade audio between channels 1-2 | Crossfader start |
| 19 | CHANNEL CUE | Toggle channel cue for monitoring | - |
| 20 | SMART FADER |
Press the Smart Fader button to engage or disengage the desired FX. Close channel fader, or crossfader, to apply FX in increasing amounts while track gain fades out, allowing for smooth transitions |
Press repeatedly to select between preconfigured Echo or Reverb FX |
| 21 | HEADPHONES (SECTION) |
Adjust headphone level, and adjust headphone cue/master mix | - |
| 22 | SMART CFX (SECTION) |
Press Smart CFX to engage or disengage desired FX. Turn CFX filter control left or right for High Pass Filter and Low Pass Filter, respectively, while Smart Channel FX is applied in increasing amounts. Track gain fades out as filter control reaches maximum state, allowing for smooth transitions |
Press Smart CFX repeatedly to select between preconfigured Echo or Reverb FX |
| 23 | PLAY / PAUSE | Toggles Play/Pause on selected deck | Stutter play |
| 24 | CUE | Cues from temp cue point/Set temp cue point | Load previous track |
| 25 | SHIFT | Shift modifier, which can be held while using another control for the secondary SHIFT function | Stutter play |

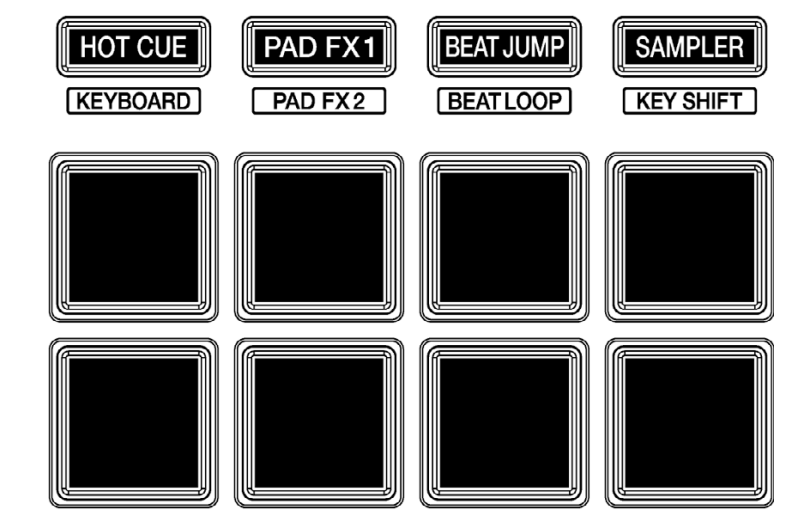

Performance Pads
The Pioneer DJ DDJ-FLX4 comes with 8 performance pads that can be used across 8 different
performance pad modes.
The first 4 modes can be triggered by pressing the performance pad mode button of the same name once and consist of:
HOT CUE mode: Pads 1-8 trigger Serato DJ Pro Cue points, and if no Cue point is present on that slot/pad, pressing that pad will set a Cue point. Holding the SHIFT button while pressing a populated pad will delete the Cue point from the respective pad/slot.
PAD FX 1 mode: Pad FX 1 mode allows the user to trigger quick and powerful preconfigured FX in an intuitive manner. Pads 1-4 can be pressed and held to apply FX, whereas pressing pads 5-8 toggle FX that are applied until the pad is pressed again (toggle). Pads 1-4 consist of Echo, Flanger, Reverb, and Repeater, while pads 5-8 consist of Echo Out, Backspin, Braker, and Rollout.
BEAT JUMP mode: Press pads 1 and 4 perform Beat Jump left & right respectively, while pads 2 & 3 halve and double the Beat Jump size. Pad 5 loads the previous track, pads 6 & 7 perform rewind or fast-forward transport functions, and pad 8 censors the playing track. Holding SHIFT while pressing pad 8 toggles reverse playback.
SAMPLER mode: Press pads 1-8 in this mode to trigger samples loaded into the Serato DJ Pro Sampler.
Holding SHIFT while pressing a Pad will stop a currently playing Sampler slot or load a new sample into it if it is empty.
The second 4 modes are as follows:
PITCH PLAY mode: Press the HOT CUE mode button while holding SHIFT to enter Pitch Play mode. Pads 1-8 play Cue points over variable pitch ranges in this mode.
See the ‘Pitch Play’ section for more information.
NOTE: Pitch Play mode requires the Serato Pitch ‘n’ Time DJ expansion pack to be activated & enabled.
LOOP ROLL mode: Press the PAD FX1 mode button while holding SHIFT to enter Loop Roll mode. Holding Pads 1-8 activates a loop roll of varying sizes. Release the pad to exit the Loop Roll.
AUTO LOOP mode: Press the BEAT JUMP mode button while holding SHIFT to enter Auto Loop mode. In this mode, pads 1-8 trigger an Auto Loop of varying sizes. Press the same pad for a second time to exit an Auto Loop.
KEY SHIFT mode: Press the SAMPLER mode button while holding SHIFT to enter Key Shift mode. In this mode, pads 1-8 shift the key of the playing track over variable pitch ranges.
See the ‘Key Shift’ section for more information.
NOTE: Key Shift mode requires the Serato Pitch ‘n’ Time DJ expansion pack to be activated & enabled.
Pitch Play
There are 3 key ranges to choose from, and the following tables show the pitched key ranges (in Semitones) while using the 8 performance pads in Pitch Play mode.
The root keypad (0) is always lit white, which will play the cue point at its regular pitch.
Use the Parameter Left & Right buttons (only available on certain devices) to move the Key Range up or down.
In Pitch Play mode, pressing a pad will pitch the currently selected cue point up or down the following ranges:
Up Range: (Up 7 Semitones)
| +4 | +5 | +6 | +7 |
| 0 | +1 | +2 | +3 |
Middle Range: (Up 3/Down 4 Semitones)
| 0 | +1 | +2 | +3 |
| -4 | -3 | -2 | -1 |
Down Range: (Down 7 Semitones)
| -3 | -2 | -1 | 0 |
| -7 | -6 | -5 | -4 |
When Pitch Play mode is first enabled, the middle range is selected. Pitch Play mode will default back to the middle range if a new track is loaded. The selected range is recalled if another pad mode is selected, then
the user switches back to Pitch Play mode.
Pitch Play can only pitch one Cue point at a time. To change the selected Cue, hold the SHIFT button and press a performance pad where the cue point you want to select would be (as shown in the HOT CUE performance pad mode).
While holding SHIFT, press the corresponding performance pad for:
| Cue 1 | Cue 2 | Cue 3 | Cue 4 |
| Cue 5 | Cue 6 | Cue 7 | Cue 8 |
The selected cue point defaults to Cue Point 1 on track load, even if instant doubled. A new cue point will be created if a pad with no cue point is selected. Deleting a cue point is not possible in Pitch Play mode.
NOTE: Pitch Play mode is available once the Pitch 'n Time DJ Expansion Pack has been activated in the Expansions window, under the My Account drop-down. Then ensure Pitch 'n Time DJ is checked in the Expansion Pack tab of the Setup screen.
Key Shift
Holding SHIFT and pressing the SAMPLER performance pad mode button on the Pioneer DJ DDJ-FLX4 will enable Key Shift mode. In this mode, you can shift the key of the playing track over variable pitch ranges.
There are 3 key ranges to choose from, and the following tables show the pitched key ranges (in Semitones) while using the 8 performance pads in Key Shift mode.
The root key (pad 0) is always lit, which will play the corresponding track at its regular pitch. In Key Shift mode, pressing a pad will pitch the currently playing track up or down as per the following ranges:
Up Range: (Up 7 Semitones)
| +4 | +5 | +6 | +7 |
| 0 | +1 | +2 | +3 |
Middle Range: (Up 3/Down 4 Semitones)
| 0 | +1 | +2 | +3 |
| -4 | -3 | -2 | -1 |
Down Range: (Down 7 Semitones)
| -3 | -2 | -1 | 0 |
| -7 | -6 | -5 | -4 |
When Key Shift mode is first enabled, the middle range is selected. If a new track is loaded, the range will default to the middle range. The range is recalled if you navigate to another pad mode and then back to Key Shift mode.
To sync or reset the key of the playing track or adjust the pitch range, hold the SHIFT button and press a
performance pad as outlined in the table below:
|
PAD 1 Key Sync |
PAD 2 Key Reset |
PAD 3 - |
PAD 4 - |
|
PAD 5 - |
PAD 6 - |
PAD 7 Range down |
PAD 8 Range up |
NOTE: Key Shift mode is available once the Pitch ‘n Time DJ Expansion Pack has been activated in the Expansions window under the My Account drop-down. Ensure “Enable Pitch ‘n Time DJ” is checked in the Expansion Pack tab of the SETUP screen.
DJ-FX
The FX panel button is displayed in the top left area of the main Serato DJ Pro screen, click on this to toggle the DJ-FX panel.
With the DJ-FX panel open, you have control of two DJ-FX units, and if your hardware supports it, Channel FX, which can be applied to tracks played through your connected Serato DJ-hardware.
Both DJ-FX & Channel FX can be controlled with your mouse, by using dedicated controls on your hardware (where available), or by MIDI mapping controls to the respective software functions.
Learn more about how to use DJ-FX & Channel FX:
| DDJ-FLX4 CONTROL | FX FUNCTION |
SHIFT |
| 1 / 2 / 1&2 | Move the slider to assign FX Unit 1 output to either Deck 1, 2, or both 1 & 2 |
- |
| FX SELECT |
Press to cycle forward FX Slot 1 FX Unit 1 selection |
Press to toggle between Jog and Vinyl mode for the jog wheel |
| TIME/PARAMETER | Press left or right to adjust Beats Multiplier value | Press left button to reset Tap FX Tempo value. Press right button repeatedly to set the Tap Tempo FX value |
| LEVEL/DEPTH |
Turn to adjust the level/depth of FX Slot 1 FX Unit 1 |
- |
| FX ON / OFF |
Turn FX on/off of FX Slot 1 FX Unit 1 |
- |
Beat Jump
To activate Beat Jump, open the Setup screen, navigate to the DJ preferences tab and turn on “Show Beat Jump Controls”.
When you close the Setup screen, you will see Beat Jump controls underneath the existing Auto Loop values on each deck. Checking this box will turn on Beat Jump features in the deck area and let you control Beat Jump from your supported Serato DJ Pro hardware.
When the Beat Jump option is enabled, performance pad modes AUTO LOOP or ROLL mode (where applicable) will use the bottom row of 4 pads (pads 5-8) as Beat Jump controls. This is designed to mirror the change in the deck Auto Loop area (from 8 Auto Loop sizes to 4 Auto Loop sizes + Beat Jump controls).
MIDI
The MIDI feature in Serato DJ Pro allows you to remap Serato DJ Pro software functions to your primary Serato controller, interface or mixer. You can also assign controls to a secondary MIDI controller to further enhance your performance.
For more information on MIDI mapping with Serato DJ Pro, click here.
To remap your supported Serato device, open the SETUP screen and click the MIDI tab. If your Serato device supports hardware remapping, it will appear in the MIDI DEVICES list.
Select your connected device from the MIDI DEVICES list and check the Allow Serato Hardware Remapping option.
Once checked, the MIDI assign button at the top of the main Serato DJ Pro interface will become available for you to start remapping.
You can save, edit or delete MIDI presets in the MIDI tab of the SETUP screen. Clicking Restore Defaults will erase any custom mappings for all connected devices and revert their functions back to default.
Help
Show Tooltips
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Show Tooltips to enable Tooltips. Tooltips provide a handy way to learn the various features of Serato DJ Pro.
Move the mouse over a section of the software to bring up a context-sensitive tooltip that describes the feature.
Click on the Help button again to turn off Tooltips.
Show Shortcut Keys
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then click Show Shortcut Keys to launch a pop-up window displaying shortcut keyboard combinations.
These shortcuts can help you perform various actions quickly, such as triggering specific deck functions, controlling playback, or navigating the library.
Watch Tutorials
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Watch Tutorials to launch
your default internet browser and watch tutorials to help you get familiar with Serato DJ Pro.
Get Support
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Get Support to launch your default internet browser and navigate to the Serato DJ Pro knowledge base, where you can find helpful articles and guides on Serato DJ Pro. Alternatively, type keywords in the Search Help box to search the Serato DJ Pro knowledge base for specific, related topics.
