Setup
Licensing & software
This is a Serato DJ Pro hardware unlocked device, meaning it unlocks Serato DJ Pro when connected.
It is also a Serato DVS hardware unlocked device, meaning it unlocks Serato DVS functionality when connected.
Please ensure you have the latest version of Serato DJ Pro installed:
Drivers & firmware
The RANE SEVENTY-TWO does not require manufacturer-specific drivers on Mac operating systems and is plug-and-play with Serato DJ Pro. You may be asked to install the RANE Control Panel, which allows you to adjust mixer settings.
On Windows, you will need to install a driver available from RANE’s website, or when prompted after opening Serato DJ Pro, while the mixer is connected.
We also recommend installing the latest firmware for the Rane Seventy-Two, which can be found on RANE's website.
Overview

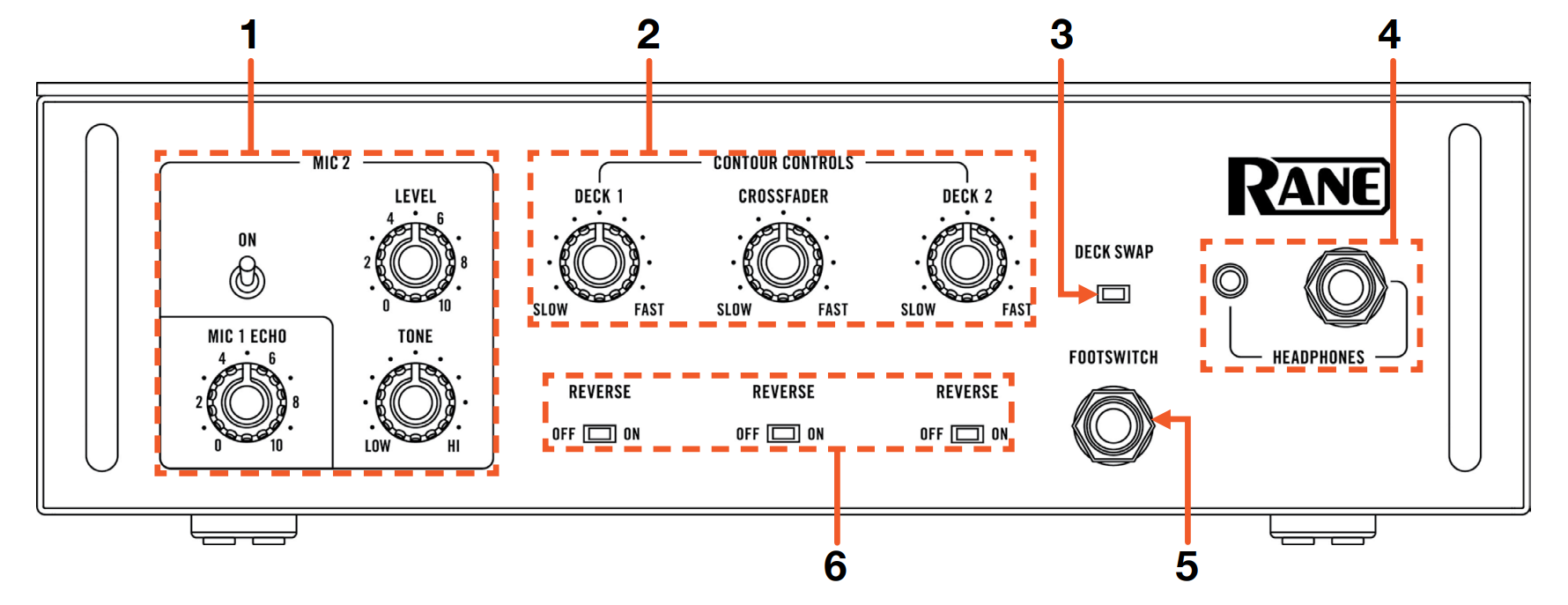

| # | SEVENTY-TWO CONTROL | FUNCTION |
| 1 | MIC 2 CONTROL / MIC 1 ECHO | Turn on Mic 2 input, adjust level, tone & apply Mic 1 Echo effect |
| 2 | CONTOUR CONTROLS | Adjust channel & crossfader contours |
| 3 | DECK SWAP |
When set to On, the left and right channel faders are swapped |
| 4 | HEADPHONES | Connect headphones to 3.5mm and 6.5mm outputs |
| 5 | FOOTSWITCH | Connect 6.5mm foot switch control device |
| 6 | REVERSE | Toggle reverse of respective channel and crossfaders |

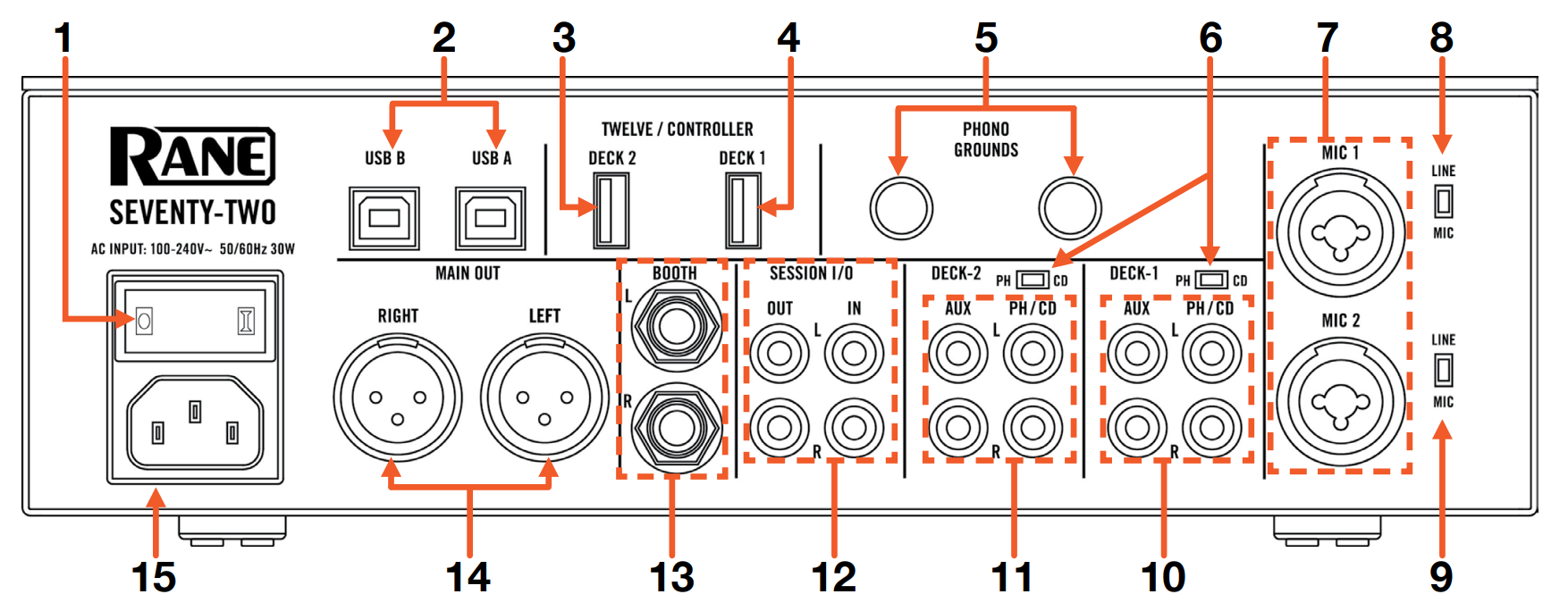

| # | SEVENTY-TWO CONTROL | FUNCTION |
| 1 | POWER SWITCH | Turn on Seventy-Two |
| 2 | USB PORT A / B | Connect USB cable from PC |
| 3 | DECK 2 USB ACCESSORY PORT | Connect Rane Twelve or other USB accessory |
| 4 | DECK 1 USB ACCESSORY PORT | Connect Rane Twelve or other USB accessory |
| 5 | PHONO GROUNDING POST | Connect grounding cable from phono turntable connected to Deck 1 or Deck 2 |
| 6 | PHONO / CD SWITCH | Change Deck 1 or Deck 2 between PHONO or CD input |
| 7 | MIC INPUT | Microphone 1 & 2 1/8” & 1/4” input |
| 8 | LINE / MIC SWITCH 1 | Toggle between using Mic input 1 as Line or Mic level inputs |
| 9 | LINE / MIC SWITCH 2 | Toggle between using Mic input 2 as Line or Mic level inputs |
| 10 | DECK 1 INPUTS | AUX or PHONO/CD channel inputs |
| 11 | DECK 2 INPUTS | AUX or PHONO/CD channel inputs |
| 12 | SESSION I/O | Connect input or output devices |
| 13 | BOOTH OUT | 1/4” / 6.5mm booth output |
| 14 | MAIN OUT | XLR output |
| 15 | AC IN | AC power input |
| # |

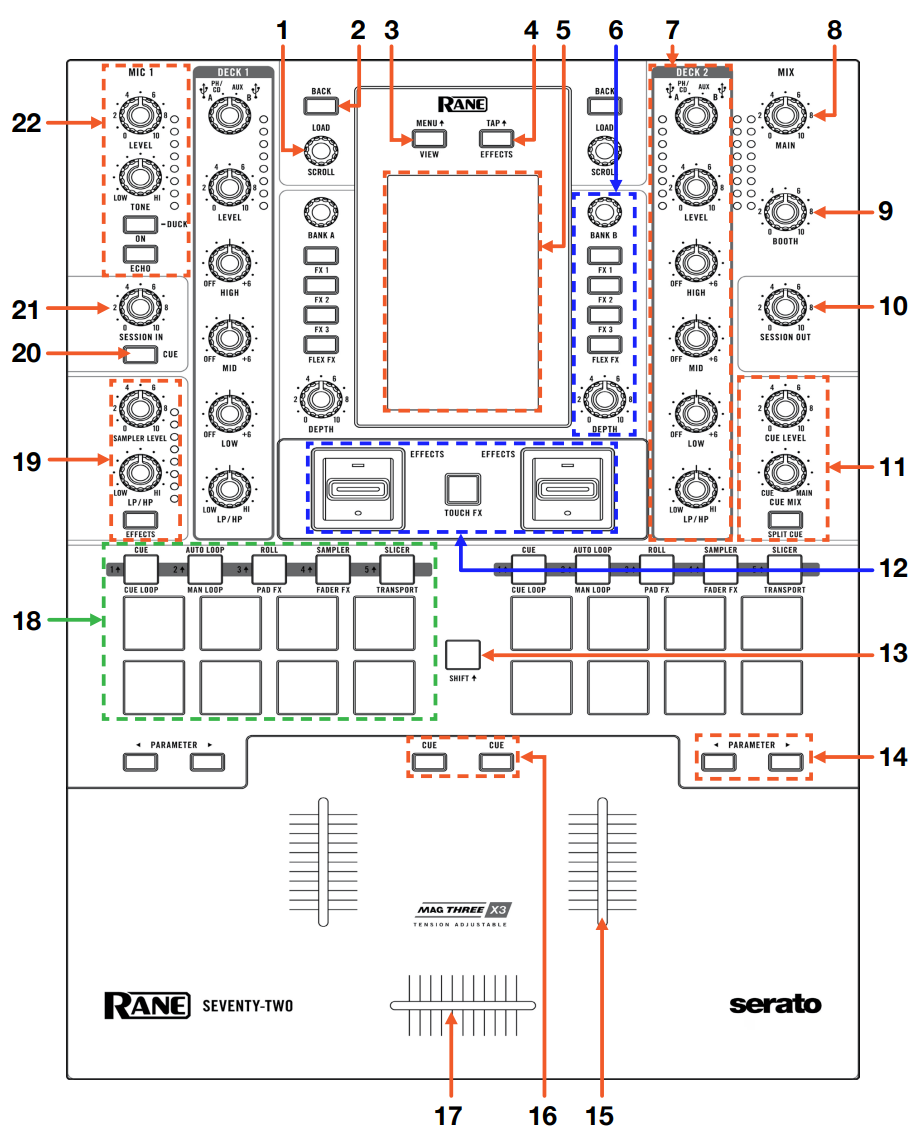

SEVENTY-TWO CONTROL |
FUNCTION |
SHIFT FUNCTION |
| 1 | SCROLL | Turn to scroll Library, press in to load track to respective deck, double press in to instant double | Turn for Fast Library scroll |
| 2 | BACK | Toggles focus between Library & Crate list | Toggle focus to The Prepare panel |
| 3 | VIEW | Cycle between Library & Waveform view | Show Seventy-Two mixer MENU |
| 4 | EFFECTS | Show Effects section on Display | Tap BPM |
| 5 | DISPLAY | Displays mixer information | - |
| 6 | FX SECTION | SEE FX FOR MORE INFORMATION | - |
| 7 |
CHANNEL SECTION |
Channel selector, gain, EQ & filter controls per deck | - |
| 8 | MAIN | Adjusts master volume output | - |
| 9 | BOOTH | Adjusts booth volume output | - |
| 10 | SESSION OUT | Adjusts Session Out level | - |
| 11 | CUE SECTION | Adjust cue level, cue mix, and toggle split cue | - |
| 12 | FX TOGGLE & TOUCH FX | Toggle FX with paddle switch by latch (switch up), or momentary (switch down and hold), & toggle Touch FX | - |
| 13 | SHIFT | Used with other controls that have SHIFT modifier functions | - |
| 14 | PARAMETER LEFT/RIGHT | Adjust parameters in performance pad modes per deck | - |
| 15 | CHANNEL FADER | Channel volume | - |
| 16 | CHANNEL CUE | Cues selected channel for headphone monitoring | - |
| 17 | CROSSFADER | Crossfade audio between channels A & B | - |
| 18 | PERFORMANCE PAD SECTION | SEE PERFORMANCE PADS FOR MORE INFORMATION | - |
| 19 | SAMPLER SECTION | Adjust Sampler level, filter, toggle effects | - |
| 20 | SESSION CUE | Monitor Session In | - |
| 21 | SESSION IN | Adjust Session In level | - |
| 22 | MIC 1 SECTION | Adjust Mic 1 level, tone, toggle on/off & echo | - |

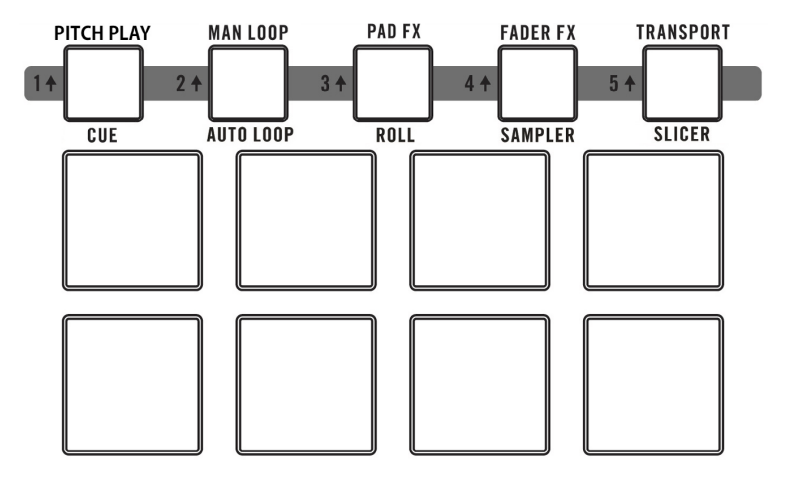

Performance Pads
The Rane Seventy-Two comes with 8 RGB Performance Pads per deck, which can be used in 13 different pad modes, and 2 further user-mappable pad modes.
The first 5 modes can be accessed by pressing the pad mode buttons once, and are as follows:
CUE mode: Pads 1-8 trigger Serato DJ Pro Cue points, and if no Cue point is present on that slot/pad, pressing the pad will set a Cue point. Holding SHIFT while pressing a pad will clear the Cue point from that pad/slot.
AUTOLOOP mode: Pads 1-8 trigger Autoloops of varying sizes, and pressing that same pad again will deactivate that Autoloop. Press the Parameter Left & Right buttons to decrease or increase the Autoloop size, and press the Parameter Left & Right buttons while holding SHIFT to move the loop left or right. Use the ‘Shift Autoloop range’ controls in Serato DJ Pro to change the 8 selected loop size options.
ROLL mode: Holding pads 1-8 activates a loop roll of varying sizes. Release the pad to exit the Loop Roll. Use the ‘Shift Autoloop range’ controls in Serato DJ Pro or the Parameter Left & Right buttons on the mixer to change the 8 selected loop roll size options.
SAMPLER mode: Press pads 1-8 to trigger samples loaded into the Serato DJ Pro Sampler. Hold SHIFT while pressing a pad to stop the sample playback once triggered, or load a sample to the respective Sampler slot if no sample is loaded. Press the Parameter Left & Right buttons to change through Sampler Banks A/B/C/D, and hold SHIFT while pressing them to change the Sampler output 1/2/A/M.
SLICER mode: A specified range (or domain) is divided into eight equal sections, and these eight sliced sections are assigned to the respective performance pads (1-8). The domain shifts as the track duration elapses. Pressing pads 1-8 triggers the respective ‘slice’. Press Parameter Left & Right to set the quantization for the slicer function, which can be set in four ways: 1/8, 1/4, 1/2, and 1. Hold SHIFT while pressing Parameter Left & Right to change the domain size.
The following 5 modes can be accessed by pressing the respective pad mode button twice and are as follows:
PITCH PLAY mode: Press the ‘CUE’ mode button twice to enter PITCH PLAY mode. In this mode, pads 1-8 play Cue points over variable pitch ranges. See the ‘Pitch Play’ section for more information.
MANUAL LOOP mode 1: Press the ‘AUTOLOOP’ mode button twice to enter MANUAL LOOP mode 1. In this mode, pads 1-4 select loop slots 1-4 (or save a loop to the respective slot if empty), while pad 5 sets the Loop In point, pad 6 sets the Loop Out point, pad 7 toggles between Loop On/Off, and pad 8 retriggers the Loop. Holding SHIFT while pressing pads 1-4 will remove the saved loop from its respective slot. Press the Parameter Left & Right buttons to decrease or increase the loop size, and press the Parameter Left & Right buttons while holding SHIFT to move the loop left or right. Use the ‘Shift Autoloop range’ controls in Serato DJ Pro to change the 8 selected loop size options.
PAD FX mode: Press the ‘ROLL’ mode button twice to enter PAD FX mode, which offers predetermined, combined FX at the touch of a pad. For further information, refer to the Rane user manual.
FADER FX mode: Press the ‘SAMPLER’ mode button twice to enter FADER FX mode, which offers predetermined fader FX while holding the pads. For further information, refer to the Rane user manual.
TRANSPORT mode: Press the ‘SLICER’ mode button twice to enter TRANSPORT mode. In this mode, you can control virtual deck transport operations. Pads 1 & 2 control Pitch Bend down & up, and Pads 3 & 4 control Pitch Nudge down & up, while holding SHIFT and pressing pad 3 or 4 will reset the pitch to zero. Pad 5 toggles Keylock (or Pitch ‘n Time DJ if enabled), and holding SHIFT while pressing pad 5 toggles between INT and REL or ABS playback modes. Pressing pad 6 turns on SYNC, and holding SHIFT while pressing pad 6 disables SYNC. Pad 7 triggers the TEMP CUE or sets one if none is present on the loaded track. Holding SHIFT while pressing pad 7 will return to the start of the track, and pressing it quickly again will load the previous track. Finally, pressing pad 8 toggles between play and paused states, and pressing it while holding SHIFT toggles Stutter Play.
The final 5 modes can be accessed by holding SHIFT and pressing the respective pad mode button:
USER mode 1: Press the ‘CUE’ mode button while holding SHIFT to enter USER mode 1. In this mode, you can assign pads 1-8 to different functions inside Serato DJ Pro using the MIDI mapping feature and save it as your own pad mode. Refer to the MIDI Mapping with Serato DJ Pro article for more information on mapping MIDI functions.
MANUAL LOOP mode 2: Press the ‘AUTOLOOP’ mode button while holding SHIFT to enter MANUAL LOOP mode 2. In this mode, pads 5-8 select loop slots 5-8 (or save a loop to the respective slot if empty), while pad 5 sets the Loop In point, pad 6 sets the Loop Out point, pad 7 toggles between Loop On/Off, and pad 8 retriggers the Loop. Holding SHIFT while pressing pads 1-4 will remove the saved loop from its respective slot. Press the Parameter Left & Right buttons to decrease or increase the loop size, and press the Parameter Left & Right buttons while holding SHIFT to move the loop left or right. Use the ‘Shift Autoloop range’ controls in Serato DJ Pro to change the 8 selected loop size options.
USER mode 2: Press the ‘ROLL’ mode button while holding SHIFT to enter USER mode 2. In this mode, you can assign pads 1-8 to different functions inside Serato DJ Pro using the MIDI mapping feature and save it as your own pad mode. Refer to the MIDI Mapping with Serato DJ Pro article for more information on mapping MIDI functions.
SAVED FLIP mode: Press the ‘SAMPLER’ mode button while holding SHIFT to enter SAVED FLIP mode. In this mode, pressing pads 1-6 triggers saved Flips from saved Flip slots 1-6. Holding SHIFT while pressing pads 1-6 will turn the respective Flip on, and pressing it again will turn the Flip off.
SLICER LOOP mode: Press the ‘SLICER’ mode button while holding SHIFT to enter SLICER LOOP mode. In this mode, a specified range (or domain) is divided into eight equal sections, and these eight sliced sections are assigned to the respective performance pads (1-8). However, unlike SLICER mode, the domain does not shift and is a static ‘loop’. Press pads 1-8 to trigger the respective ‘slice’, while pressing the Parameter Left & Right buttons to set the quantization for the slicer function, which can be set in four ways: 1/8, 1/4, 1/2, and 1. Hold SHIFT while pressing the Parameter Left & Right buttons to change the domain size.
DJ-FX
The FX panel button is displayed in the top left area of the main Serato DJ Pro screen, click on this to toggle the DJ-FX panel.
With the DJ-FX panel open, you have control of two DJ-FX units, and if your hardware supports it, Channel FX, which can be applied to tracks played through your connected Serato DJ-hardware.
Both DJ-FX & Channel FX can be controlled with your mouse, by using dedicated controls on your hardware (where available), or by MIDI mapping controls to the respective software functions.
Learn more about how to use DJ-FX & Channel FX:
The Rane Seventy-Two allows for a myriad of FX, via both built-in hardware FX and control of Serato DJ
Pro’s software FX. The large display built into the mixer lets you see FX information at a glance.
This guide will focus on controlling the software FX. For detailed information on using the hardware FX, please refer to the RANE Seventy-Two user guide.

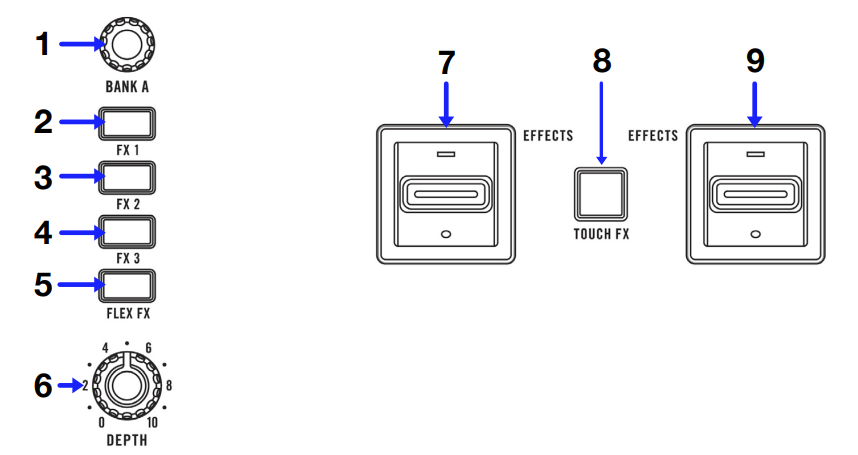

Controls
| # |
FX CONTROL |
FX FUNCTION |
| 1 | BANK A / B | Turn to adjust DJ-FX Parameter 1 or select DJ-FX 1. Press the knob to toggle between FX selection and FX parameter adjustments |
| 2 | FX 1 | ARM FX 1 (Lit when armed). Use the Effects switch to turn on |
| 3 | FX 2 | ARM FX 2 (Lit when armed). Use the Effects switch to turn on |
| 4 | FX 3 | ARM FX 3 (Lit when armed). Use the Effects switch to turn on |
| 5 | FLEX FX | Press to engage Flex FX |
| 6 | DEPTH | Turn to increase Flex FX depth |
| 7 | EFFECTS SWITCH 1 | Pull up to latch effects or push down and hold for momentary effects |
| 8 | TOUCH FX | Used to engage hardware Touch FX. Refer to Rane Seventy-Two user guide for more information |
| 9 | EFFECTS SWITCH 2 | Pull up to latch effects or push down and hold for momentary effects |

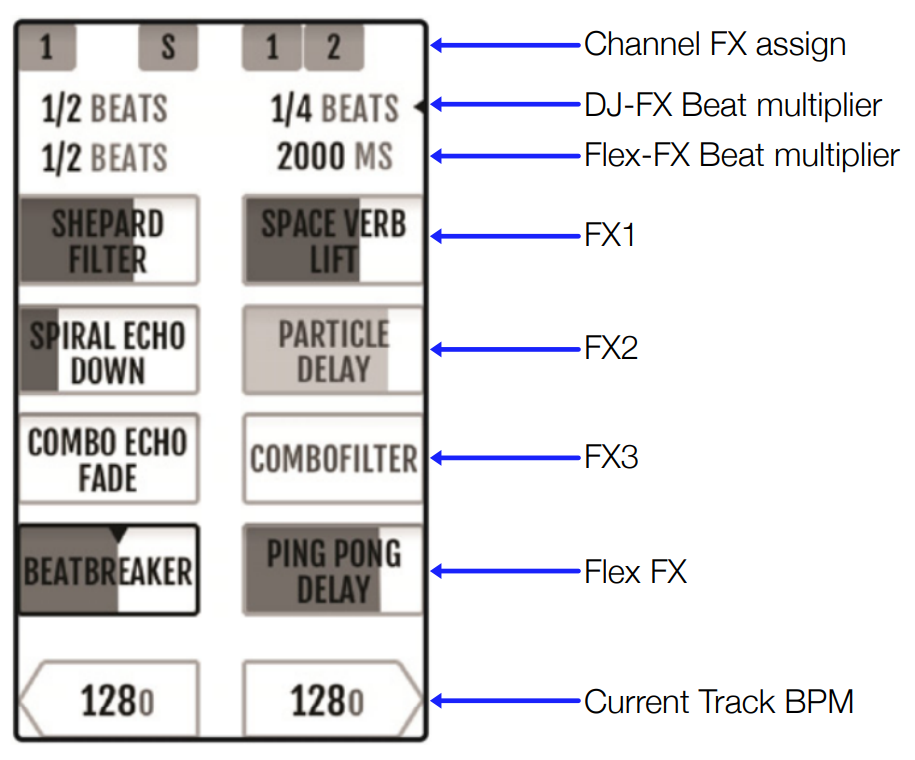

Using the FX
- Tap the effect you wish to manipulate on the display. Once successfully selected, the effect will be highlighted with a white border.
- Turn the Bank A or B knob to change the depth for that effect. Then press the FX1/2/3 button corresponding to the FX you wish to arm.
- Push the Effects switch up for a latch (perpetual) effect, or pull it down and hold for a momentary
(temporary) effect. - Tap the DJ-FX Beat Multiplier on the display, then turn the BANK A or B knob to adjust FX timing if desired.
- Tap the Channel FX assign on the display to assign FX to channels per FX Bank (Channels 1, 2, or
Sampler), then press ‘Ok’ to confirm. - Tap the ‘Flex FX’ button to engage Flex FX. Tap the Flex FX on the display, then push the BANK A or B knob and turn to change Flex FX. Use the Depth knob to adjust the Flex FX amount. This allows for postfader FX to be applied.
Pitch Play
There are 3 key ranges to choose from, and the following tables show the pitched key ranges (in Semitones) while using the 8 performance pads in Pitch Play mode.
The root keypad (0) is always lit white, which will play the cue point at its regular pitch.
Use the Parameter Left & Right buttons to move the Key Range up or down.
In Pitch Play mode, pressing a pad will pitch the currently selected cue point up or down the following ranges:
Up Range: (Up 7 Semitones)
| +4 | +5 | +6 | +7 |
| 0 | +1 | +2 | +3 |
Middle Range: (Up 3/Down 4 Semitones)
| 0 | +1 | +2 | +3 |
| -4 | -3 | -2 | -1 |
Down Range: (Down 7 Semitones)
| -3 | -2 | -1 | 0 |
| -7 | -6 | -5 | -4 |
When Pitch Play mode is first enabled, the middle range is selected. Pitch Play mode will default back to the middle range if a new track is loaded. The selected range is recalled if another pad mode is selected, then
the user switches back to Pitch Play mode.
Pitch Play can only pitch one Cue point at a time. To change the selected Cue, hold the SHIFT button and press a performance pad where the cue point you want to select would be (as shown in the HOT CUE performance pad mode).
While holding SHIFT, press the corresponding performance pad for:
| Cue 1 | Cue 2 | Cue 3 | Cue 4 |
| Cue 5 | Cue 6 | Cue 7 | Cue 8 |
The selected cue point defaults to Cue Point 1 on track load, even if instant doubled. A new cue point will be created if a pad with no cue point is selected. Deleting a cue point is not possible in Pitch Play mode.
NOTE: Pitch Play mode is available once the Pitch 'n Time DJ Expansion Pack has been activated in the Expansions window, under the My Account drop-down. Then ensure Pitch 'n Time DJ is checked in the Expansion Pack tab of the Setup screen.
Flip
Flip is an Expansion Pack for Serato DJ Pro. Flip controls are only available once the Expansion pack has been purchased and activated. The Expansion pack can be bought via Serato.com -https://serato.com/dj/pro/expansions
Please check out our Flip User Guide for more information on using Flip.
DVS
When connected, this Serato DVS hardware unlocked device allows you to use connected turntables, media players or CD players to control Serato DJ Pro using NoiseMap™ Control Tone.
Find out more about Serato DVS:
Beat Jump
To activate Beat Jump, open the Setup screen, navigate to the DJ preferences tab and turn on “Show Beat Jump Controls”.
When you close the Setup screen, you will see Beat Jump controls underneath the existing Auto Loop values on each deck. Checking this box will turn on Beat Jump features in the deck area and let you control Beat Jump from your supported Serato DJ Pro hardware.
When the Beat Jump option is enabled, performance pad modes AUTO LOOP or ROLL mode (where applicable) will use the bottom row of 4 pads (pads 5-8) as Beat Jump controls. This is designed to mirror the change in the deck Auto Loop area (from 8 Auto Loop sizes to 4 Auto Loop sizes + Beat Jump controls).
MIDI
The MIDI feature in Serato DJ Pro allows you to remap Serato DJ Pro software functions to your primary Serato controller, interface or mixer. You can also assign controls to a secondary MIDI controller to further enhance your performance.
For more information on MIDI mapping with Serato DJ Pro, click here.
To remap your supported Serato device, open the SETUP screen and click the MIDI tab. If your Serato device supports hardware remapping, it will appear in the MIDI DEVICES list.
Select your connected device from the MIDI DEVICES list and check the Allow Serato Hardware Remapping option.
Once checked, the MIDI assign button at the top of the main Serato DJ Pro interface will become available for you to start remapping.
You can save, edit or delete MIDI presets in the MIDI tab of the SETUP screen. Clicking Restore Defaults will erase any custom mappings for all connected devices and revert their functions back to default.
Help
Show Tooltips
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Show Tooltips to enable Tooltips. Tooltips provide a handy way to learn the various features of Serato DJ Pro.
Move the mouse over a section of the software to bring up a context-sensitive tooltip that describes the feature.
Click on the Help button again to turn off Tooltips.
Show Shortcut Keys
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then click Show Shortcut Keys to launch a pop-up window displaying shortcut keyboard combinations.
These shortcuts can help you perform various actions quickly, such as triggering specific deck functions, controlling playback, or navigating the library.
Watch Tutorials
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Watch Tutorials to launch
your default internet browser and watch tutorials to help you get familiar with Serato DJ Pro.
Get Support
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Get Support to launch your default internet browser and navigate to the Serato DJ Pro knowledge base, where you can find helpful articles and guides on Serato DJ Pro. Alternatively, type keywords in the Search Help box to search the Serato DJ Pro knowledge base for specific, related topics.
