Setup
Licensing & software
This is a Serato DJ Pro hardware unlocked device, meaning it unlocks Serato DJ Pro when connected.
It is also a Serato DVS hardware unlocked device, meaning it unlocks Serato DVS functionality when connected.
Please ensure you have the latest version of Serato DJ Pro installed:
Drivers & firmware
The Reloop ELITE does not require manufacturer-specific drivers on Mac or Windows operating systems and is plug-and-play with Serato DJ Pro. You may be asked to install a Control Panel, which allows you to adjust mixer settings.
We also recommend that you install the latest firmware for the Reloop ELITE, which can be found on Reloop’s website.
Overview
| # | ELITE CONTROL | FUNCTION |
| 1 | MIC SECTION | Adjust microphone volume, EQ, Echo & Talkover on/off |
| 2 | CONTOUR CONTROLS | Adjust channel & crossfader contours, and toggle reverse on/off |
| 3 | SAMPLER | Adjust Sampler volume |
| 4 | HEADPHONES | Toggle Headphone split on/off |
| 5 | HEADPHONE OUTPUT | Connect 6.5mm & 3.5mm headphone jack |
| 6 | AUX VOL | Adjust auxiliary volume |
| # | ELITE CONTROL | FUNCTION |
| 1 | POWER SWITCH | Toggle power on/off |
| 2 | KENSINGTON LOCK | Used to secure device |
| 3 | CH-2 INPUT | Connect RCA phono or line level device |
| 4 | CH-2 GND POST | Connect grounding wire from turntable for channel 1 |
| 5 | SESSION IN/OUT | Connect auxiliary input device or output for recording |
| 6 | CH-1 INPUT | Connect RCA phono or line level device |
| 7 | CH-2 GND POST | Connect grounding wire from turntable for channel 2 |
| 8 | USB PORT A / B | Connect a USB cable from PC |
| 9 | SMART LINK / USB HUB | Connect RP-8000 or USB accessory |
| 10 | MIC | Connect MIC input via TRS & adjust MIC level toggle |
| 11 | BOOTH | Connect TRS Booth output |
| 12 | MASTER 1 | Connect XLR Master output |
| 13 | MASTER 2 | Connect RCA Master output |
| 14 | AC IN | AC Power input |
| # | ELITE CONTROL | FUNCTION | SHIFT FUNCTION |
| 1 | CHANNEL EQ | Adjust High / Mid / Low EQ per channel | - |
| 2 | CHANNEL INPUT SELECTOR | Adjust source selection per channel | Focus Library select to PC 1 / USB A |
| 3 | LOAD 1 | Load selected track to deck 1 | Focus Library select to PC 2 / USB B |
| 4 | MASTER (SECTION) | Adjusts Master level, Stereo/Mono toggle & Booth level controls | - |
| 5 | BROWSE | Turn to scroll Library. Press in to toggle between Library & Crate panels | Turn for fast Library scroll |
| 6 | SMP FX | Send Sampler to FX Unit 2 (or FX Unit 1 for left-side control) | Send Auxiliary to FX Unit 2 (or FX Unit 1 for left-side control) |
| 7 | CHANNEL GAIN | Adjust channel gain | - |
| 8 | FX 1 | Turn on FX Parameter 1 | Recall FX Bank A |
| 9 | LOAD 2 | Load selected track to deck 2 | Focus Library select to PC 2 / USB B |
| 10 | CUE (SECTION) | Adjust Cue volume, Cue mix, or select Cue channel 1 / 2 | - |
| 11 | HOLD | Tap tempo to set time-based FX manually | - |
| 12 | TWEAK FX | Hardware FX. Refer to RELOOP documentation for further details | - |
| 13 | LOOP SIZE/SET | Turn to cycle available autoloop sizes, press in to activate autoloop of selected size | Turn to adjust keyshift value, press in to toggle key sync |
| 14 | MODE | Press to cycle hardware FX | Press to toggle between Internal / ABS or REL playback modes per deck |
| 15 | SHIFT | Press with other controls to use shift modifier | - |
| 16 | PARAMETER LEFT/RIGHT | Adjust parameter 1 in performance pad modes per deck | Adjust parameter 2 in performance pad modes, per deck |
| 17 | CHANNEL METER | Display channel metering | - |
| 18 | CROSSFADER | Crossfade audio between channel 1/2 | Fader start per channel 1/2 |
| 19 | CHANNEL FADER | Adjust channel volume | Fader start per channel 1/2 |
| 20 | PERFORMANCE PADS | SEE PERFORMANCE PADS SECTION FOR MORE INFORMATION | - |
| 21 | IN/OUT | Press once to set In point for manual loop, press again to set Out point for manual loop, press a third time to edit In point for manual loop | Press to edit Out point for manual loop |
| 22 | LOOP INDICATOR | Shows currently selected autoloop size. Solid LED indicates whole number loop size, flashing LED indicates fraction loop size | - |
| 23 | ON | Engage armed DJ-FX | - |
| 24 | BEATS | Turn to adjust beat timing for time-based FX, press in to reset to default value (1) | Turn to incrementally adjust FX BPM setting |
| 25 | LEVEL / DEPTH | Adjust level / depth of FX per channel | - |
| 26 | FX 2 | Turn on FX Parameter 2 | Recall FX Bank B |
| 27 | FX 3 | Turn on FX Parameter 3 | Save FX to current FX Bank |
| 28 | FX Unit Display | Display FX information per FX unit | - |

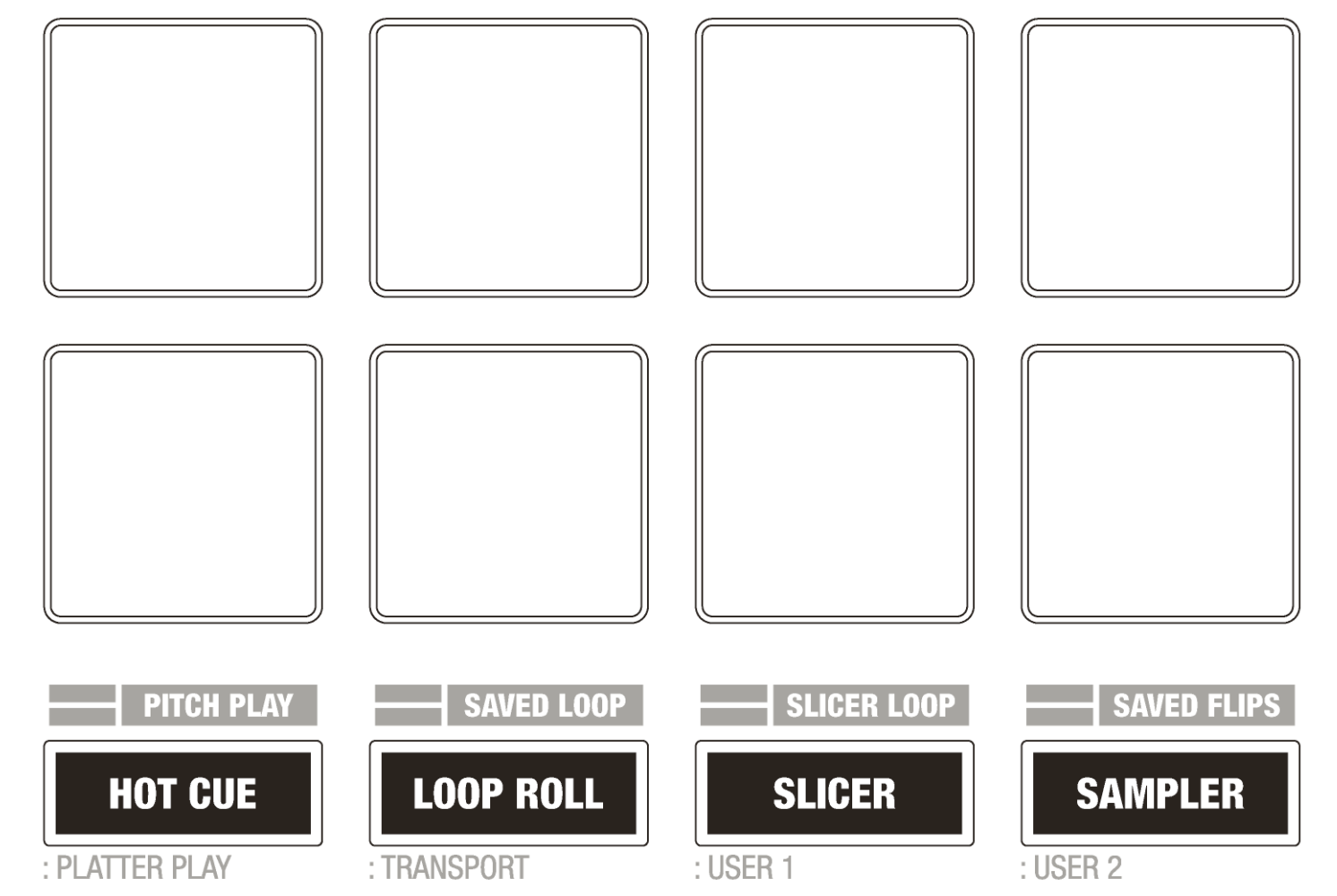

Performance Pads
The Reloop Elite comes with 8 RGB Performance Pads per deck (for a total of 16 pads), which can be used in 9 different Serato-integrated pad modes, and 3 hardware-based pad modes.
The first 4 modes can be accessed by pressing the pad mode buttons once, and are as follows:
HOT CUE mode: Pads 1-8 trigger Serato DJ Pro Cue points, and if no Cue point is present on that slot/pad, pressing the pad will set a Cue point. Holding SHIFT while pressing a pad will clear the Cue point from that pad/slot.
LOOP ROLL mode: Holding pads 1-8 activates a loop roll of varying sizes. Release the pad to exit the Loop Roll. Use the ‘Shift Autoloop range’ controls in Serato DJ Pro or the Parameter Left & Right buttons on the mixer to change the 8 selected loop roll size options.
SLICER mode: A specified range (or domain) is divided into eight equal sections, and these eight sliced sections are assigned to the respective performance pads (1-8). The domain shifts as the track duration elapses. Pressing pads 1-8 triggers the respective ‘slice’. Press Parameter Left & Right to set the quantization for the slicer function, which can be set in four ways: 1/8, 1/4, 1/2, and 1. Hold SHIFT while pressing Parameter Left & Right to change the domain size.
SAMPLER mode: Press pads 1-8 to trigger samples loaded into the Serato DJ Pro Sampler. Hold SHIFT while pressing a pad to stop the sample playback once triggered or load a sample to the respective Sampler slot if no sample is loaded. Press the Parameter Left & Right buttons to change through Sampler Banks A/B/C/D, and hold SHIFT while pressing them to change the Sampler output 1/2/A/M.
The next 4 modes can be accessed by pressing the respective pad mode button twice, and are as follows:
PITCH PLAY mode: Press the ‘HOT CUE’ mode button twice to enter PITCH PLAY mode. In this mode, pads 1-8 play Cue points over variable pitch ranges. See the ‘Pitch Play’ section for more information.
SAVED LOOP mode: Press the ‘AUTOLOOP’ mode button twice to enter SAVED LOOP mode. In this mode, pads 1-8 select saved loops and toggle them on/off. If the loop slot is empty, pressing a pad while a loop is active will save it to that slot. Holding SHIFT while pressing pads 1-8 will reloop the saved loop. Pressing the Parameter Left & Right buttons will decrease or increase the loop size.
SLICER LOOP mode: Press the ‘SLICER’ mode button twice to enter SLICER LOOP mode. In this mode, a specified range (or domain) is divided into eight equal sections, and these eight sliced sections are assigned to the respective performance pads (1-8). However, unlike SLICER mode, the domain does not shift and is a static ‘loop’. Press pads 1-8 to trigger the respective ‘slice’, while pressing the Parameter Left & Right buttons to set the quantization for the slicer function, which can be set in four ways: 1/8, 1/4, 1/2, and 1. Hold SHIFT while pressing Parameter Left & Right buttons to change the domain size.
SAVED FLIP mode: Press the ‘SAMPLER’ mode button while holding SHIFT to enter SAVED FLIP mode. In this mode, pressing pads 1-6 triggers saved Flips from saved Flip slots 1-6. Holding SHIFT while pressing pads 1-6 will turn the respective Flip on, and pressing it again will turn the Flip off.
The final 4 modes can be accessed by holding SHIFT and pressing the respective pad mode button (with the exception of PLATTER PLAY mode):
PLATTER PLAY mode: Refer to Reloop documentation for further information regarding this hardware-based mode, used in conjunction with a Reloop RP8000MK2 turntable.
TRANSPORT mode: Press the ‘LOOP ROLL’ mode button while holding SHIFT to enter TRANSPORT mode. In this mode, you can control virtual deck transport operations. Pad 1 & 2 control Pitch Bend down & up, Pad 3 & 4 control Pitch Nudge down & up, while holding SHIFT and pressing pad 3 or 4 will reset pitch to zero. Pad 5 toggles Keylock (or Pitch ‘n Time DJ if enabled). Pressing pad 6 turns on SYNC, and holding SHIFT while pressing pad 6 disables SYNC. Pad 7 triggers the TEMP CUE, or sets one if none is present on the loaded track. Holding SHIFT while pressing pad 7 will return to the start of the track, and pressing it quickly again will load the previous track. Finally, pressing pad 8 toggles between play and paused states, and pressing it while holding SHIFT triggers Stutter Play.
USER mode 1: Press the ‘SLICER’ mode button while holding SHIFT to enter USER mode 1. In this mode, you can assign pads 1-8 to different functions inside Serato DJ Pro using the MIDI mapping feature and save it as your own pad mode. Refer to the MIDI Mapping with Serato DJ Pro article for more information on how to map MIDI functions.
USER mode 2: Press the ‘SAMPLER’ mode button while holding SHIFT to enter USER mode 2. In this mode, you can assign pads 1-8 to different functions inside Serato DJ Pro using the MIDI mapping feature and save it as your own pad mode. Refer to the MIDI Mapping with Serato DJ Pro article for more information on how to map MIDI functions.
DJ-FX
The FX panel button is displayed in the top left area of the main Serato DJ Pro screen, click on this to toggle the DJ-FX panel.
With the DJ-FX panel open, you have control of two DJ-FX units, and if your hardware supports it, Channel FX, which can be applied to tracks played through your connected Serato DJ-hardware.
Both DJ-FX & Channel FX can be controlled with your mouse, by using dedicated controls on your hardware (where available), or by MIDI mapping controls to the respective software functions.
Learn more about how to use DJ-FX & Channel FX:
| # |

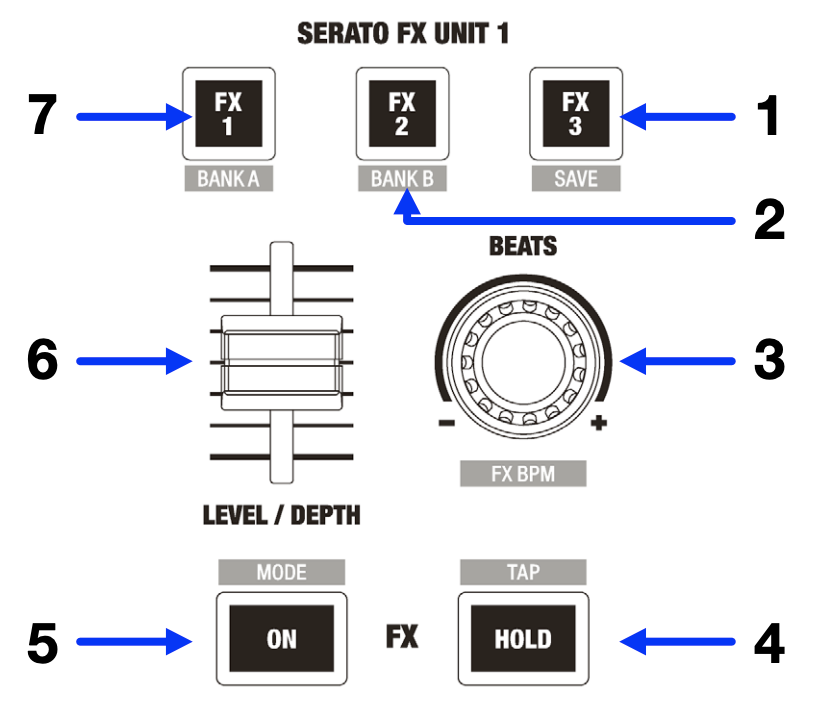

ELITE CONTROL |
FX FUNCTION |
| 1 | FX 3 | ARM FX 3 (Lit when armed). Use ON or HOLD buttons to engage FX |
| 2 | FX 2 | ARM FX 2 (Lit when armed). Use ON or HOLD buttons to engage FX |
| 3 | BEATS | Turn to cycle DJ-FX Beats multiplier, to adjust FX timing. Press in to reset to default value (1). Hold SHIFT while turning to manually adjust BPM value for timing |
| 4 | HOLD | Momentarily engage armed DJ-FX while held down. Tap while holding SHIFT to set BPM value of DJ-FX Beats multiplier |
| 5 | ON | Press to engage armed DJ-FX. Hold SHIFT while pressing to toggle between Single & Multi FX |
| 6 | LEVEL / DEPTH | Turn to increase FX depth for all DJ-FX slots |
| 7 | FX 1 | ARM FX 1 (Lit when armed). Use Effects switch to turn on |
Pitch Play
There are 3 key ranges to choose from, and the following tables show the pitched key ranges (in Semitones) while using the 8 performance pads in Pitch Play mode.
The root keypad (0) is always lit white, which will play the cue point at its regular pitch.
Use the Parameter Left & Right buttons to move the Key Range up or down.
In Pitch Play mode, pressing a pad will pitch the currently selected cue point up or down the following ranges:
Up Range: (Up 7 Semitones)
| +4 | +5 | +6 | +7 |
| 0 | +1 | +2 | +3 |
Middle Range: (Up 3/Down 4 Semitones)
| 0 | +1 | +2 | +3 |
| -4 | -3 | -2 | -1 |
Down Range: (Down 7 Semitones)
| -3 | -2 | -1 | 0 |
| -7 | -6 | -5 | -4 |
When Pitch Play mode is first enabled, the middle range is selected. Pitch Play mode will default back to the middle range if a new track is loaded. The selected range is recalled if another pad mode is selected, then
the user switches back to Pitch Play mode.
Pitch Play can only pitch one Cue point at a time. To change the selected Cue, hold the SHIFT button and press a performance pad where the cue point you want to select would be (as shown in the HOT CUE performance pad mode).
While holding SHIFT, press the corresponding performance pad for:
| Cue 1 | Cue 2 | Cue 3 | Cue 4 |
| Cue 5 | Cue 6 | Cue 7 | Cue 8 |
The selected cue point defaults to Cue Point 1 on track load, even if instant doubled. A new cue point will be created if a pad with no cue point is selected. Deleting a cue point is not possible in Pitch Play mode.
NOTE: Pitch Play mode is available once the Pitch 'n Time DJ Expansion Pack has been activated in the Expansions window, under the My Account drop-down. Then ensure Pitch 'n Time DJ is checked in the Expansion Pack tab of the Setup screen.
Flip
Flip is an Expansion Pack for Serato DJ Pro. Flip controls are only available once the Expansion pack has been purchased and activated. The Expansion pack can be bought via Serato.com -https://serato.com/dj/pro/expansions
Please check out our Flip User Guide for more information on using Flip.
DVS
When connected, this Serato DVS hardware unlocked device allows you to use connected turntables, media players or CD players to control Serato DJ Pro using NoiseMap™ Control Tone.
Find out more about Serato DVS:
Beat Jump
To activate Beat Jump, open the Setup screen, navigate to the DJ preferences tab and turn on “Show Beat Jump Controls”.
When you close the Setup screen, you will see Beat Jump controls underneath the existing Auto Loop values on each deck. Checking this box will turn on Beat Jump features in the deck area and let you control Beat Jump from your supported Serato DJ Pro hardware.
When the Beat Jump option is enabled, performance pad modes AUTO LOOP or ROLL mode (where applicable) will use the bottom row of 4 pads (pads 5-8) as Beat Jump controls. This is designed to mirror the change in the deck Auto Loop area (from 8 Auto Loop sizes to 4 Auto Loop sizes + Beat Jump controls).
MIDI
The MIDI feature in Serato DJ Pro allows you to remap Serato DJ Pro software functions to your primary Serato controller, interface or mixer. You can also assign controls to a secondary MIDI controller to further enhance your performance.
For more information on MIDI mapping with Serato DJ Pro, click here.
To remap your supported Serato device, open the SETUP screen and click the MIDI tab. If your Serato device supports hardware remapping, it will appear in the MIDI DEVICES list.
Select your connected device from the MIDI DEVICES list and check the Allow Serato Hardware Remapping option.
Once checked, the MIDI assign button at the top of the main Serato DJ Pro interface will become available for you to start remapping.
You can save, edit or delete MIDI presets in the MIDI tab of the SETUP screen. Clicking Restore Defaults will erase any custom mappings for all connected devices and revert their functions back to default.
Help
Show Tooltips
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Show Tooltips to enable Tooltips. Tooltips provide a handy way to learn the various features of Serato DJ Pro.
Move the mouse over a section of the software to bring up a context-sensitive tooltip that describes the feature.
Click on the Help button again to turn off Tooltips.
Show Shortcut Keys
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then click Show Shortcut Keys to launch a pop-up window displaying shortcut keyboard combinations.
These shortcuts can help you perform various actions quickly, such as triggering specific deck functions, controlling playback, or navigating the library.
Watch Tutorials
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Watch Tutorials to launch
your default internet browser and watch tutorials to help you get familiar with Serato DJ Pro.
Get Support
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Get Support to launch your default internet browser and navigate to the Serato DJ Pro knowledge base, where you can find helpful articles and guides on Serato DJ Pro. Alternatively, type keywords in the Search Help box to search the Serato DJ Pro knowledge base for specific, related topics.
