Using DJ-FX

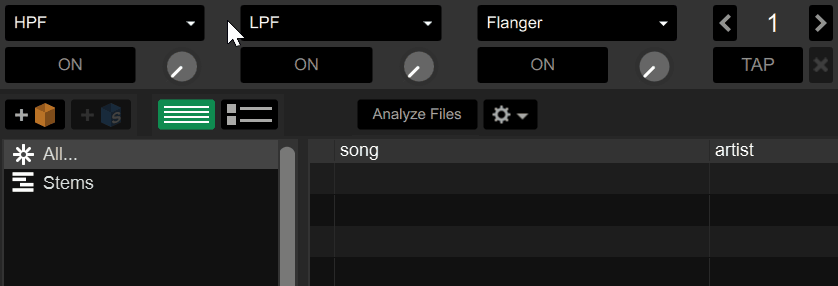

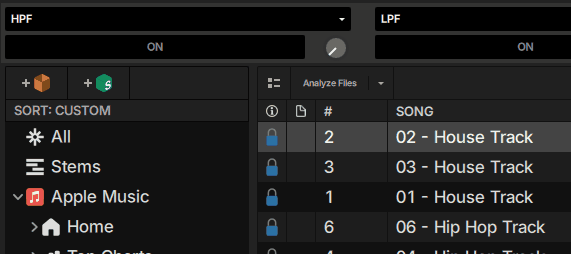

The FX panel button is displayed in the top left area of the main Serato DJ Lite screen, click on this to toggle the FX panel:
The FX panel gives you control of two FX units and two different Channel FX, both of which are available, if using Serato Play, or when Serato DJ-compatible primary hardware is connected.
Both DJ-FX & Channel FX can be controlled with your mouse, or by using dedicated controls on your hardware (where available).
NOTE: Some Serato DJ-compatible primary hardware is not compatible with Channel FX, and when connected Channel FX will not appear when the FX panel is toggled.
DJ-FX Effect Select
Click the Effect Select box to choose an effect for the respective slot from the dropdown.
DJ-FX Effect Enable & DJ-FX Depth
Click the ON button to enable each effect and click it again to turn it off.
Click and drag the DJ-FX Depth knob to adjust effect depth.
Hold SHIFT while dragging on the knob to make fine adjustments, or hold CTRL/COMMAND while clicking on the knob (or double-click on it) to quickly set a value of 50%.
In most cases, the DJ-FX Depth knob will usually operate in the same way; having the knob all the way to the left will apply no effect and will be completely “dry” and having the knob all the way to the right is the maximum amount you can apply and will be completely “wet”.
DJ-FX Beats Multiplier
The DJ-FX Beats Multiplier allows you to adjust the effect timing by way of a beat division value, which is then synchronized to the track’s BPM.
For example, a beat multiplier value of 4 represents a 4 beat cycle (or a bar), while a ¼ represents a quarter of a beat cycle (or a musical 16th note).
Click on the Decrease Beats Multiplier button to decrease this value or the Increase Beats Multiplier button to increase the value.
To ensure your tracks have a BPM Value, learn about Analyzing Files.
DJ-FX Tap Tempo
The DJ-FX Tap Tempo function has two modes:
- Automatic is the default mode and requires a track with a BPM value, in this mode the Tap Tempo button will show TAP in grey.
- Manual mode allows you to tap in the tempo yourself. To change to Manual mode, simply click the TAP button once to display a green outline indicating Tap Tempo is armed, then on beat, until a BPM is established.
After you’ve tapped a Tap Tempo beat value, you can switch to double time tapping, half time, start of each bar etc. The range is set by the first two taps, after that, you can switch to any steady rhythm you feel comfortable with – quarter notes, half note, whole notes etc.
To return to Automatic mode, click and hold the tapped BPM, or click the X button to the right of the Tap Tempo button.
Channel FX
Channel FX is available when Serato Play is enabled, or when primary hardware with a hardware channel filter control is connected that uses software Channel FX.
Check out our article to see if your primary hardware supports the use of Channel FX.

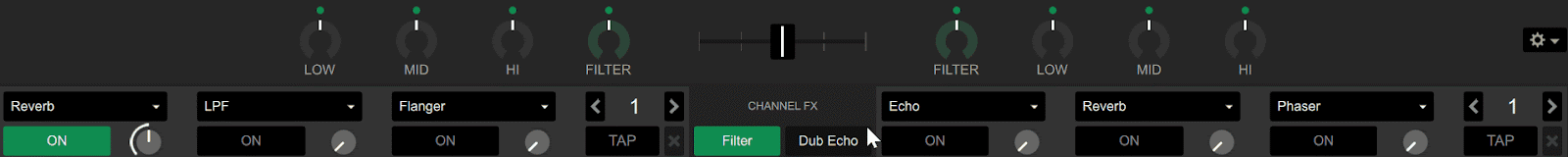

Choose your desired Channel FX, then adjust the channel filter on your primary hardware, or the Channel FX Depth knob on the Serato Play panel (pictured below):
