Assigning Controls

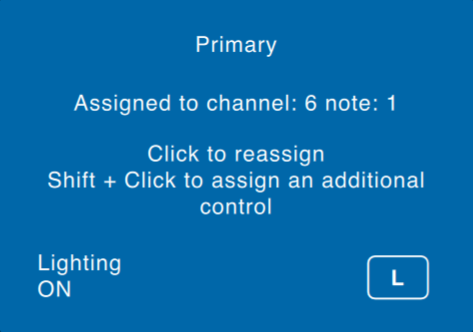

To enable MIDI assign mode, click the MIDI button in the top right-hand corner of the software. Hovering the mouse pointer over a control will bring up the MIDI assignment box, showing the current assignment status.

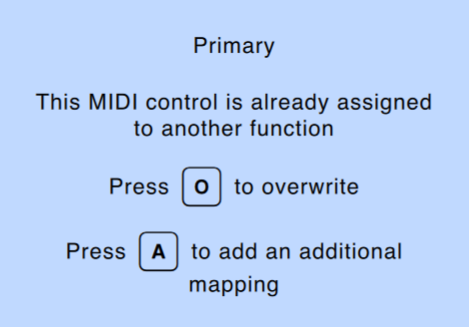

Assign a MIDI control by clicking on the control in Serato DJ, then move the physical control on your MIDI device. The MIDI assignment box should update to show it has mapped the controls to one-another. If “Enable Output Lighting” is switched on in the Setup menu, you can toggle this by pressing “L” when you make a mapping (if available for selected feature). To un-assign a MIDI control, click on the control in Serato DJ, and press return on your computer keyboard. To reassign, simply click the control again, and it will change from a dark blue ‘assigned’ status, to a light blue ‘reassign’ status.

NOTE: Once in MIDI assign mode, Serato DJ controls will no longer respond directly to the mouse. If you need to change a control using the mouse, disable MIDI assign mode. While in MIDI assign mode, controls which have MIDI inputs assigned show a blue box indicator around them.

Screen_Shot_2017-03-09_at_6.00.58_PM.png          Screen_Shot_2017-03-09_at_6.01.14_PM.png
