Please ensure you have the latest version of Serato DJ Pro installed:
Drivers & firmware
To install drivers for the Pioneer DJ DJM-750MK2, you must download them from AlphaTheta's website, here.
The driver and mixer utility will be bundled with the latest version of Serato DJ Pro. If the driver or utility is not installed on your computer when the mixer is connected, you will be prompted by an ‘INSTALL DRIVER’ pop-up. Click ‘INSTALL DRIVER’ and follow the installer prompts.
It is very important that you have the latest firmware installed for the Pioneer DJ DJM-750MK2. The update file and installation instructions can be found here on AlphaTheta’s website.
Selecting Input source
Once turntables or CDJs are connected to the mixer, open the SETUP screen and click the AUDIO tab.
Click depending on what kind of input you have connected (Turntables/CDJs). You will need to make sure this is set accordingly for each channel.
Click the configuration you want to use. Click CUSTOM to open the Pioneer DJ driver panel. Here you can
further configure the inputs, outputs and FX preferences of the DJM-750MK2. For more information, see the DJM-750MKII user guide here.
User Guide
For further information on DJM-750MK2 controls and details on individual features please refer to the Pioneer DJ DJM-750MK2 Hardware User Guide. Download the Pioneer DJ DJM-750MKII User Guide from the Pioneer website here.
Overview

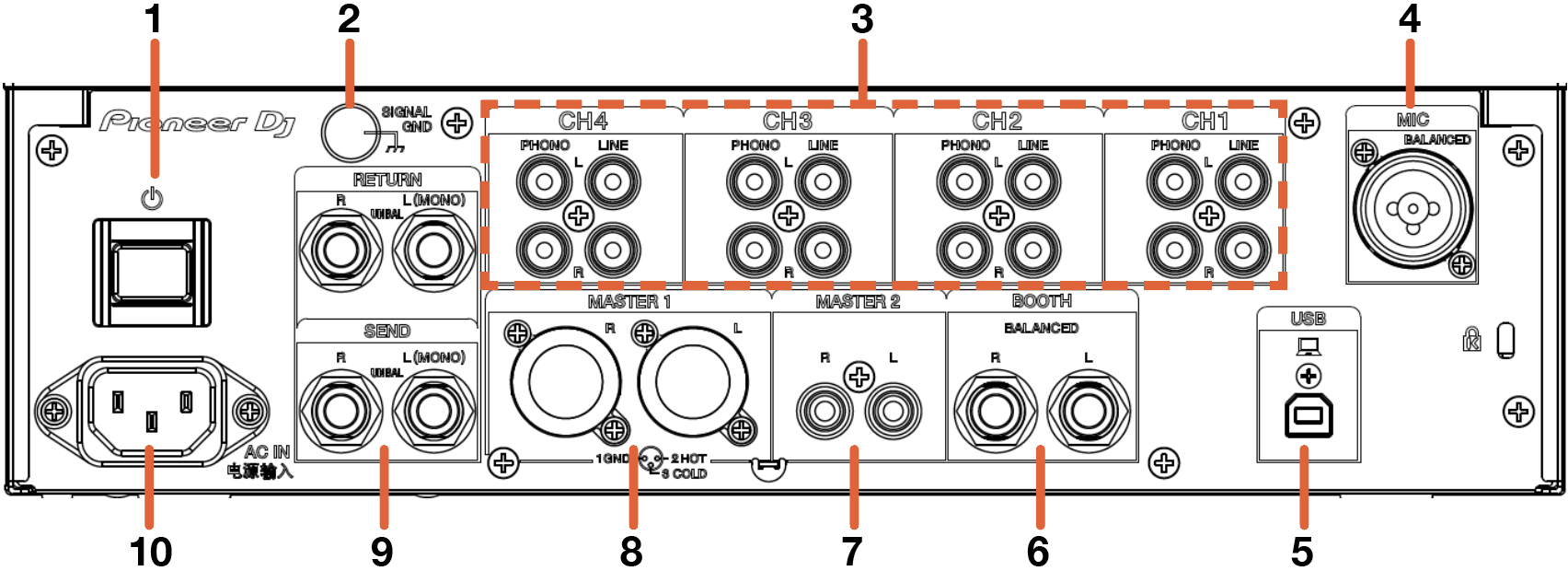

| # | DJM-750MK2 CONTROL | FUNCTION |
| 1 | ON/OFF SWITCH | Press to turn the device power on/off |
| 2 | SIGNAL GND | Connect grounding wire |
| 3 | CH 1,2,3,4 LINE/PHONO | Channel 1,2,3,4 RCA Phono/Line input |
| 4 | MIC INPUT | XLR microphone input |
| 5 | USB A/B | Connect USB cable from PC |
| 6 | BOOTH | Connect BOOTH via TRS |
| 7 | MASTER 2 | RCA Master output |
| 8 | MASTER 1 | XLR Master output |
| 9 | SEND/RECEIVE | Connect TRS jack for send & receive input/output respectively |
| 10 | AC IN | Connect AC power cable |
| # | DJM-750MKII CONTROL | FUNCTION |
| 1 | CHANNEL INPUT SELECT | Channel combo filter (Lowpass/Highpass) |
| 2 | MASTER VOLUME | Adjust Master output volume |
| 3 | SEND / RETURN CONTROLS | Hardware dedicated Send/Return controls |
| 4 | BEAT FX SECTION | See Beat FX information, manually toggle beat value (left down, right up), toggle auto beat value, repeatedly tap beat value to estimate, Adjust FX frequency (LOW, MID, HI), turn knob to change Beat FX type toggle Beat FX channel select, adjust Beat FX Time parameter |
| 5 | CROSSFADER CURVE | Adjust Crossfader Curve |
| 6 | CHANNEL FADER CURVE | Adjust Volume Fader Curve |
| 7 | EQ CURVE | Toggle selector switch for EQ controls or Isolator controls |
| 8 | BOOTH LEVEL | Adjust Booth output level |
| 9 | MASTER CHANNEL CUE | Enable Master channel cue |
| 10 | CROSSFADER ASSIGN | Assign per channel A/Thru/B |
| 11 | CROSSFADER | Fade audio between channels A-B |
| 12 | CHANNEL FADER | Adjust Channel volume |
| 13 | CHANNEL CUE | Enable Channel headphone cue |
| 14 | SOUND COLOR FX | Turn Color knob to affect HI or LOW frequency per channel |
| 15 | HEADPHONES | Headphone Output controls |
| 16 | SOUND COLOR FX PARAMETERS | Choose Sound Color FX to apply and adjust Sound Color FX Parameter |
| 17 | TALKOVER | toggle Talkover |
| 18 | MIC TONE | adjust MIC EQ (HI, LOW) |
| 19 | MIC LEVEL | Adjust MIC Level |
| 20 | CHANNEL TRIM | Adjust Channel Trim |
| 21 | CHANNEL EQ | 3-band Channel EQ |
MIDI
The MIDI feature in Serato DJ Pro allows you to remap Serato DJ Pro software functions to your primary Serato controller, interface or mixer. You can also assign controls to a secondary MIDI controller to further enhance your performance.
For more information on MIDI mapping with Serato DJ Pro, click here.

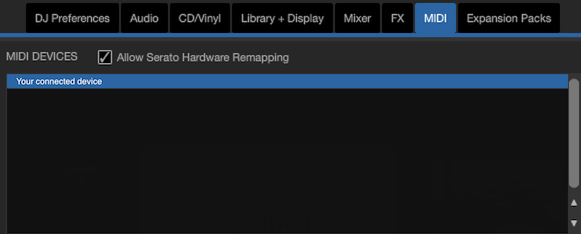

To remap your supported Serato device, open the SETUP screen and click the MIDI tab. If your Serato device supports hardware remapping, it will appear in the MIDI DEVICES list.
Select your connected device from the MIDI DEVICES list and check the Allow Serato Hardware Remapping option.
Once checked, the MIDI assign button at the top of the main Serato DJ Pro interface will become available for you to start remapping.
You can save, edit or delete MIDI presets in the MIDI tab of the SETUP screen. Clicking Restore Defaults will erase any custom mappings for all connected devices and revert their functions back to default.
Help
Show Tooltips
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Show Tooltips to enable Tooltips. Tooltips provide a handy way to learn the various features of Serato DJ Pro.
Move the mouse over a section of the software to bring up a context-sensitive tooltip that describes the feature.
Click on the Help button again to turn off Tooltips.
Show Shortcut Keys
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then click Show Shortcut Keys to launch a pop-up window displaying shortcut keyboard combinations.
These shortcuts can help you perform various actions quickly, such as triggering specific deck functions, controlling playback, or navigating the library.
Watch Tutorials
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Watch Tutorials to launch
your default internet browser and watch tutorials to help you get familiar with Serato DJ Pro.
Get Support
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Get Support to launch your default internet browser and navigate to the Serato DJ Pro knowledge base, where you can find helpful articles and guides on Serato DJ Pro. Alternatively, type keywords in the Search Help box to search the Serato DJ Pro knowledge base for specific, related topics.
