Setup
Firmware, setup & connection
The AlphaTheta CDJ-3000X is a class compliant “Serato Official Accessory”, for Mac & Windows, and does not require separate drivers.
Each AlphaTheta CDJ-3000X media player used with Serato DJ Pro in Internal mode using HID, requires a USB cable, a spare USB port, and must be connected alongside Serato DJ primary hardware.
If you don’t have enough USB ports available to you, you may need to connect your AlphaTheta CDJ-3000X media players to a powered USB hub. It is important to always connect your Serato DJ primary hardware directly to your computer, where possible.
You must have firmware version 1.10 or higher installed on your AlphaTheta CDJ-3000X devices, to connect to Serato DJ Pro version 3.3.4 or higher.
You can find instructions on how to update the firmware via our AlphaTheta CDJ-3000X Firmware update guide, or via AlphaTheta’s website.
Please also ensure you have the latest version of Serato DJ Pro installed:
Click here to download Serato DJ Pro
1. Connect your Serato DJ primary hardware via an available USB port on your computer.
2. Open Serato DJ Pro.
3. Connect the CDJ-3000X to your computer via an available USB port or USB hub (if required)
4. Press the SOURCE button on the CDJ-3000X, then press the Scroll Knob in.
5. Turn the Scroll Knob to select a virtual deck to assign the CDJ-3000X to control, then press the Scroll
Knob in again to confirm.
6. Set the respective virtual deck in Serato DJ Pro to INT (Internal) mode.
7. Repeat steps 3-6 for any further CDJ-3000X devices you wish to use.
Overview

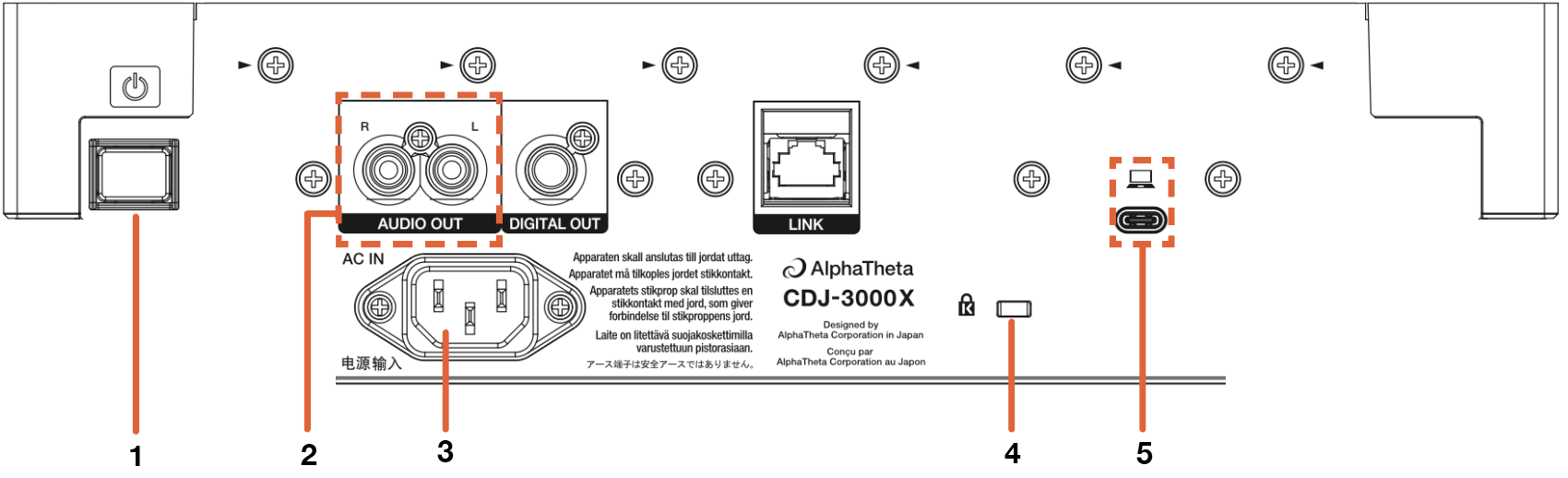

| # | CDJ-3000X CONTROL | FUNCTION |
1 |
POWER |
ON/OFF Switch |
2 |
AUDIO OUT |
Connect RCA audio cable |
3 |
AC IN |
Connect AC power cable |
4 |
KENSINGTON LOCK |
Secure Device |
5 |
USB PORT |
Connect PC/Mac with a USB cable |
| # | CDJ-3000X CONTROL | FUNCTION |
| 1 | SOURCE | Press to choose source media |
| 2 | BROWSER | Toggle between Library view & Track view on device display |
| 3 | LCD DISPLAY | Device display |
| 4 | BACK | Toggle between Library & Crates |
| 5 | POWER | Turn on device |
| 6 | TAG TRACK / REMOVE | Add currently selected track to Prepare Panel |
| 7 | SCROLL KNOB | Turn to scroll through library. Push in to load selected track to deck |
| 8 | HOT CUE | Press pads to trigger |
| 9 | VINYL SPEED ADJ | Adjust braking speed |
| 10 | MEMORY | Toggle Loop lock on/off |
| 11 | JOG MODE | Toggle between Vinyl and CDJ jog mode |
| 12 | DELETE | Delete Loop from loop slot |
| 13 | MASTER | Turns Sync off |
| 14 | BEAT SYNC | Turns Sync on |
| 15 | KEY SYNC | Toggle Key sync on/off |
| 16 | JOG ADJUST | Adjust platter sensitivity |
| 17 | TEMPO | Cycle tempo ranges |
| 18 | MASTER TEMPO | Toggle Key lock on/off |
| 19 | TEMPO SLIDER | Adjust tempo |
| 20 | TEMPO RESET | Reset tempo |
| 21 | CUE/LOOP CALL | Select next saved loop slot/Select previous saved loop slot |
| 22 | PLATTER | Touch top to scratch or jog. Move the outside of the platter to jog |
| 23 | PLAY/PAUSE | Play/pause tracks |
| 24 | CUE | Works as CDJ Style button for setting and jumping to temporary cue |
| 25 | SEARCH | Rewind/Fast forward |
| 26 | TRACK SEARCH | Load previous track/Load next track |
| 27 | DIRECTION | Switch up activates Censor/Switch down activate Reverse |
| 28 | BEAT JUMP | Perform Beat jump backwards/Perform Beat jump forwards |
| 29 | BEAT LOOP | Activate 4 Beat Loop (or halve currently active loop) Activate 8 Beat Loop (or double currently active loop) |
| 30 | RELOOP/EXIT | Reloop (or Exit Loop if loop already active) |
| 31 | IN/CUE | Set Loop In point (or adjust Loop if loop already active) |
| 32 | OUT | Set Loop Out point (or adjust Loop Out point if loop already active) |
| 33 | CALL/DELETE | Holding while pressing a Hot Cue button to remove respective cue point |
| 34 | SLIP | Toggle Slip mode on/off |
| 35 | QUANTIZE | Toggle Quantize on/off |
Help
Show Tooltips
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Show Tooltips to enable Tooltips. Tooltips provide a handy way to learn the various features of Serato DJ Pro.
Move the mouse over a section of the software to bring up a context-sensitive tooltip that describes the feature.
Click on the Help button again to turn off Tooltips.
Show Shortcut Keys
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then click Show Shortcut Keys to launch a pop-up window displaying shortcut keyboard combinations.
These shortcuts can help you perform various actions quickly, such as triggering specific deck functions, controlling playback, or navigating the library.
Watch Tutorials
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Watch Tutorials to launch
your default internet browser and watch tutorials to help you get familiar with Serato DJ Pro.
Get Support
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Get Support to launch your default internet browser and navigate to the Serato DJ Pro knowledge base, where you can find helpful articles and guides on Serato DJ Pro. Alternatively, type keywords in the Search Help box to search the Serato DJ Pro knowledge base for specific, related topics.
