Advanced FX View is available with the Expansions bundle or Suite license/subscription, which also comes with additional FX.

This view allows you to modify advanced FX parameters and save your own FX parameter presets.

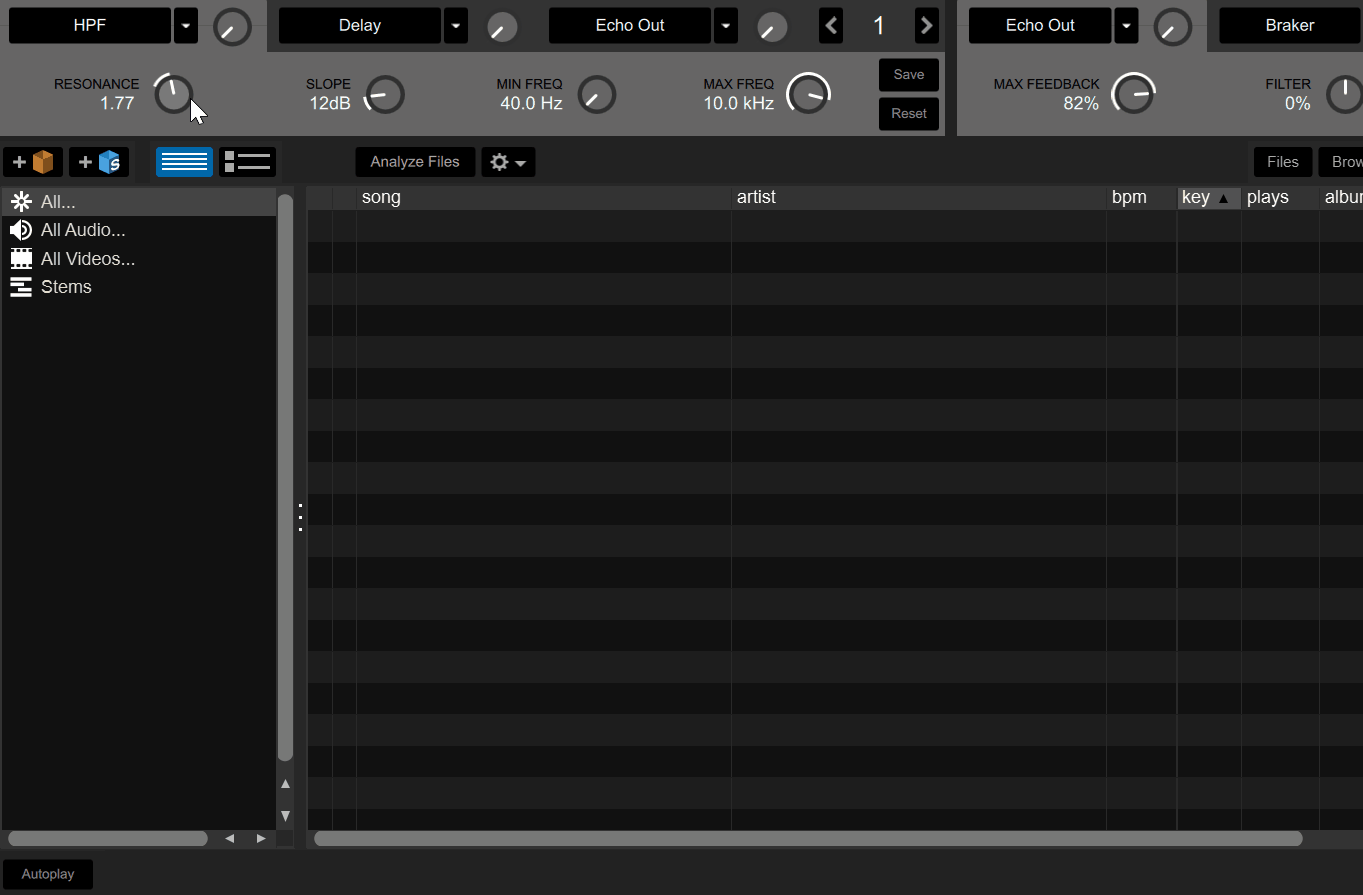

Advanced FX View toggle

Click the Advanced FX View toggle in the upper right corner of the DJ-FX panel to reveal Advanced FX parameters, or click it again to return back to the previous FX Panel View mode.

Advanced FX View - Effect Enable & Depth

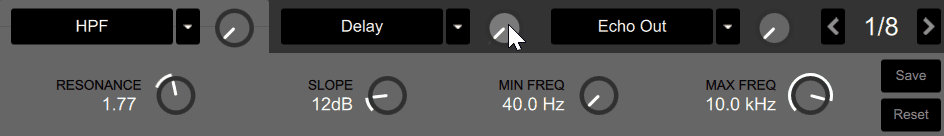

Click on the DJ-FX Depth knob next to each of the DJ-FX Effect Enable slots to select an effect, to display its adjustable parameters, then click the DJ-FX Effect Enable slot title itself to toggle the effect on (or again to turn it off).

Click the DJ-FX Effect Select arrow to reveal the dropdown, and click another effect to replace that slot.

Click and drag the DJ-FX Depth knob to adjust effect depth.

Hold SHIFT while dragging on the knob to make fine adjustments, or hold CTRL/COMMAND while clicking on the knob (or double-click on it) to quickly set a value of 50%.

Advanced FX Parameters

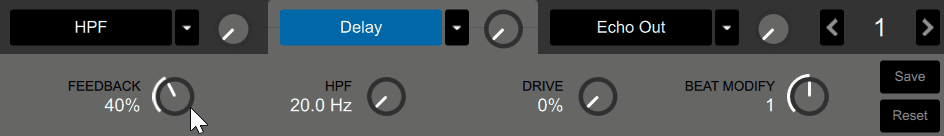

Click and drag an Advanced FX Parameter knob to adjust the respective effect value.

Hold SHIFT while dragging on the knob to make fine adjustments, or hold CTRL/COMMAND while clicking on the knob (or double-click on it) to reset it to the default parameter value.

Save FX Presets

Adjust Advanced FX Parameters, then click Save to create a custom, quickly recallable version of the effect with your preferred parameters.

After doing so, the Name new FX preset window appears, where you can name your new preset, then click Save again to confirm.

Once saved, your FX preset will appear at the bottom of Effect Select dropdown’s in all FX views, under the USER category.

Reset FX Presets

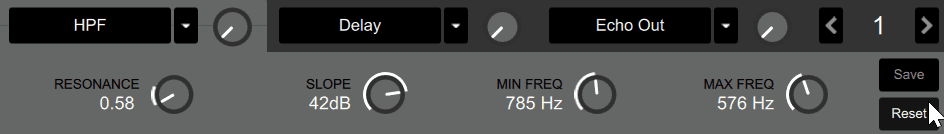

When making changes to Advanced FX Parameters, if you find you want to revert back to the default settings for an FX preset, click the Reset button.
