Setup
Licensing & software
This is a Serato DJ Pro hardware unlocked device, meaning it unlocks Serato DJ Pro when connected.
It is also a paid upgrade to Serato DVS device, meaning it requires the purchase & activation of a Serato DVS license, in order to use Serato DVS functionality.
Please ensure you have the latest version of Serato DJ Pro installed:
Drivers & firmware
The Reloop Mixon 8 Pro is class-compliant on macOS but requires manufacturer-specific drivers when used with Windows operating systems.
It’s also strongly recommended that you install the latest firmware for your Reloop Mixon 4, where available.
You can download and install both the driver and firmware from Reloop’s website.
Overview

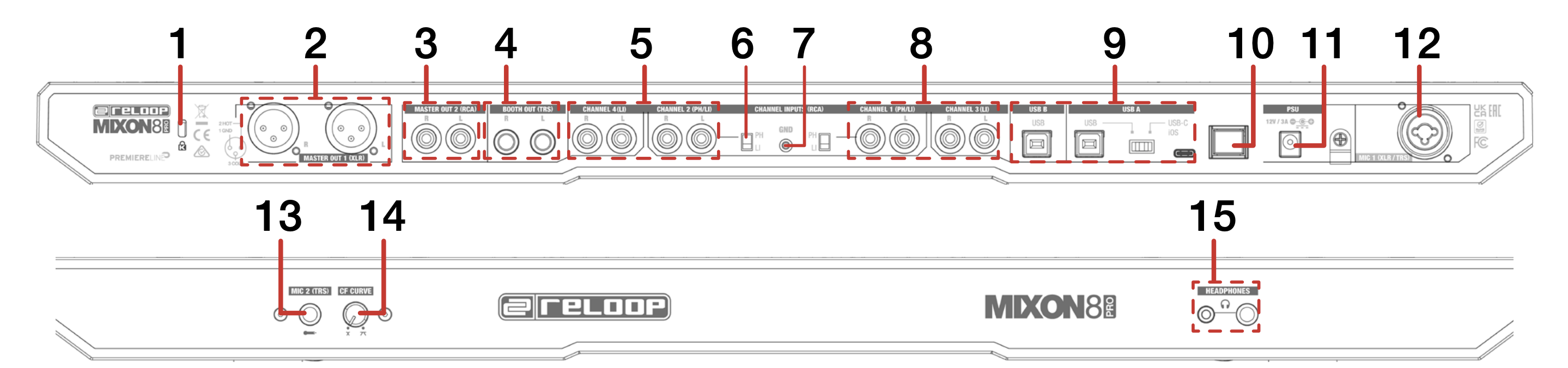

| # | MIXON 8 PRO CONTROL | FUNCTION |
| 1 | KENSINGTON LOCK | Secure device |
| 2 | MASTER OUT 1 | Connect output via XLR |
| 3 | MASTER OUT 2 | Connect master output via RCA |
| 4 | BOOTH OUT | Connect booth output via TRS |
| 5 | CH 4 / CH 2 | Connect line input device, or phono or line input device via RCA |
| 6 | LINE / PHONO | Toggle input for phono or line level device |
| 7 | GND | Connect grounding wire from phono input device |
| 8 | CH 1 / CH 3 | Connect phono or line input device, or line input device via RCA |
| 9 | USB B / A | Connect USB cable to USB B or USB A, and toggle USB A port between USB type B or USB type A cable |
| 10 | POWER | Press to turn the device on/off |
| 11 | PSU | Connect the supplied power cable |
| 12 | MIC 1 | Connect microphone input via XLR or TRS |
| 13 | MIC 2 | Connect microphone input via TRS |
| 14 | CF CURVE | Adjust crossfader contour |
| 15 | HEADPHONES (SECTION) | Connect headphone output via 3.5mm or 6.5mm port |

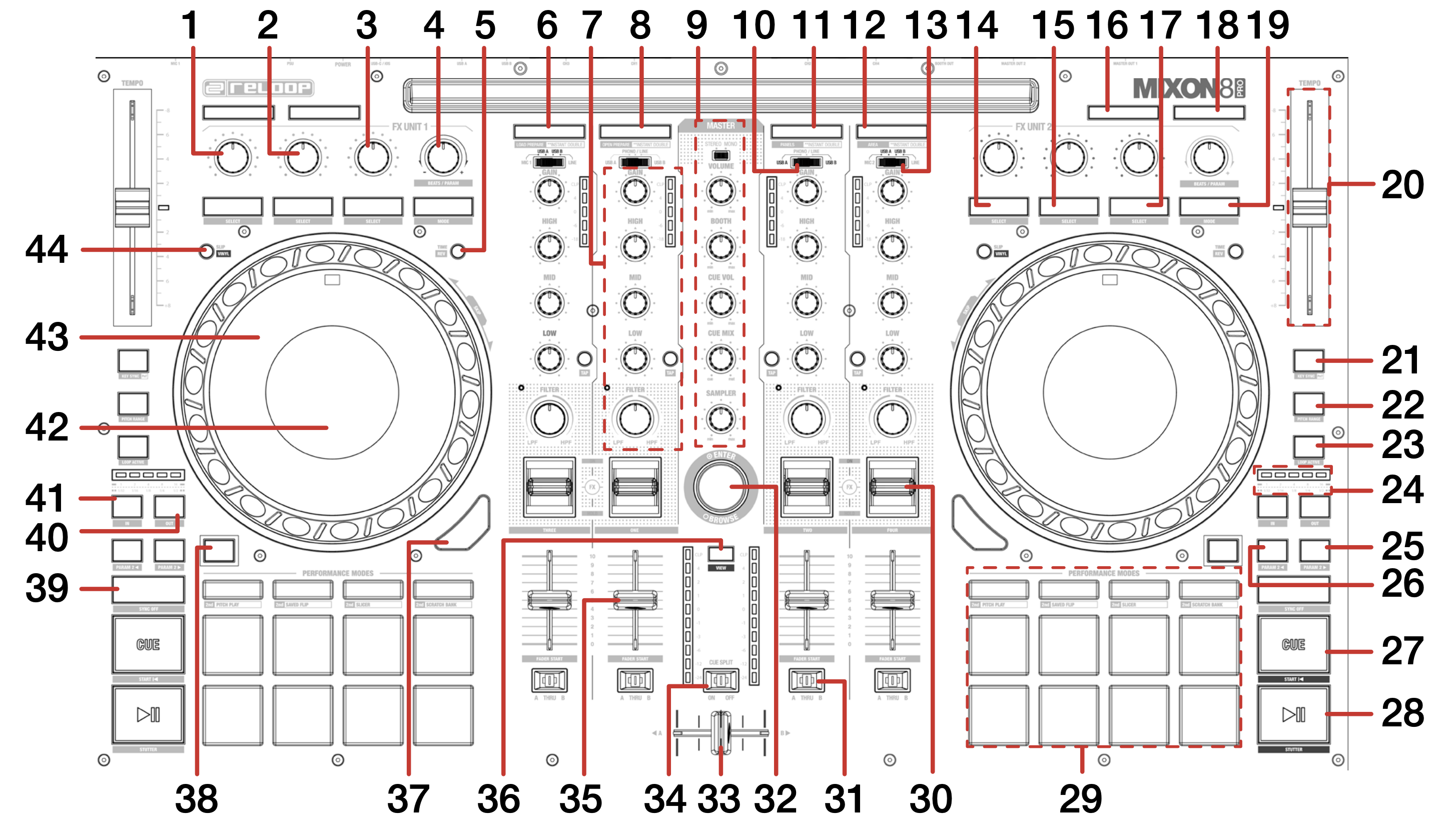

| # | MIXON 8 PRO CONTROL | FUNCTION |
SHIFT |
| 1 | FX LEVEL 1 | Adjust FX Depth for Slot 1 | Turn to cycle & select FX for Slot 1 |
| 2 | FX LEVEL 2 | Adjust FX Depth for Slot 2 | Turn to cycle & select FX for Slot 2 |
| 3 | FX LEVEL 3 | Adjust FX Depth for Slot 3 | Turn to cycle & select FX for Slot 3 |
| 4 | BEATS MULTIPLIER | Turn to adjust FX beats multiplier value | - |
| 5 | TIME | Toggle between time elapsed or time remaining | Toggle Reverse playback |
| 6 | LOAD CHANNEL 3 | Load selected track to deck 3. Double Press to Instant Double track on playing deck | Add selected track to Prepare crate |
| 7 | CHANNEL (SECTION) | Adjust gain, adjust EQ (High, Mid, Low), adjust channel Filter | Press Tap repeatedly to estimate & adjust Track BPM |
| 8 | LOAD CHANNEL 1 | Load selected track to deck 1. Double Press to Instant Double track on playing deck | Open Prepare panel |
| 9 | MASTER (SECTION) | Toggle Stereo or Mono output, adjust Master, Booth, Cue & Sampler volumes, adjust Cue mix between Cue & Master | - |
| 10 | INPUT SELECTOR (CH1/CH2) | Choose between Phono or Line level source, or USB A or B | - |
| 11 | LOAD CHANNEL 2 | Load selected track to deck 2. Double Press to Instant Double track on playing deck | Cycle through panels |
| 12 | LOAD CHANNEL 4 | Load selected track to deck 4. Double Press to Instant Double track on playing deck | Cycle Files/Browse/ Prepare/History areas |
| 13 | INPUT SELECTOR (CH3/CH4) | Choose between Mic 1 or Mic 2 source, or USB A or B | - |
| 14 | FX BUTTON 1 | Arm FX Slot 1 | - |
| 15 | FX BUTTON 2 | Arm FX Slot 2 | - |
| 16 | MIC1/MI2 ON | Toggle Mic 1 or Mic 2 on/off | - |
| 17 | FX BUTTON 3 | Arm FX Slot 3 | - |
| 18 | MIC1/MIC2 TALKOVER | Toggle Talkover for Mic 1 or Mic 2 | - |
| 19 | TAP | Tap FX Tempo | - |
| 20 | TEMPO SLIDER | Adjust tempo/pitch | Ignore tempo/pitch adjustment |
| 21 | KEYLOCK | Toggle Key lock (or Pitch 'n Time DJ if activated). Long press to reset the Key | Toggle Key Sync |
| 22 | SILENT CUE | Toggle Silent Cue (Press a Hot Cue on that deck to disable Silent Cue) | Toggle tempo range |
| 23 | AUTO LOOP | Toggle Autoloop on/off | Toggle Active Loop |
| 24 | LOOP LENGTH DISPLAY | Displays selected Loop length | - |
| 25 | PARAMETER (RIGHT) | Parameter 1 controls for use in Performance Pad modes | Parameter 2 controls for use in Performance Pad modes |
| 26 | PARAMETER (LEFT) | Parameter 1 controls for use in Performance Pad modes | Parameter 2 controls for use in Performance Pad modes |
| 27 | CUE | Cues from temp cue point / Set temp cue point | Load previous track |
| 28 | PLAY / PAUSE | Toggles Play/Pause on selected deck | Stutter play |
| 29 | PERFORMANCE PAD (SECTION) | SEE PERFORMANCE PADS FOR MORE INFORMATION | - |
| 30 | FX (PADDLE) | Push up to turn on and lock armed FX, or pull down to momentarily turn on armed FX | - |
| 31 | CROSSFADER ASSIGN | Assign each channel to crossfader side A, B, or THRU | - |
| 32 | ENTER / BROWSE |
Turn to the scroll library. Press in to cycle between the Library and Crate area |
Fast library scroll |
| 33 | CROSSFADER | Crossfade audio between channels | Crossfader start |
| 34 | CUE SPLIT | Toggle Split Cue on/off | - |
| 35 | CHANNEL FADER | Adjust channel volume (per channel) | Channel fader start (per channel) |
| 36 | BACK | Cycle back between Library & Crate area | Cycle View modes |
| 37 | DECK LAYER | Press to toggle specified deck layer as Active Deck (per side) | - |
| 38 | SHIFT | Shift modifier, which can be held while using another control for secondary SHIFT function | - |
| 39 | SYNC | Press to turn SYNC on (per deck) | Press to turn SYNC off (per deck) |
| 40 | X2 | Double active Loop | Set Loop Out point / Edit Loop Out point |
| 41 | X1/2 | Halve active Loop | Set Loop In point / Edit Loop In point |
| 42 | JOG WHEEL DISPLAY | Displays track & waveform information | Fast track waveform scroll |
| 43 | JOG WHEEL | Turn jog to bend pitch, or control waveform within Serato DJ in vinyl mode | - |
| 44 | SLIP | Toggle Slip mode | Toggle between vinyl and jog platter mode |

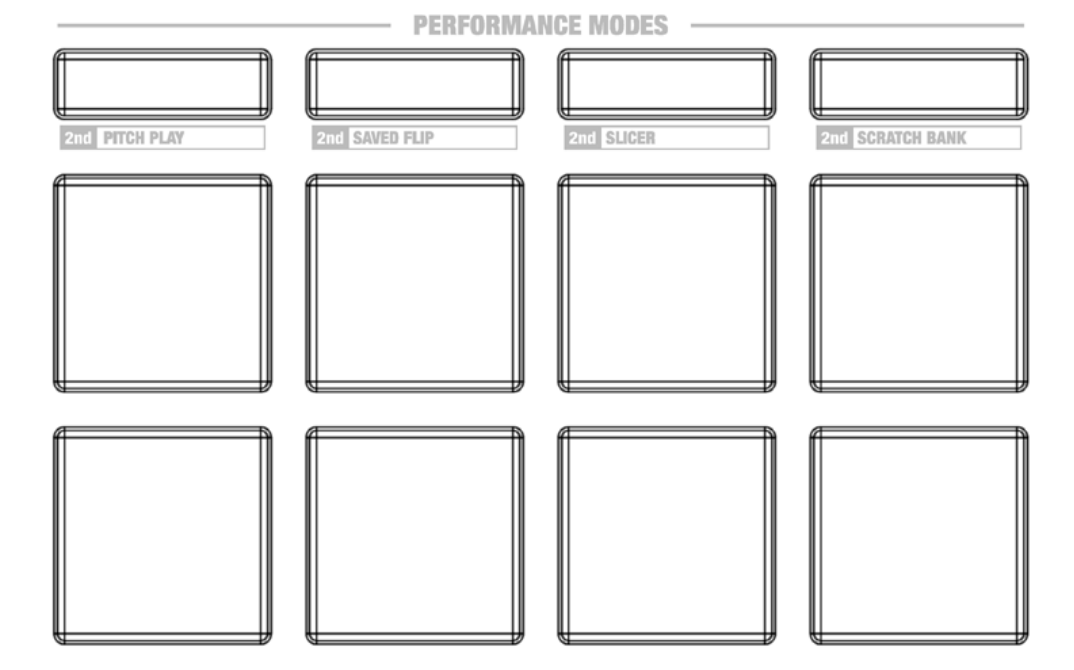

Performance Pads
The Reloop Mixon 8 Pro comes with 8 performance pads, that can be used across 8 different performance pad modes, and 2 user pad modes, where all pads can be freely MIDI mapped.
The modes consist of:
HOT CUE mode: Pads 1-8 trigger Serato DJ Pro Cue points, and if no Cue point is present on that slot/pad, pressing that pad will set a Cue point. Holding down the SHIFT button while pressing a populated pad will delete the Cue point from the respective pad/slot. If Serato Flip is activated: Parameter 1 left engages Flip Record, while right starts your Flip, and holding SHIFT means left is Flip Loop while right is Flip on/off.
LOOP ROLL mode: Holding Pads 1-8 activates a loop roll of varying sizes. Release the pad to exit the Loop Roll. Press Parameter 1 left & right controls to halve and double the Loop Roll.
SAVED LOOP mode: Pads 1-8 trigger Saved Loops or save an Active Loop to an empty Loop Slot. Holding SHIFT while pressing a Pad will reloop the Saved Loop Slot. Parameter 1 Left & Right controls halve and double loop size respectively, while holding SHIFT will Loop Shift Left & Right.
SAMPLER mode: Press pads 1-8 in this mode to trigger samples loaded into the Serato DJ Pro Sampler. Holding SHIFT while pressing a Pad will stop a currently playing Sampler slot or load a new sample to the Sampler slot if empty. Parameter 1 left & right cycles Sample banks forward and back, while holding SHIFT cycles the Sampler output.
PITCH PLAY mode: Press the HOT CUE mode button twice to enter Pitch Play mode. In this mode, pads 1-8 play Cue points over variable pitch ranges. See the ‘Pitch Play’ section for more information.
NOTE: Pitch Play mode requires that the Serato Pitch ‘n’ Time DJ expansion pack is activated & enabled.
SAVED FLIP mode: Press the LOOP ROLL mode button twice to enter Saved Flip mode. In this mode, pads 1-8 trigger stored Flips that you have previously made in the Flip slots. Holding SHIFT while pressing a pad toggles that Flip on/off, while Parameter 1 Left triggers Flip Record, Right starts the Flip, and Parameter 2 Left loops the Flip, while Right toggles the Flip on/off.
NOTE: Saved Flip mode requires that the Serato Flip expansion pack is activated & enabled.
SLICER mode: Press the SAVED LOOP pad mode button twice to enter Slicer mode. In this mode, a specified range (or domain) is divided into eight equal sections, and these eight sliced sections are assigned to the respective performance pads (1-8), and can be triggered by pressing them. The domain shifts as the track duration elapses. Use Parameter 1 Left & Right controls to decrease or increase the quantize size, or hold SHIFT to decrease or increase the domain size.
SCRATCH BANK mode: Press the SAMPLER pad mode button twice to enter Scratch Bank mode. This mode allows you to assign files in your Serato DJ Pro library to a Pad. When Pads 1-8 are triggered, the corresponding file will be loaded to the deck, allowing you to quickly load useful Scratch samples.
Click the Scratch Banks panel toggle button (pictured below) in the top left-hand corner of the Serato DJ Pro user interface to reveal the Scratch Banks panel.
Here you can click and drag tracks into slots in the Scratch Banks panel, adjust preferences that are remembered when the respective Pad is triggered and loaded to a deck, and eject tracks. You can reveal those preferences (such as start point, Key lock on/off, and Repeat on/off) by toggling between Advanced and Simple view in the Scratch Banks panel, by clicking the toggle button (pictured below).
The left set of pads will load Scratch Bank assigned tracks to Deck 1, and the right set of pads will load assigned tracks to Deck 2. Holding SHIFT on your device, while pressing an assigned/loaded Pad, will reload the previously loaded track to the relevant virtual deck.
Parameter 1 left & right cycle Scratch Banks forward & back respectively.
USER MODE 1: Press the HOT CUE mode button while holding SHIFT to enter User mode 1.
USER MODE 2: Press the LOOP ROLL mode button while holding SHIFT to enter User mode 2.
Pitch Play
There are 3 key ranges to choose from, and the following tables show the pitched key ranges (in Semitones) while using the 8 performance pads in Pitch Play mode.
The root keypad (0) is always lit white, which will play the cue point at its regular pitch.
Use the Parameter Left & Right buttons to move the Key Range up or down.
In Pitch Play mode, pressing a pad will pitch the currently selected cue point up or down the following ranges:
Up Range: (Up 7 Semitones)
| +4 | +5 | +6 | +7 |
| 0 | +1 | +2 | +3 |
Middle Range: (Up 3/Down 4 Semitones)
| 0 | +1 | +2 | +3 |
| -4 | -3 | -2 | -1 |
Down Range: (Down 7 Semitones)
| -3 | -2 | -1 | 0 |
| -7 | -6 | -5 | -4 |
When Pitch Play mode is first enabled, the middle range is selected. Pitch Play mode will default back to the middle range if a new track is loaded. The selected range is recalled if another pad mode is selected, then
the user switches back to Pitch Play mode.
Pitch Play can only pitch one Cue point at a time. To change the selected Cue, hold the SHIFT button and press a performance pad where the cue point you want to select would be (as shown in the HOT CUE performance pad mode).
While holding SHIFT, press the corresponding performance pad for:
| Cue 1 | Cue 2 | Cue 3 | Cue 4 |
| Cue 5 | Cue 6 | Cue 7 | Cue 8 |
The selected cue point defaults to Cue Point 1 on track load, even if instant doubled. A new cue point will be created if a pad with no cue point is selected. Deleting a cue point is not possible in Pitch Play mode.
NOTE: Pitch Play mode is available once the Pitch 'n Time DJ Expansion Pack has been activated in the Expansions window, under the My Account drop-down. Then ensure Pitch 'n Time DJ is checked in the Expansion Pack tab of the Setup screen.
MIDI
The MIDI feature in Serato DJ Pro allows you to remap Serato DJ Pro software functions to your primary Serato controller, interface or mixer. You can also assign controls to a secondary MIDI controller to further enhance your performance.
For more information on MIDI mapping with Serato DJ Pro, click here.

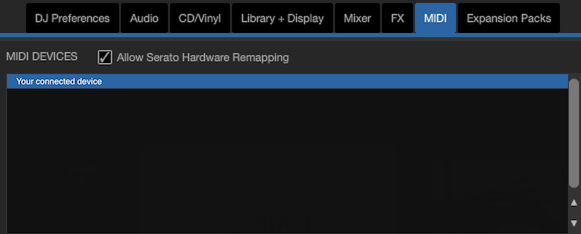

To remap your supported Serato device, open the SETUP screen and click the MIDI tab. If your Serato device supports hardware remapping, it will appear in the MIDI DEVICES list.
Select your connected device from the MIDI DEVICES list and check the Allow Serato Hardware Remapping option.
Once checked, the MIDI assign button at the top of the main Serato DJ Pro interface will become available for you to start remapping.
You can save, edit or delete MIDI presets in the MIDI tab of the SETUP screen. Clicking Restore Defaults will erase any custom mappings for all connected devices and revert their functions back to default.
Beat Jump
To activate Beat Jump, open the Setup screen, navigate to the DJ preferences tab and turn on “Show Beat Jump Controls”.
When you close the Setup screen, you will see Beat Jump controls underneath the existing Auto Loop values on each deck. Checking this box will turn on Beat Jump features in the deck area and let you control Beat Jump from your supported Serato DJ Pro hardware.
When the Beat Jump option is enabled, performance pad modes AUTO LOOP or ROLL mode (where applicable) will use the bottom row of 4 pads (pads 5-8) as Beat Jump controls. This is designed to mirror the change in the deck Auto Loop area (from 8 Auto Loop sizes to 4 Auto Loop sizes + Beat Jump controls).
DVS
When a Serato DVS license is purchased and activated, this paid upgrade to Serato DVS device allows you to use connected turntables, media players or CD players to control Serato DJ Pro using NoiseMap™ Control Tone.
NOTE: Serato DVS is only available once the Serato DVS expansion pack has been activated in the Expansions window, under the My Account drop-down. Make sure Vinyl / CDJ Control is then checked in the Expansion Packs tab of the Setup screen.
Find our more about Serato DVS:
Help
Show Tooltips
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Show Tooltips to enable Tooltips. Tooltips provide a handy way to learn the various features of Serato DJ Pro.
Move the mouse over a section of the software to bring up a context-sensitive tooltip that describes the feature.
Click on the Help button again to turn off Tooltips.
Show Shortcut Keys
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then click Show Shortcut Keys to launch a pop-up window displaying shortcut keyboard combinations.
These shortcuts can help you perform various actions quickly, such as triggering specific deck functions, controlling playback, or navigating the library.
Watch Tutorials
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Watch Tutorials to launch
your default internet browser and watch tutorials to help you get familiar with Serato DJ Pro.
Get Support
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Get Support to launch your default internet browser and navigate to the Serato DJ Pro knowledge base, where you can find helpful articles and guides on Serato DJ Pro. Alternatively, type keywords in the Search Help box to search the Serato DJ Pro knowledge base for specific, related topics.
