Setup
Licensing & software
This is a Serato DJ Pro hardware unlocked device, meaning it unlocks Serato DJ Pro when connected.
It is also a paid upgrade to Serato DVS device, meaning it requires the purchase & activation of a Serato DVS license, in order to use Serato DVS functionality.
Please ensure you have the latest version of Serato DJ Pro installed:
Drivers & firmware
The RANE ONE does not require manufacturer-specific drivers on Mac however, both Mac and Windows
operating systems require the device utility. You will be prompted to install the device utility upon connection, or alternatively, this can be downloaded in advance from RANE’s website here.
Note: The Windows driver is bundled with the Windows device utility download.
After installation, connect the device to your PC, and launch the latest version of Serato DJ Pro
Overview

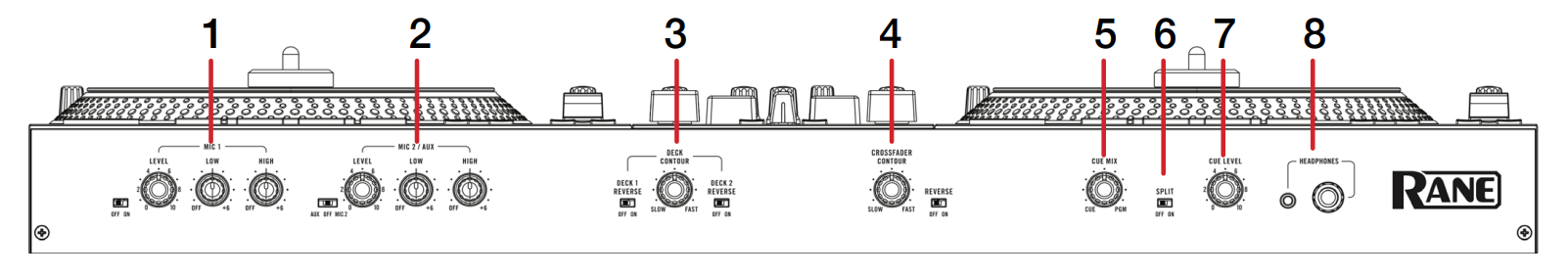

| # | ONE CONTROL | FUNCTION |
| 1 | MIC 1 CONTROLS | Microphone 2 on/off, level and EQ control |
| 2 | MIC 2 CONTROLS | Microphone 2 output, level and EQ control |
| 3 | DECK CONTOUR | Adjust the channel fader curve and toggle reverse on/of |
| 4 | CROSSFADER CONTOUR | Adjust the curve of the crossfader |
| 5 | HEADPHONE CUE MIX | Adjust the level of cue and master heard in the headphones |
| 6 | SPLIT CUE | Turn Split cue on/of |
| 7 | CUE LEVEL | Adjust the volume of the headphone cue |
| 8 | HEADPHONE JACK | Connect your 1/4” or 1/8” headphones for cueing |

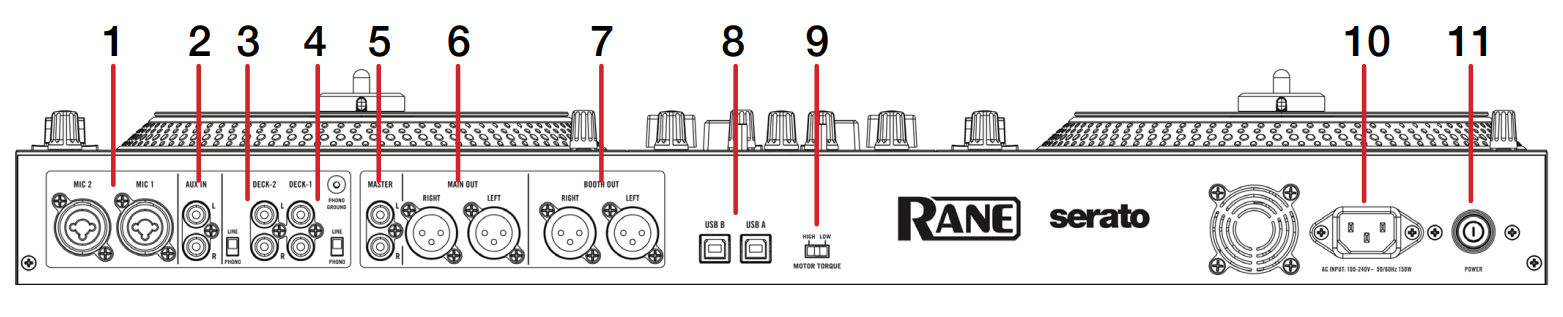

| # | ONE CONTROL | FUNCTION |
| 1 | MIC INPUT 1 & 2 | Connect Microphone input |
| 2 | AUX IN | Connect Auxiliary input via RCA |
| 3 | DECK 2 RCA INPUT | Deck 2 input and Phono/Line switch |
| 4 | DECK 1 RCA INPUT | Deck 1 input and Phono/Line switch |
| 5 | MASTER RCA OUTPUT | Master Speaker output via RCA |
| 6 | MASTER XLR OUTPUT | Master Speaker output via XLR |
| 7 | BOOTH XLR OUTPUT | Booth Speaker output via XLR |
| 8 | USB A & B | Connect USB cable to these ports from computer |
| 9 | MOTOR TORQUE | Switch the platters motor torque High/Low |
| 10 | AC IN | Connect power input |
| 11 | ON/OFF SWITCH | Press to turn device power on/of |

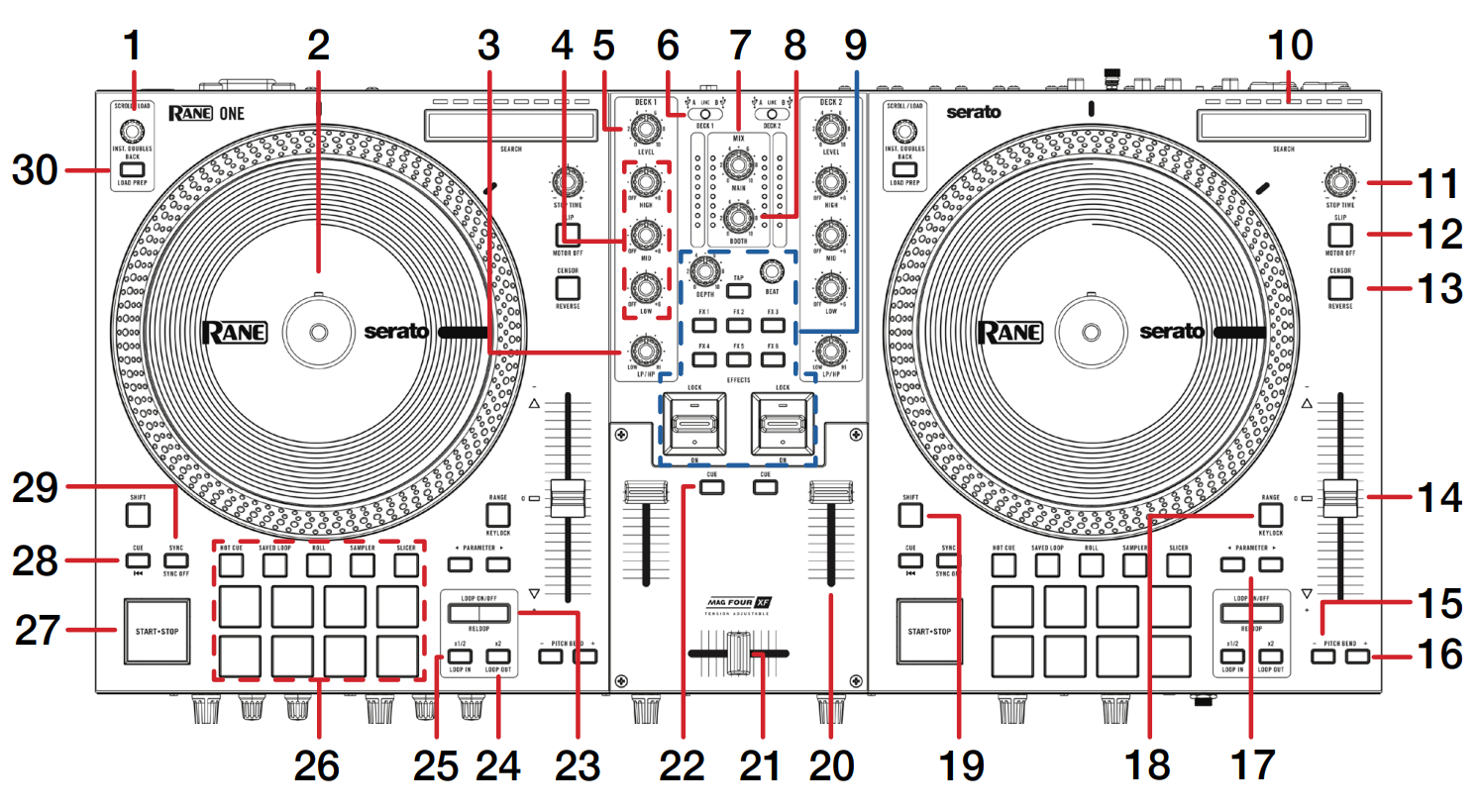

| # | ONE CONTROL | FUNCTION |
SHIFT |
| 1 | SCROLL/LOAD | Scroll library or crate list. Click to load. Double click to instant double | Fast scroll |
| 2 | JOG WHEEL | Control the waveform within Serato DJ Pro | - |
| 3 | FILTER | Channel High and Low pass filter | - |
| 4 | CHANNEL EQ | Adjust channel EQ | - |
| 5 | CHANNEL GAIN | Adjust channel gain | - |
| 6 | INPUT SELECT | Toggle between USB A & B and line input | - |
| 7 | MASTER LEVEL | Adjust the master output volume | - |
| 8 | BOOTH LEVEL | Adjust the booth output volume | - |
| 9 | FX SECTION | SEE FX SECTION BELOW FOR MORE INFORMATION | - |
| 10 | NEEDLE SEARCH | Search through the track loaded to deck | - |
| 11 | MOTOR STOP TIME | Adjust the stop time of the motorized plater | - |
| 12 | SLIP | Activate Slip mode for the corresponding deck | Turn off motorized plater |
| 13 | CENSOR | Censor the playing track | Toggle reverse |
| 14 | TEMPO SLIDER | Adjust the playback tempo of the currently loaded track | Ignore tempo slider |
| 15 | PITCH BEND - |
Pitch bend the playing track backwards (slow down) |
- |
| 16 | PITCH BEND + | Pitch bend the playing track forwards (speed up) | - |
| 17 | PARAMETERS | Adjust the pad mode parameters | Secondary parameters |
| 18 | TEMPO RANGE | Adjust the range of the tempo slider | Keylock |
| 19 | SHIFT | Used with other buttons that have shift modifier functions | - |
| 20 | CHANNEL FADER | Adjust channel volume | - |
| 21 | CROSSFADER | Fade audio between the channels | - |
| 22 | PFL CUE | Adjust the playback tempo of the currently loaded track | - |
| 23 | LOOP ON/OFF | Toggle auto loop on/of | Reloop |
| 24 | 2X | Double the loop size | Loop Out |
| 25 | 1/2X | Half the loop size | Loop In |
| 26 | PERFORMANCE PADS |
SEE PERFORMANCE PAD SECTION BELOW FOR MORE INFORMATION | - |
| 27 | START/STOP | Start or stop the motorized plater and virtual deck | Cue play |
| 28 | CUE | Set/play from a temporary cue point | Previous Track |
| 29 | SYNC | Turn Sync on for the respective deck | Sync of |
| 30 | BACK | Toggle back to Crates / Library | Load to Prepare Crate |

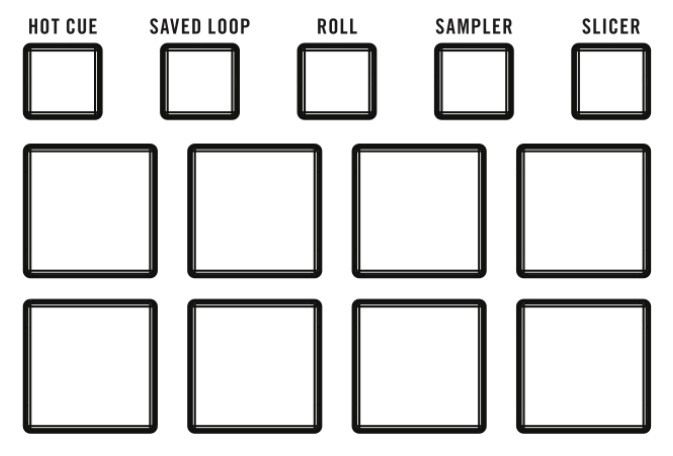

Performance Pads
The RANE ONE comes with 8 performance pads that can be used across 10 different performance pad
modes.
These consist of:
HOT CUE mode: Pads 1-8 trigger Serato DJ Pro Cue points, and if no Cue point is present on that slot/pad, pressing that pad will set a Cue point. Holding down the SHIFT button while pressing a pad will delete the Cue point from the respective pad/slot.
SAVED LOOP mode: Pads 1-8 activate the corresponding Saved Looped. Press the corresponding pad to activate the loop, press again to deactivate. Holding SHIFT and pressing a pad will jump to the start of the corresponding Saved Loop.
LOOP ROLL mode: Holding pads 1-8 activates a loop roll of varying sizes. Release the pad to exit the Loop Roll. Use the ‘PARAMETER’ buttons to change the 8 selected loop size options.
SAMPLER mode: Press pads 1-8 in this mode to trigger samples loaded into the Serato DJ Pro Sampler. Use the ‘Parameter’ buttons to move through banks A to D.
SLICER mode: In this mode, a specified range (or domain) is divided into eight equal sections, and these eight sliced sections are assigned to the respective performance pads (1-8), and can be triggered by pressing them. The domain shifts as the track duration elapses. Use the Parameter buttons to set the quantization for the slicer function to 1/8, 1/4, 1/2, or 1. Hold SHIFT and use the ‘PARAMETER’ buttons to change the size of the domain.
PITCH PLAY mode: Hold SHIFT while pressing the HOT CUE pad mode button to enter PITCH PLAY mode. PITCH PLAY mode requires the Serato Pitch ‘n Time DJ expansion pack to be activated, see the PITCH PLAY section for more information.
SAVED FLIP mode: Hold SHIFT while pressing the SAVED LOOP to enter SAVED FLIP mode. In this mode, pressing pads 1-6 triggers saved Flips, from saved Flip slots 1-6. Holding SHIFT while pressing pads 1-6 will turn the respective Flip on and pressing it again will turn the Flip off. SAVED FLIP mode requires the Serato Flip expansion pack to be activated.
AUTO LOOP mode: Hold SHIFT while pressing the ROLL mode button to enter AUTO LOOP mode. Pads 1-8 trigger an auto loop of variable sizes. These loop sizes are fixed sizes from 1/16 - 8 beat loops.
SCRATCH BANK mode: Hold SHIFT while pressing the SAMPLER mode button to enter SCRATCH BANK mode. Scratch Bank Mode allows you to assign files in your Serato DJ Pro library to a pad. When a pad is triggered, the corresponding file will be loaded to the deck.
Click the Scratch Banks panel toggle button (pictured below) in the top left-hand corner of the Serato DJ Pro user interface to reveal the Scratch Banks panel.
Here you can click and drag tracks into slots in the Scratch Banks panel, adjust preferences that are remembered when the respective Pad is triggered and loaded to a deck, and eject tracks. You can reveal those preferences (such as start point, Key lock on/off, and Repeat on/off) by toggling between Advanced and Simple view in the Scratch Banks panel, by clicking the toggle button (pictured below).
The left set of pads will load Scratch Bank assigned tracks to Deck 1, and the right set of pads will load assigned tracks to Deck 2. Holding SHIFT on your device, while pressing an assigned/loaded Pad, will reload the previously loaded track to the relevant virtual deck.
SLICER LOOP mode: Hold SHIFT while pressing the ‘SLICER’ mode button to enter SLICER LOOP mode. In this mode, a specified range (or domain) is divided into eight equal sections, and these eight sliced sections are assigned to the respective performance pads (1-8). However, unlike SLICER mode, the domain does not shift and is a static ‘loop’. Press pads 1-8 to trigger the respective ‘slice’. Use the Parameter buttons to set the quantization for the slicer function to 1/8, 1/4, 1/2, or 1. Hold SHIFT and use the ‘PARAMETER’ buttons to change the size of the looped domain.
DJ-FX
The FX panel button is displayed in the top left area of the main Serato DJ Pro screen, click on this to toggle the DJ-FX panel.
With the DJ-FX panel open, you have control of two DJ-FX units, and if your hardware supports it, Channel FX, which can be applied to tracks played through your connected Serato DJ-hardware.
Both DJ-FX & Channel FX can be controlled with your mouse, by using dedicated controls on your hardware (where available), or by MIDI mapping controls to the respective software functions.
Learn more about how to use DJ-FX & Channel FX:

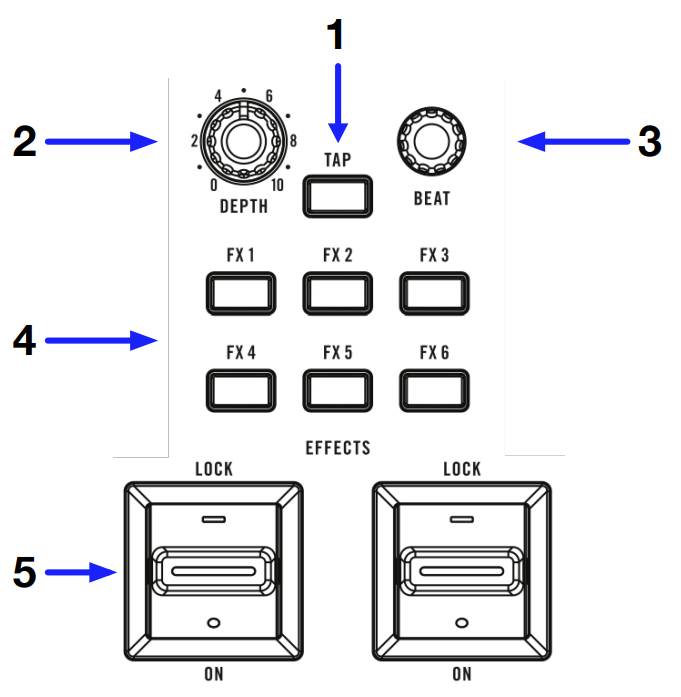

| # | ONE FX CONTROL | FX FUNCTION |
| 1 | TAP |
Tap to assign manual BPM value to the DJFX Hold the TAP button to go back to the auto BPM value |
| 2 | DEPTH | Turn to increase Flex FX depth |
| 3 | BEAT | Change the Beat value of the FX |
| 4 | FX SELECT |
Press to arm the corresponding FX Press multiple at the same time to arm more than one |
| 5 | EFFECT PADDLES | Push up to latch effects or pull down and hold for momentary effects |
Pitch Play
There are 3 key ranges to choose from, and the following tables show the pitched key ranges (in Semitones) while using the 8 performance pads in Pitch Play mode.
The root keypad (0) is always lit white, which will play the cue point at its regular pitch.
Use the Parameter Left & Right buttons to move the Key Range up or down.
In Pitch Play mode, pressing a pad will pitch the currently selected cue point up or down the following ranges:
Up Range: (Up 7 Semitones)
| +4 | +5 | +6 | +7 |
| 0 | +1 | +2 | +3 |
Middle Range: (Up 3/Down 4 Semitones)
| 0 | +1 | +2 | +3 |
| -4 | -3 | -2 | -1 |
Down Range: (Down 7 Semitones)
| -3 | -2 | -1 | 0 |
| -7 | -6 | -5 | -4 |
When Pitch Play mode is first enabled, the middle range is selected. Pitch Play mode will default back to the middle range if a new track is loaded. The selected range is recalled if another pad mode is selected, then
the user switches back to Pitch Play mode.
Pitch Play can only pitch one Cue point at a time. To change the selected Cue, hold the SHIFT button and press a performance pad where the cue point you want to select would be (as shown in the HOT CUE performance pad mode).
While holding SHIFT, press the corresponding performance pad for:
| Cue 1 | Cue 2 | Cue 3 | Cue 4 |
| Cue 5 | Cue 6 | Cue 7 | Cue 8 |
The selected cue point defaults to Cue Point 1 on track load, even if instant doubled. A new cue point will be created if a pad with no cue point is selected. Deleting a cue point is not possible in Pitch Play mode.
NOTE: Pitch Play mode is available once the Pitch 'n Time DJ Expansion Pack has been activated in the Expansions window, under the My Account drop-down. Then ensure Pitch 'n Time DJ is checked in the Expansion Pack tab of the Setup screen.
DVS
When a Serato DVS license is purchased and activated, this paid upgrade to Serato DVS device allows you to use connected turntables, media players or CD players to control Serato DJ Pro using NoiseMap™ Control Tone.
NOTE: Serato DVS is only available once the Serato DVS expansion pack has been activated in the Expansions window, under the My Account drop-down. Make sure Vinyl / CDJ Control is then checked in the Expansion Packs tab of the Setup screen.
Find our more about Serato DVS:
Beat Jump
To activate Beat Jump, open the Setup screen, navigate to the DJ preferences tab and turn on “Show Beat Jump Controls”.
When you close the Setup screen, you will see Beat Jump controls underneath the existing Auto Loop values on each deck. Checking this box will turn on Beat Jump features in the deck area and let you control Beat Jump from your supported Serato DJ Pro hardware.
When the Beat Jump option is enabled, performance pad modes AUTO LOOP or ROLL mode (where applicable) will use the bottom row of 4 pads (pads 5-8) as Beat Jump controls. This is designed to mirror the change in the deck Auto Loop area (from 8 Auto Loop sizes to 4 Auto Loop sizes + Beat Jump controls).
MIDI
The MIDI feature in Serato DJ Pro allows you to remap Serato DJ Pro software functions to your primary Serato controller, interface or mixer. You can also assign controls to a secondary MIDI controller to further enhance your performance.
For more information on MIDI mapping with Serato DJ Pro, click here.

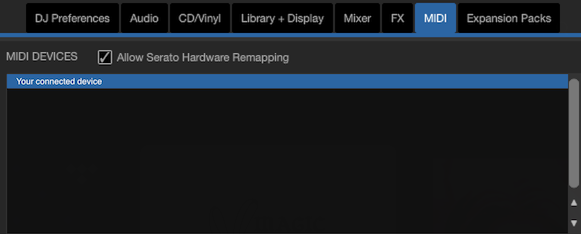

To remap your supported Serato device, open the SETUP screen and click the MIDI tab. If your Serato device supports hardware remapping, it will appear in the MIDI DEVICES list.
Select your connected device from the MIDI DEVICES list and check the Allow Serato Hardware Remapping option.
Once checked, the MIDI assign button at the top of the main Serato DJ Pro interface will become available for you to start remapping.
You can save, edit or delete MIDI presets in the MIDI tab of the SETUP screen. Clicking Restore Defaults will erase any custom mappings for all connected devices and revert their functions back to default.
Help
Show Tooltips
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Show Tooltips to enable Tooltips. Tooltips provide a handy way to learn the various features of Serato DJ Pro.
Move the mouse over a section of the software to bring up a context-sensitive tooltip that describes the feature.
Click on the Help button again to turn off Tooltips.
Show Shortcut Keys
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then click Show Shortcut Keys to launch a pop-up window displaying shortcut keyboard combinations.
These shortcuts can help you perform various actions quickly, such as triggering specific deck functions, controlling playback, or navigating the library.
Watch Tutorials
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Watch Tutorials to launch
your default internet browser and watch tutorials to help you get familiar with Serato DJ Pro.
Get Support
Click on the Help button in the upper right-hand corner of Serato DJ Pro, then Get Support to launch your default internet browser and navigate to the Serato DJ Pro knowledge base, where you can find helpful articles and guides on Serato DJ Pro. Alternatively, type keywords in the Search Help box to search the Serato DJ Pro knowledge base for specific, related topics.
